The Pinball Resource has recently reproduced the Upper Black Hole plastic set. Since most customers ask when ordering plastics sets what other parts do you have for this game, we have put up a webpage to answer that question. Listed below are some of the common parts people request that we currently have in stock for Black Hole! A more complete list of parts can be found in the documentation listed below!

Playfield Parts

Documentation

Cabinet Parts

Lamps

Circuit Boards

Coils

Displays




Playfield Parts

Part

Description

Part Number

Price

Repro Upper Playfield Plastic Set



Click on thumbnail picture for plastic set pictures. Full plastic set has protective covering in the picture(thus a little fuzzy)! Plastic set will be shipped with protective covering on both sides that needs to be removed prior to installing!

GTB-21229+

$95.78ea

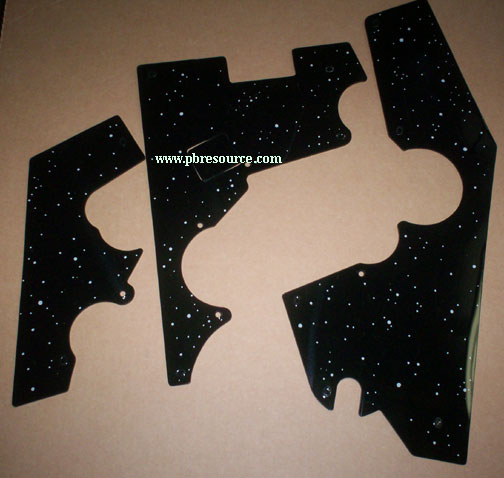

Repro Lower Playfield Plastic Set

Click on thumbnail picture for plastic set pictures. Full plastic set has protective covering in the picture(thus a little fuzzy)! Plastic set will be shipped with protective covering on both sides that needs to be removed prior to installing!

GTB-21304+

$36.80ea





Rubber Ring Kit

Our Rubber Ring Kits replaces all of the rubber on all of the playfield that the ball comes into contact with. This include Flipper Rubber and shooter rod plunger tips.

Rubber Ring Kit Black Hole

$21.13ea

Clear Playfield Posts 1”

There are 52 of these faceted posts used in the game!

GTB-C-11561C

$0.50ea

Clear Playfield Posts 1-3/16”

There are 7 of these faceted posts used in the game!

GTB-C-11562C

$0.50ea

White Split Playfield Posts

Post Cap #A-14488
Post Base #A14487

There are 3 #14488 Caps used and 3 #14487 Bases used on this game!


GTB-A14488
GTB-A14487

$0.53ea
$0.53ea

Siamese White Playfield Posts 1”

There are 5 used in this game!

GTB-C17492

Out Of Stock

Sponge Rubber Washers

Used under the playfield window.
There are 10 used on this game.
(Also used on Haunted House)

GTB-21219

$0.40ea

Window Screw

Used to attach the playfield window.
There are 10 used on this game.
(Also used on Haunted House)

GTB-FA56

$0.50ea

Pop Bumper Caps
There are 6 used on this game.

GTB-21298

$4.00ea

Upper Playfield Drop Targets
Sold in a set only!

Black Hole Upper Playfield Drop Target Set

$36.00

Lower Playfield Drop Targets

3 White Drop Targets with Gold Stars
4 Yellow Drop Targets with Gold Stars

Black Hole Lower Playfield Drop Target Set

Targets Offered
Individually

$28.00



$4.00ea


Blue Pop Bumper Bodies
There are 6 used on this game.

GTB-26860B

$4.00ea

Blue Pop Bumper Skirts

There are 6 used on this game.

Listed in manual as C-10433

GTB-A1218B

$0.85ea

Blue Pop Bumper Bases

There are 6 used on this game.

GTB-B10432B

$1.10ea


Pop Bumper Mylar Platter
There are 6 used on this game(Non-Adhesive)

GTB-B8246

$0.75ea


GTB-22118 Shown

Gate Shield & Wireform

There are 2 of each used on this game (1 X Main Playfield 1 X Lower Playfield)

Incorect Part number on lower playfield in manual A-9869

Wireform A4706 Replaced by 22118

Ball Gate Shield
GTB-A4869

Wireform
GTB-22118


Not Currently Available


Not Currently Available

Roll Under Spring

GTB-A14236

$0.68ea

Ball Gate Shield & Wireform
There are 1 of each used on this game (Upper Playfield)

Ball Gate Shield
GTB-A17300

Wireform
GTB-A17299


$3.17ea


$2.27ea


GTB-A19645 Shown


GTB-A19646 Shown

Ball Gate Right
There are 1 Right and 1 Left of each used on this game(Main Playfield)

Right Ball Gate-
GTB-A19645

Left Ball Gate-GTB-A19646


$6.25ea


$7.81ea


Arch Rod End Post & Post Cap & Arch Rod
There are 1 B19873, 1 B19874, and 2 B19875 used on this game

Arch Rod End Post
GTB-B19873

Post Caps
GTB-B19874

Post Arch Rod
(Not Shown)
GTB-B19875


$2.00ea


$1.20ea


$1.00ea


3” Jumbo Flipper Plastic
There are 6 used on this game

GTB-A13150
Same as Part
C13150

$1.95ea


Flipper Rebuild Kit

Each kit rebuilds 2 flippers. Each kit includes:
2 Plungers & Tips
2 Flipper Springs
2 Spring Washer
2 Coil Stops
2 Flipper Bearing -T
2 Flipper Bearing -B
2 Sleeves
2 EOS Switches
4 Screws

KT-GFLIP03M

You would need 3 Kits to Rebuild all of the flippers on the game!

$33.10ea



Kicking Target Assembly
There are 1 used on this game

Commonly requested parts for above assembly
Plastic Target Face #20210P

GTB-20213





GTB-20210P

Out Of Stock





$1.22ea

Kicker Unit
There are 1 used on the upper playfield.

GTB-21178

$29.70

Yellow Standup Targets
There are 4 used on the upper playfield.


Listed in Manual as
B20867




GTB-25460Y

$8.60ea

Mini Post Screw


There are 10 used on the game!.

GTB-A14792

$1.75ea


Post Screw

GTB-20196

$1.00ea


Acorn Post Speed Nut

There are 39 used on this game!

GTB-SC125

$0.20ea

Pinballs
3 Used on this game.

BALL116

$1.60ea

White Tent Style Rollovers Guides
2 Used on this game.

GTB-C15647W

$2.50ea

White Medium Rollovers Guides
3 A9396 Used on this game.


White Rollover Guides only offered in double sided – cut off one side to make single sided!

GTB-A9396W


$1.39ea



White Short Rollovers Guides

1 A9394 Used On this Game


*NOTE: Different than Original – No Ridges on edge and a diffusion pattern was added to the bottom


White Rollover Guides only offered in double sided – cut off one side to make single sided!

GTB-A9394W

$1.39ea

Swinging Target

Listed in manual as A20338.

GTB-24494

$6.60ea

Swinging Target Bracket

GTB-21011

$3.00ea

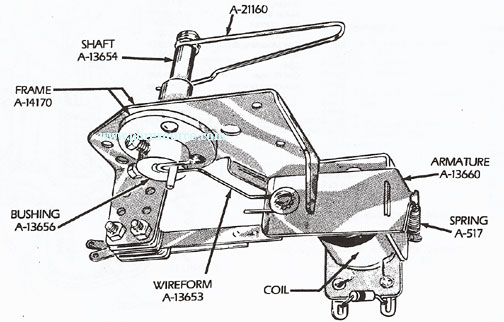

Ball Gate Parts

Click on thumbnail to see part numbers! Complete assembly not offered!

21160 Gate
A13654 Shaft
A14170 Frame
A13656 Bushing
A13653 Wireform
A13660 Armature
A517 Spring)

GTB-21160
GTB-A13654
GTB-A14170
GTB-A13656
GTB-A13653
GTB-A13660
GTB-A517

$2.10ea
$2.10ea
$8.00ea
$3.38ea
$2.65ea
$2.64ea
$0.66ea

Switch Assembly

Contains parts:
B18348 Wire & Fulcrum
B18892 Switch
A18349 Bracket

GTB-A18688

$8.70ea

Contact Kicker

2 Used on this game, one on the upper and one on the lower playfield! Sorry, we don't have the other side(A-21366)!

GTB-A15836

$8.80ea

Plastic Tubing


GTB-20645

$0.40ea

Ball Deflector

2 Used on this game

GTB-21158

$3.30ea

Ball Snubber

GTB-A16038

$2.10ea

White Hole Base Plate and Switch Arm

C15707 – Base Plate
C15708 -Switch Arm

GTB-C15707W

GTB-C15708W

$1.35a



$1.35ea

Metal Hole Liner

GTB-A11151

$1.87ea

Ball Guide Rail

3 Used on this game

GTB-A17106

$1.96ea

High-Current Slingshot Switch Kit

We offer a high current stand-up switch for the slingshots that offers a reversible bracket. This replaces 22224, 22225, B-17842, and B-17843. Click on the thumbnail for how to assemble!

GTB-22224+


$5.00ea


GTB-21352 Shown

Pop Bumper Switches

Game uses 5 X 21352 and 1 X 21359 Pop Bumper Switches.

GTB-21352

GTB-21359

$8.07ea

$8.07ea

Rollover Switches

Top #1
Top #2
Top #3
Right Side
Right Return
Black Hole
Outhole
Track(Lower Playfield)
Return(Lower Playfield)

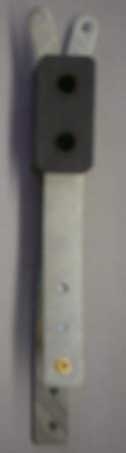

GTB-B18892

$4.35ea

Drop Target Switches

Left #5 “K”
Right #4 “E”
Left #3 (Lower Playfield)
Right #3 (Lower Playfield)
Left #4 (Lower Playfield)

GTB-B18093

$4.80ea

Drop Target Switches

Right #1 “H”
Left #1 “B”
Right #2 “O”
Left #2 “L”
Left #1 (Lower Playfield)
Right #1 (Lower Playfield)

GTB-B18094

$4.80ea

Drop Target Switches

Left #4 “C”
Right #3 “L”
Left #3 “A”
Left #2 (Lower Playfield)
Right #2 (Lower Playfield)

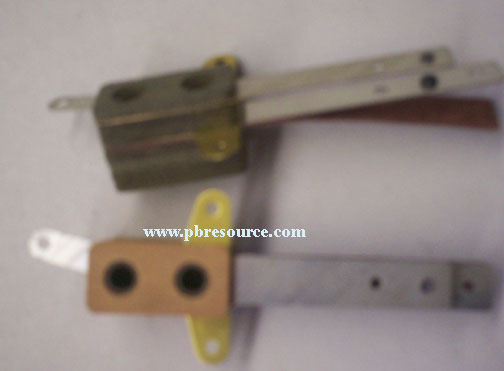

GTB-B18095

$4.80ea

Left Spinning Target Switch

GTB-B18627

$6.30ea

Ball Hole Kicker Switches

Upper & Lower Playfield

GTB-B19857

$3.65ea

Rollunder Swithes

Upper & Lower Playfield

GTB-21137

$5.20ea

Tilt Switch Playboard Swith

GTB-B9141

Out of Stock

10 Point Switches

Target Banks (5)

GTB-B18096

$4.20ea

Kicking Target Switch

GTB-20227

$4.20ea

Documentation!

Part

Description

Part Number

Price

Owners Manual/Schematic

Spiral Bound Copy.

GM-668

$20.00ea



1982 Gottlieb® Parts Catalog

Spiral Bound Copy.
Covers games from System/1 (Cleopatra) Through System/80 ( Rocky)

GTB-CAT-1982

$20.00ea


Gottlieb® Star Series 80 Service Manual

Spiral Bound Copy that also covers System/80 A & B with updates included!

GTB-S/80-MAN

$12.00ea

Cabinet Parts

Knocker Assembly

Listed in manual
as MA-12

GTB-26782

$26.91ea


Flipper Button Cabinet Switch

2 used on this game.

GTB-B17838+

$6.28ea


Flipper Buttons and Clear Straps


Metal Strap

Flipper Button & Start Button
3 Flipper Buttons used
Red #B16680
3 White Start Bushing
#C13900

3 Clear Plastic Straps A13898+(Clear allows you to light the flipper buttons from inside the cabinet) These have protective covering on them that you need to peel off before installing.
or
3 Metal Straps A13898

GTB-B16680
GTB-C13900
GTB-A13898+
GTB-A13898

$1.69ea
$1.45ea
$0.98ea
$1.68ea








Ball Shooter Parts
(#B-8835)

Ball Shooter (Knob & Shaft) #A8833+
Barrel Spring #A347
Shooter Spring #A348
Trimplate #A8831+
Eyelet #A17596
Plate #A8829
Housing(Sleeve) #B8834
Retaining Ring #5133-37
Plunger Tip #RIN-PT
(Also included in Rubber Ring Kit)


Complete Assembly #B8835

GTB-A8833+
GTB-A347
GTB-A348
GTB-A8831+
GTB-A17596
GTB-A8829
GTB-B8834
HWD-CRING38
RIN-PT








GTB-B8835

$11.18ea
$0.60ea
$0.52ea
$9.44ea
$0.25ea
$2.08ea
$2.10ea
$0.14ea
$0.30ea









$30.45ea


Legs
4 X 27” Legs

LEG-27CA

$13.40pl

Leg Levelers
4 3” used on game

LEG3

$0.90ea

Leg Bolts
8 Leg bolts used on game

LEGBOLT

$0.58ea


Legs Tee
4 Used on this game

LEG-TEE

$1.29ea


Replacement Silver Backglass Trim – Top & Sides
3 Used on this game
Each piece is 26” Long, you cut to length.
Comes with protective peel-off film.

GTB-A19573-4

$3.06ea

Coin Door Lock 7/8"

LOCK

$4.00ea

Backbox Lock 7/8"

LOCK

$4.00ea

Coin Door Decal


Click on the Thumbnail to see other Gottlieb® Front Door Decals we offer!

GTB-DL-S/80-2


$4.50ea

Coin Door Return Flap

GTB-A15098W

$3.25ea


Red Coin Entrance Plate & Insert

Red Insert
#C16561 -Dummy
#C16562 - $0.10
#C16564 $0.05
#C16566+ -$0.25
#C16568 SBA
#C16563 – 5 Cents Australia


Labels

#A17657 2X$0.25 3 Plays
#A18320-1 1 Quarter 1 Play-2 Quarters 3 Plays

GTB-C16561
GTB-C16562
GTB-C16563
GTB-C16564
GTB-C16566+
GTB-C16568




GTB-A17657(Out Of Stock)
GTB-A18320-1(Out of Stock)


Out Of Stock
Out of Stock
$2.50ea
$2.50ea
$2.50ea
Out Of Stock




Out Of Stock
Out Of Stock


Replacement Power Cord
14' Foot

CORDSET-14

$6.35ea

Lightbox Mounting Bracket
4 Used on this game

GTB-A19916

Out of Stock

Fuse Block

FUS-HLDR

Out Of Stock

Instruction / Score Card Covers

#A16143 -Instruction Card
(*Note – Instruction covers are Gottlieb® NOS, but do have a Yellow tint to them!)


#A16142- Score Card

GTB-A16143
GTB-A16142

$0.85ea
$0.55ea

Tilt Parts

Click on the Thumbnail for a larger picture!

Housing C10336
Switch B17543
Wire A15164
Push Nut PS-0904032
Strike Plate A358
Tilt Bob A356
Clip A14653


Tilt Ball is the same size as the one used in the game 1-1/16”

GTB-C10336
GTB-B17543
GTB-A15164
GTB-PS0904032
GTB-A358
GTB-A356
GTB-A14653

Out Of Stock
$3.75ea
$0.88ea
$0.25ea

$1.50ea
$2.17ea
$0.91ea

Lamps


#47 Lamps

Sold by the box, 10 to a box. Used on playfield and in backbox
(A better solution than #44 Lamps)

LAM0047A

$1.50PB

#313 Lamps

Sold by the box, 10 to a box.

LAM0313

$4.50PB

#455 Lamps

Sold by the box, 10 to a box.

LAM0455A

$3.30PB

System/80 Circuit Boards


A1 – Control Board System 80

Does not include ROMS!

Reconditioned by certified Gottlieb Technicians.

GTB-MA291

Out Of Stock

A2 – Power Supply

GTB-MA114

Out Of Stock

A3 – Driver Board
Same for all System 80 games!

GTB-MA295

Out Of Stock

A11– Aux Lamp Driver Board

GTB-MA210

$59.00ea

A7– Sound/Speech Power Supply

GTB-MA188

Out Of Stock

A8– Sys/80 Pop Bumper Board

GTB-A8

Out Of Stock

A11– System 80 Aux Lamp Driver Board

GTB-MA210

$59.00ea

System/80 Common 10.00s
*Note-All Of Our Coils Comes With Sleeves

Coil Usage

Kicking Rubbers(6)
Pop Bummpers(6)

(Wrapper Color Yellow)

GTB-A1496

$10.00ea

Coil Usage

Ball Lift Kicker
(Wrapper Color Red)

GTB-A4893

$10.00ea

Coil Usage

Kicking Target
(Wrapper Color Blue)

GTB-A5194

$10.00ea

Coil Usage

Outhole
Ball Gates(Upper and Lower Playfields)
Hole Kickers(Upper and Lower Playfields)

(Wrapper Color Green)

GTB-A16570

$10.00ea

Coil Usage

Wireform Ball Gate

GTB-A17564

$10.00ea

Coil Usage

Flippers (6)
(Wrapper Color Yellow)

GTB-A17875

$15.00ea

Coil Usage

5 POS. Bank
(Wrapper Color White)

GTB-A17891

$15.00ea

Coil Usage

3 POS. Bank
(Wrapper Color Red)

GTB-A18102

$15.00ea

Coil Usage

4 POS. Bank (Upper & Lower Playfields)
(Wrapper Color Orange)

GTB-A18318

$15.00ea

Relay Coil Usage

Game Over
Tilt
Upper and Lower Relays

(Wrapper Color Orange)

GTB-A16890

$10.00ea

Displays

A4– 6 Digit Display

These are reconditioned!

GTB-MA116

Out Of Stock

Gottlieb® System/1 – System/80 6 and 7 Digit Blue Display Covers

GTB-21399W

Out of Stock

A5– 4 Digit Display - Reconditioned

GTB-MA115

$45.00ea

Top

Home Page

EMAIL PBR

How To Order

FAQ

©2004-2017 The Pinball Resource
