Williams Flipper Rebuild Kit KT-WFLIP04 Detailed Listing of parts with non-kitted parts.

Excluded: "Closing Flipper Games"(Zipper Flippers) like Daffie, Doozie, HayBurners II, Student Prince

Parts Found in the Mini Kit
KT-WFLIP04M

Parts Found in the Complete Kit
KT-WFLIP04

Parts Not Found in Kit
KT-WFLIP04
or
KT-WFLIP04M

Williams Mini Kit Parts KT-WFLIP-04M

Flipper Plunger and Link Assembly

2 Flipper Plunger and Links Assemblies A-6939-1 included in Kit KT-WFLIP-04M

*Note: Center of Hole to Center of Hole on plunger link is 3/4”.

WLL-A6939-1+ $5.03ea

Compression Return Spring

2 Compression Return Springs
10-135 included in Kit
KT-WFLIP-04M

WLL-10-135 $0.60ea

Flipper Bushing

2 Substitute Flipper Bushings
3A-6014 included in Kit
KT-WFLIP-04M

GTB-A2408 $1.72ea

Enhanced Coil Stop

2 Substitute Enhanced Coil Stop Assemblies A4708 included in Kit KT-WFLIP-04M

WLL-A8143+ $4.88ea

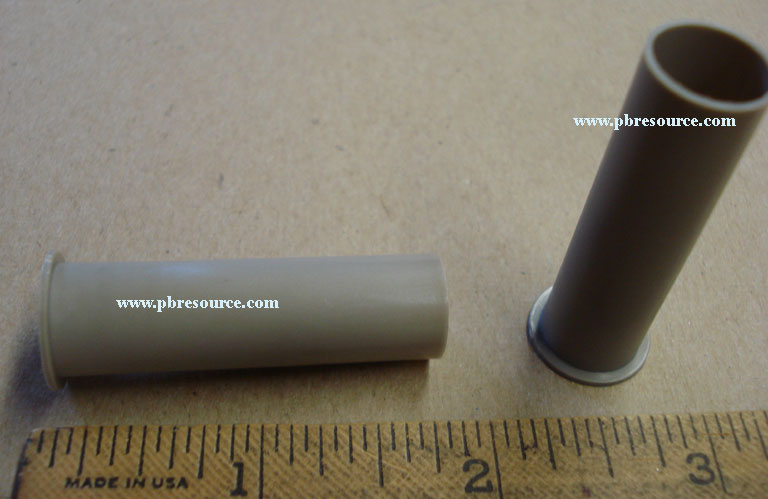

Coil Sleeve

2 Coil Sleeves included in Kit
KT-WFLIP-04M

SLEEVE-WMS-STD $0.75ea

EOS Switch
(High Current)

2 End Of Stoke(EOS) Switches
180-5018(Substitute for SW-10A-8) included in Kit KT-WFLIP-04M

DE-180-5018+ $5.74ea

Screws

4 Screws 6-32-1/4 included in Kit KT-WFLIP-04M

HDW-6-32-1/4 $0.20ea

7/32” C-Ring

2 7/32” C-Ring 12A-6627 included in Kit KT-WFLIP-04M

HDW-CRING732 $0.15ea

Williams Complete Kit Parts KT-WFLIP-04
In Addition to the parts from the Mini kit listed above, the complete kit also includes the following

Right Hand Side Lever Assembly

1 Enhanced Right Hand Side Lever Assembly A-4962R included in Kit KT-WFLIP-04

Includes 2 FA90 10-32 X 3/8” Socket Head Cap Screws -These screws are larger than the originals and will not work on original lever arms.

WLL-A4962R-E $8.85ea

Left Hand Side Lever Assembly

1 Enhanced Left Hand Side Lever Assembly A-4962L included in Kit KT-WFLIP-04

Includes 2 FA90 10-32 X 3/8” Socket Head Cap Screws -These screws are larger than the originals and will not work on original lever arms.

WLL-A4962L-E $8.85ea

Allen Wrench

For the 4 FA90 10-32 X 3/8” Socket Head Cap Screws listed above included in Kit
KT-WFLIP-04


Parts NOT Found in Kit
KT-WFLIP-04

Flipper Coils

Varies by game – see your game Manual/Schematic for which ones are used in your game.

Coils we offer are listed here.


Flipper Coil Bracket

Limited stock of Used Flipper Coil Bracket
1A-600

WLL-1A600 Out of Stock

EOS Form A Switch

If your game has more than two flippers, the Upper Flippers are probably powered by a EOS FORM A Switch. Look at your game and see if your lower flippers have a stacked switch like A-8160.

The stacked switch is a sandwich of the DE-180-5018+ EOS switch listed above and this EOS FORM A Switch SW-1A-183.

The SW-1A-183 is a high current switch like the DE-180-5018+.


WLL-SW1A-183+ $3.10ea

Lane Change Switch

If your game has a stacked EOS and the second EOS switch is low current switch, its probably a Lane Change Switch. This is the switch the moves the light for the A,B,C Lanes when the flipper button is pushed. This is used in assemblies like A8087-L and A8087-R.


The stacked switch is a sandwich of the DE-180-5018+ EOS switch listed above and this EOS Lane Change Switch SW1A-150.





WLL-SW1A-150+ $2.79ea

Flipper Link

If you need the flipper link only and not the Plunger/Link assembly offered in the kit, we also offer the link by itself
01-6925-1. This is a substitute for link 1A4603-1.

*Note: Center of Hole to Center of Hole on plunger link is 3/4”.

If you need a new Roll Pin to install this link HDW-ROLL-18


W-01-6925-1+ $1.95ea



HDW-ROLL-18 $0.25ea


Flipper Plastics and Shoe and Shaft Assemblies


Can be seen Here


Flipper Rubber


Can be seen Here
