Cabinet Switches for Flipper/Credit/Start/Replay Buttons

Common Single Contact Cabinet Switches

Common Double Contact Cabinet Switches

Game Specific Cabinet Switches

Common Single Contact Cabinet Switches

Switch

Description

Part/Price

Single Contact Flipper Button
High Current Switch

Used on Bally/Williams Games
Good for cartridge type buttons like
WLL-A16883X.

If opposite side is double sided, pair with
SW-1010A-13 listed below

SW-10A-48

WLL-SW10A-48 $13.42ea

Single Contact Flipper Button
High Current Switch

Originally a Gottlieb® part but a great substitute for Williams/Bally/Chicago Coin/Old Stern games

B-17838

Common substitute for
Williams Flipper Button Switch SW1A-70
Williams Start Button Switch SW1A-70

Gottlieb
® Flipper Button Switch A-9538
Gottlieb
® Flipper Button Switch B-12462

Chicago Coin/Old Stern SW-474

Good for Flipper Buttons
GTB-B16680, BLY-C904R,
and GamePlan games

GTB-B17838+ $8.92ea






Single Contact Replay/Start/Credit Switch

Used on most Gottlieb® Solid State games

B-18092

GTB-B18092 $3.75ea

Single Contact Flipper Cabinet Switch and Button Holder

Used on Gottlieb Video Games

23503

GTB-23503 $2.00ea

Single Contact Flipper Button
High Current Switch

Early Data East / Sega Flipper Button Switch

180-5048-00

DE-180-504800 -Out of stock – use WLL-SW10A-48 listed above

Single Palinery Contact Flipper Button


Sega/Stern Flipper Button Switch

500-6889-01

Stern Replacement for
500-6889-00
180-5160-00

DE-500-688901 $20.01

Single Contact Start/Credit/Replay Switch

Used on Data East Games

180-5016-00

DE-180-501600 Out of Stock

Single Contact Flipper Button
High Current Switch

Used on Chicago Coin/Old Stern games

SW-474

STN-SW-474 -Out of stock – use B-17838 listed above

Single Contact Credit/Start/Replay Switch

Used on Chicago Coin / Old Stern

SW-469

STN-SW469 Out of Stock

Single Contact Reset and Flipper Cabinet Switch and Bracket Assembly

Used on Brunswick games like Aspen and Alive

55-101448-000

K-55101448000 $6.75ea

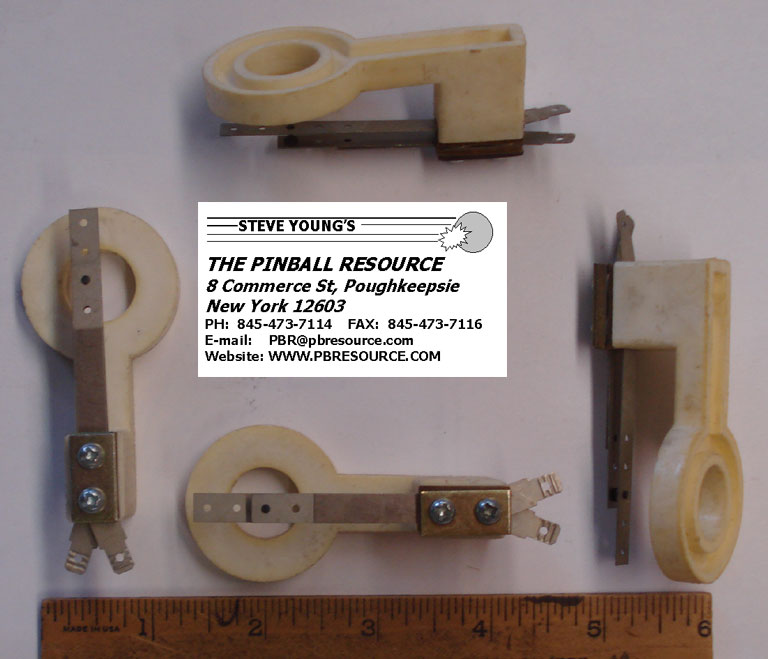

Single Contact Flipper Cabinet Switch and Button Holder

Used on early 1970's Brunswick/Briarwood games

55-101241-000

K-55101241000 $2.00ea

Common Double Contact Cabinet Switches

Switch

Description

Price

Double Contact Flipper Button
Both High Current Switches

Used on Bally/Williams Games
If opposite side is single sided, pair with
SW-10A-48 listed above

SW-1010A-13

WLL-SW1010A13 $19.06ea

Double Contact Flipper Button
One Flipper High Current Switch

Used on Williams E/M Games for the Left Flipper if a double contact switch is required.
The Inner Switch is to complete the lock relay and is not designed for flipper coil current.

If opposite side is single sided, pair with
B-17838 listed above

SW-11A-25

WLL-SW11A-25 $8.40ea


A-9360 Shown


A-9361

Double Contact Flipper Button
Both High Current Switches

Used on Gottlieb® E/M Games(Late 50-Late 60's)

Left Side A-9360
Right Side A-9361

Substitute for
Gottlieb
® A-10122, A-10123, B-8553, 55R, and 55L.

GTB-A9360+ $7.10ea

GTB-A9361+ $7.10ea

Double Contact High Current Flipper Button Switch
One Flipper High Current Switch

Used on Data East/Sega/Stern Games


180-5029-00

DE-180-502900 $11.36ea

Double Paliney Contact Flipper Button Switch

Used on Sega/Stern Games

500-6890-01

Stern replacement for
500-6890-00
180-5164-00

DE-500-689001 Out of Stock

Game Specific Cabinet Switches


A-15058 Shown


A-15060 Shown

Williams The Getaway High Speed II & The Addams Family
Flipper Button Cabinet Switches


Single Contact Switch A-15058
Double Contact Switch A-15060

The Getaway take:
1 X A15058
1 X A15060

Addams Family takes:
2 X A15060

WLL-A15058E $6.37ea

WLL-A15060E $8.93ea

Data East Microswitch
Flipper Button Cabinet Switches


Originally used on games like:
Phantom of the Opera
Back to the Future
The Simpsons
Checkpoint
Teenage Mutant Ninja Turtles
Used in assembly 500-5251-00 / 500-5251-01
(Later changed to a single low contact leaf switch 180-5048-01)

180-5067-00

Data East replacement for
180-5065-00

DE-180-506700 $5.26ea

Gottlieb Double Contact Flipper Button
Both High Current Switches
Left Side Switch

Used on Gottlieb® Solid State games:
Bone Busters,
Deadly Weapon,
Excalibur,
Lights, Camera, Action,
Title Fight

26054

GTB-26054+ $13.38ea

Gottlieb Double Contact Flipper Button
Both High Current Switches
Right Side Switch

Used on Gottlieb® Solid State games:
Bad Girls,
Excalibur


26055

GTB-26055 $13.38ea

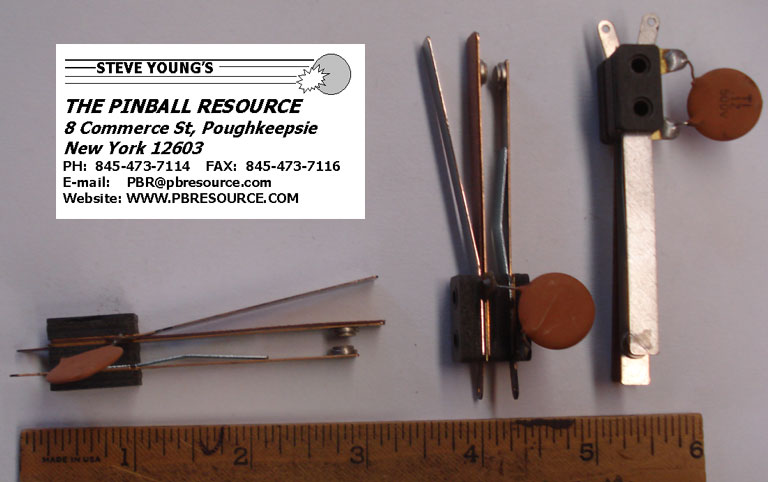

Gottlieb Single Contact Flipper Button
High Current
Left Side Switch

Used on Gottlieb® Solid State games:
Bad Girls,
Big House,
Cactus Jack,
Class of 1812,
Hot Shots,
Silver Slugger,
Vegas


26075

GTB-26075+ $9.32ea

Gottlieb Single Contact Flipper Button
High Current
Right Side Switch

Used on Gottlieb® Solid State games:
Bone Busters(Top),
Cactus Jack,
Class of 1812,
Silver Slugger,
Vegas


26423

GTB-26423+ $9.920ea

Gottlieb Double Contact Flipper Button
Both High Current Switches
Right Side Switch

Used on Gottlieb® Solid State games:
Big House,
Title Fight


26424

GTB-26424+ $13.38ea

Gottlieb Single Contact Flipper Button
High Current
Right Side Switch

Used on Gottlieb® Solid State games:
Bone Busters(Bottom),
Lights, Camera, Action



26498

GTB-26498 $8.00ea

Gottlieb Single Contact Flipper Button
High Current
Left Side Switch

Used on Gottlieb® Solid State games:
Surf 'N Safari



28570

GTB-28570+ $6.41ea

Gottlieb Single Contact Flipper Button
High Current
Right Side Switch

Used on Gottlieb® Solid State games:
Surf 'N Safari



28571

GTB-28571+ $6.41ea

Gottlieb Double Contact Flipper Button
Both High Current Switches
Right Side Switch

Used on Gottlieb® Solid State games:
Cue Ball Wizard
Freddy
Gladiator
Operation Thunder
Rescue 911
Shaq Attack!
Stargate
Tee'D Off
WipeOut!


28668
(For switch with bracket see 28693 below)

GTB-28668+ $9.87ea

Gottlieb Single Contact Flipper Button
High Current
Left Side Switch

Used on Gottlieb® Solid State games:
Cue Ball Wizard
Mario Andretti
Operation Thunder
Rescue 911
Stargate
Strikes 'N Spares
Super Mario Bros Mushroom World
Tee'D Off
Water World



28690
(For switch with bracket see 28691 below)

GTB-28690+ $7.56ea


Gottlieb Single Contact with Bracket
High Current Flipper Button
Left Side Switch

Used on Gottlieb® Solid State games:
Cue Ball Wizard,
Mario Andretti,
Operation Thunder,
Rescue 911,
Stargate,
Strikes 'N Spares,
Super Mario Bros Mushroom World,
Tee'D Off,
Water World



28691
(For switch without bracket see 28690 above)

GTB-28691+ $10.59ea

Gottlieb Double Contact with Bracket Flipper Button
Both High Current Switches
Right Side Switch

Used on Gottlieb® Solid State games:
Cue Ball Wizard,
Freddy,
Gladiator,
Operation Thunder,
Rescue 911,
Shaq Attack,
Stargate,
Tee'D Off,
WipeOut!


28693
(For switch without bracket see 28668 above)

GTB-28693+ $12.00ea

Gottlieb Double Contact Flipper Button
Both High Current Switches
Left Side Switch

Used on Gottlieb® Solid State games:
Barb Wire,
Big Hurt,
Freddy,
Gladiator,

Shaq Attack!,
Street Fighter II,
Super Mario Bros.,
WipeOut!




28962
(For switch with bracket see 28973 below)

GTB-28962+ $8.00ea

Gottlieb Single Contact Flipper Button
High Current Switch
Right Side Switch

Used on Gottlieb® Solid State games:
Barb Wire,
Big Hurt,
Mario Andretti,
Street Fighter II,
Strikes 'N Spares,
Super Mario Bros.,
Super Mario Bros Mushroom World,
Water World



28963
(For switch with bracket see 28974 below)

GTB-28963+ $6.90ea

Gottlieb Double Contact with Bracket Flipper Button
Both High Current Switches
Left Side Switch

Used on Gottlieb® Solid State games:
Barb Wire,
Big Hurt,
Freddy,
Gladiator,

Shaq Attack!,
Street Fighter II,
Super Mario Bros.,
WipeOut!


28973
(For switch without bracket see 28962 above)

GTB-28973+ $12.00ea

Gottlieb Single Contact with Bracket Flipper Button
High Current Switch
Right Side Switch

Used on Gottlieb® Solid State games:
Barb Wire,
Big Hurt,
Mario Andretti,
Street Fighter II,
Strikes 'N Spares,
Super Mario Bros.,
Super Mario Bros Mushroom World,
Water World



28974
(For switch without bracket see 28963 above)

GTB-28974+ $8.00ea

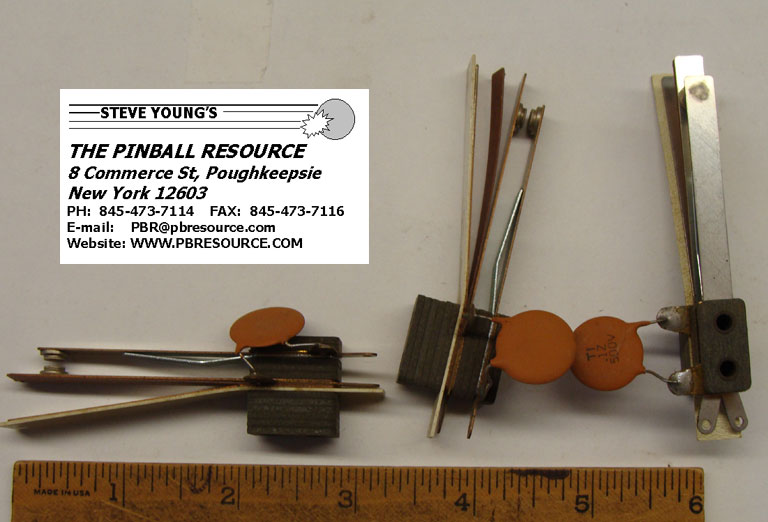

26664 Left Side


26665 Right Side

Gottlieb / International Concepts
Cocktail Table Flipper Button
High Current Switches

Left Side Switch
26664

Right Side Switch
26665


Used on Gottlieb® / International Concepts games:
Night Moves
Caribbean Cruise

GTB-26664 $7.00ea

GTB-26665 $7.00ea

Lane Change Stacked on Flipper Button Switch

Used on Bally games like Fathom and Centaur

SW1A-150

WLL-SW1A-150+ $2.79ea
