The Pinball Resource

Bridge Rectifiers and Accessories

Part

Description

Part Number / Price

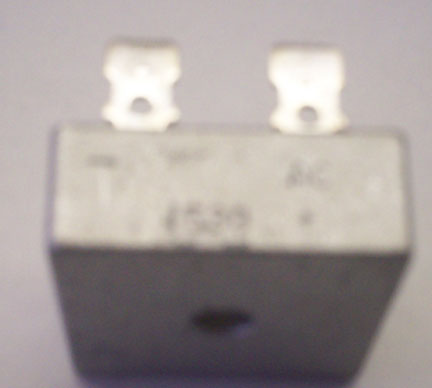

Bridge Rectifier With 4 Tabs

35AMP 400Volt Bridge Rectifier with 4 Tabs

Sames as Gottlieb EL42
Also used in Williams and Bally games!

SC-KBPC3502 $4.19ea

Bridge Rectifier With Wire Leads

8AMP Bridge Rectifier with wire leads

Note: Leads heavier than original-May require PCB holes to be enlarged!

Used in older Bally/Stern games!

SC-VJ248 $4.36ea

Bridge Rectifier With Wire Leads

35AMP 400 Volt Bridge Rectifier with wire leads

Substitute for Williams/Bally 5100-09690-00

Substitute Heat Sink for above Bridge Rectifier used on WPC Power Driver Boards A-12696-1 and A-12697-3. Comes with screws!

SC-KBPC3502WL $3.20ea

W-5705-12698-00 $7.00ea
