Bumper Bodies For Pop Bumpers,
Jet Bumpers, Thumper Bumpers,
Dead Bumper, Skirts, Bases, and Other Parts


All of our bumper bodies are hot-stamped (unless otherwise noted) and are either NOS or are replacement parts, hot-stamped with the original tooling and dies, whenever possible. These replacement parts are hot-stamped in methods faithful to the original factory parts, done to meet or exceed the original specifications!

Bumper Bodies

Skirts

Bumper Bases

Switches

Springs

Rod and Rings

Plungers and Matching Armatures / Yokes

Rebuild Kits

Other Parts




Bumper Body

Description

Part

Price

Gottlieb® White Bumper Body

Color: Blue, Red, Green, Purple, or Yellow

A-10436
“Specify Color”

$6.00

Gottlieb® White Bumper Body

Color: Blue or Red

A-13904
“Specify Color”

$6.00

Gottlieb® White Bumper Body

Color: Black, Blue, Red, Yellow, Purple or Green.
Also available in a:
Red Bumper Body with Black Lines
Yellow Bumper Body with Blue Lines
Yellow Bumper Body with Black Lines

A-13905
“Specify Color”

$6.00

Gottlieb® White Bumper Body

Color: Black or Red
Used on games like Panthera, Super Orbit, and Time Line

A-15980
“Specify Color”

$6.00

Gottlieb® Bumper Body

Color: Yellow, Blue, White, Orange, or Red

26860
“Specify Color”

$4.00


22488 Shown

Gottlieb® Striker Yellow Bumper Bodies

#22487 “Advance Right Defense”
#22488 “Advance Left Defense”

22487
22488

$6.00
$6.00

Gottlieb® Pink Panther Bumper Bodies

20577

$6.00

Advanced Bumper Body
(Dead Bumper Body)

Color:White

GTB-25A

$1.65

M/S Pop Bumper Body

Color:White

GTB-8997

$0.85

Bumper Body

Color:White

DE-545-5197-00

$0.82

Stern Thumper Bumper Housing

Color:Blue

DE-545-5100-00

$10.54

Skirts

Description

Part

Price

4 Hole Dead/Advanced Bumper Skirts

A1217B Blue
A1217G Green
A1217R Red
A1217W White
A1217Y Yellow

All of the above Skirts have the Points!

Used with GTB-25A Bumper Body listed above!

A1217B
A1217G
A1217R
A1217W
A1217Y


$1.25ea
$1.25ea
$1.25ea
$1.25ea
$1.25ea

6 Hole Pop Bumper Skirts

A1218B Blue
A1218BK Black
A1218DG Dark Green
A1218G Green
A1218O Orange
A1218P Purple -
Note the purple color of this shirt does Not match our bumper bodies and caps! It is also different shade than the original Purple skirts!
A1218R Red
A1218W White
A1218Y Yellow

All of the above Skirts have the Points!
If you don't want the Points, simply cut them off!



Same as Gottlieb Part C10433!

A1218B
A1218BK
A1218DG
A1218G
A1218O
A1218P
A1218R
A1218W
A1218Y


$0.85ea
$0.85ea
$0.85ea
$0.85ea
$0.85ea
$0.85ea
$0.85ea
$0.85ea
$0.85ea




Bumper Bases

Description

Part

Price

Bumper Bases

B10432W White
B10432R Red
B10432B Blue

U
niversal part for most mfrs

B10432W
B10432R
B10432B

$0.84ea
$0.84ea
$0.84ea

Switches

Description

Part

Price

Data East / Sega /Stern
Thumper Bumper Switch

180-5015-00

$5.17ea

Data East / Sega /Stern
Thumper Bumper Switch

180-5036-00

Out Of Stock


GTB-B8704 Shown

Gottlieb® E/M Pop Bumper Switches from Mid 60's Through Early 70's

GTB-B8704+
GTB-B8549+

$6.68ea
$6.68ea


GTB-B17108 Shown

Gottlieb® E/M Pop Bumper Switches from Mid 70's Through Late 70's

GTB-B17108+
GTB-B17109+

$6.68ea
$6.68ea


GTB-B18090 Shown

Gottlieb® System 1 Pop Bumper Switch

GTB-B18089+
GTB-B18090+

$7.07ea
$7.07ea


GTB-21353 Shown


GTB-21356 Shown

Gottlieb® System 80 Pop Bumper Switches

GTB-21353
GTB-21356
GTB-21359

$7.50ea
$7.50ea
$7.50ea
$7.50ea


GTB-22704 Show

Gottlieb® Early System 3 Pop Bumper Switches

GTB-22704
GTB-22705

$4.40ea
$4.40ea


GTB-21819 Shown

Gottlieb® System 3 Pop Bumper Smart Switches

GTB-29818+
GTB-29819+

$10.40ea
$10.40ea

Springs

Description

Part

Price


GTB-A10430 Shown

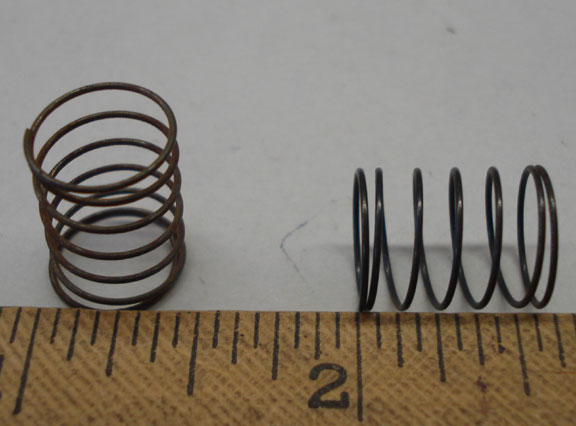

STN-B695-7 Shown

Centering/Skirt Spring

Used on Advanced/Dead Bumpers and Pop Bumpers!

Bally: GTB-A10430
(Substitute for SP200-177)


Gottlieb: GTB-A10430

Data East/Sega: GTB-A10430
(Substitute for 266-5018-00)

Old Stern: GTB-A10430
(Without Blue Plastic Pop Bumper Base B-695-1)
(Substitute for 5A-100)

Old Stern: STN-B695-7
(With Blue Plastic Pop Bumper Base STN-B695-1)

Stern: GTB-A10430
(Substitute for 266-5048-00)

Williams: GTB-A10430
(Substitute for 10A-7 and 10-7)

GTB-A10430
STN-B695-7



$0.45ea
$0.45ea



GTB-21643 Shown


WLL-10-135 Shown


WLL-10-326+ Shown


Return Spring

Used on Pop Bumpers

Bally :GTB-21643
(Substitute for SP200-105)

Data East: WLL-10-326+(With Blue Plastic Pop Bumper Base 545-5099-00)
(Substitute for 266-5009-00)

Gottlieb :GTB-21643
(Substitute for A-590)

Old Stern: WLL-10-326+(Without Blue Plastic Pop Bumper Base B-695-1)
(Substitute for 5A-164)

Old Stern: WLL-10-326+
(With Blue Plastic Pop Bumper Base B-695-1)
STN-5A-175

Stern: WLL-10-326+
(Without Blue Plastic Pop Bumper Base 545-5099-00)
(Substitute for 266-5047-00)

Williams: WLL-10-135
1950's Through Granada 1972

Williams: WLL-10-326+
1972 Spanish Eyes through Pinball 2000




GTB-21643
WLL-10-135
WLL-10-326+




$0.60ea
$0.60ea
$0.55ea

Rod and Rings

Description

Part

Price

Pop Bumper Rod And Ring



Used on Williams games from 1950's through End.

Substitute for Bally Flange and Stud Assembly A1873 and A967-00013-000

Substitute for early Gottlieb® games before Surf Champ(1976) A1316
and for later game Surf Champ to End(BarbWire)
A16634

Substitute for Data East / Sega / Stern -Rod and Ring Assembly 515-5085-00






Uses 2 Elastic Stop Nuts:
HDW-6-32STOP

WLL-A4754



HDW-6-32STOP

$5.98ea



$0.24ea


GTB-A16634+ Shown

Gottlieb® Pop Bumper Rod And Ring


Used on Surf Champ(1976)
to End(BarbWire) with bumper pad B16632

You can also use the above A4754 Rod and Rings as a substitute.

Uses 2 Elastic Stop Nuts:
HDW-6-32STOP

GTB-A16634+





GTB-B16632



HDW-6-32STOP

$4.84ea





$2.76



$0.24ea

Plungers

Description

Part

Price


GTB-A2663 Shown


GTB-A12149 Shown


GTB-A2662+ Shown

Gottlieb®
Pop Bumper Plungers and Yokes


Used on all Gottlieb® Games From the 50's through Barbwire(1996)


Plunger A2663

Metal Armature/Slotted Yoke A12149
(Replaces A2661)

Fiber Yoke A2662

GTB-A2663

GTB-A12149

GTB-A2662+

$1.76ea

$0.45ea

$0.60ea


Keyhole Parts
No Longer
Available

Williams Keyhole Pop/Jet Bumper Plungers and Armatures
Used in games from the mid 50's until about 1972


Original parts for Williams games that use the “Keyhole” cutout to attach to the plunger are NO longer available.

No Worries -
PBR has a solution - We have redesigned the plunger, which allowed us utilize the Gottlieb® bakelite and metal armatures with this new plunger to give new life to these tired assemblies.

The redesigned plunger is not available separately. We offer it as part of Pop Bumper Rebuild Kit
KT-WPOP-01 (See below)

The original plunger was 2A-2527, 02-2527

The original bakelite armature was
1A-1231-1, 01-1231-1

This original metal armature was
1A-954, 01-954

See:
KT-WPOP-01



WLL-02-3406-1 Shown


GTB-A12149 Shown


GTB-A2662+ Shown


Williams Pop/Jet Bumper Plungers and Armatures used from about 1972 through Star Wars Episode 1

Plunger 02-3406-1
( 2A3406-1 )

The original Metal and Fiber Armatures are No Longer Available. Our Enhanced Gottlieb® parts are a great substitute!
The Substitute Enhanced Yokes must be used in pairs(Metal Yoke and Fiber Yoke)!

The original bakelite armature was
1A-5492, 01-5492,
03-5492

This original metal armature was
1A-5493, 01-5493



Substitute Metal Yoke A12149
(If there is not enough clearance for the flange of the Yoke, flip it 180 degrees)

Substitute Fiber Armature A2662

WLL-02-3406-1

GTB-A12149

GTB-A2662+

$2.28ea

$0.45ea

$0.60ea


BLY-S496-118 Shown


GTB-A12149 Shown


GTB-A2662+ Shown










BLY-P3656-1 Shown


BLY-P3656 Shown


BLY-P3656-2 Shown

Bally Thumper Bumper Plungers and Yokes used on games from the 1960's through Truck Stop.


Plunger S496-118
(Same as 0967-00705-00XF)

We recommend our Enhanced Gottlieb® Yoke parts as a substitute!
The Enhanced Yokes must be used in pairs!

Metal Armature A12149
(If there is not enough clearance for the flange of the Yoke, flip it 180 degrees)

Fiber Armature A2662

We have the following parts in a limited quantity for those that want to keep their games using only Bally parts.

Metal Yoke P3656-1

Fiber Yoke P3656

Fiber Yoke P3656-2

BLY-S496-118

GTB-A12149

GTB-A2662+

BLY-P3656-1

BLY-P3656

BLY-P3656-2

$2.20ea

$0.45ea

$0.60ea

$0.80ea

$0.60ea

$0.60ea



CCM-2A106N Shown


GTB-A12149 Shown


GTB-A2662+ Shown




STN-1A124 Shown


STN-1A125 Shown


Old Stern/Chicago Coin Thumper Bumper Plungers and Yokes used on games from the early 1970's through early 1980's(Without Blue Bumper Body.)


Plunger 2A-106-N


We recommend our Enhanced Gottlieb® Yoke parts as a substitute!
The Enhanced Yokes must be used in pairs!

Metal Armature A12149
(If there is not enough clearance for the flange of the Yoke, flip it 180 degrees)

Fiber Armature A2662

We have the following parts in a limited quantity for those that want to keep their games using only Old Stern/Chicago Coin parts.

Metal Yoke 1A-124

Fiber Yoke 1A-125

CCM-2A106N

GTB-A12149

GTB-A2662+



CCM-2A106N

STN-1A124

STN-1A125

$1.47ea

$0.45ea

$0.60ea



$1.47ea

$1.20ea

$1.20ea


Click to see parts breakdown

Old Stern Thumper Bumper Plungers and Yokes used on games from the early 1980's with Bumper Bodies like the thumbnail.


Plunger B695-11


Top Yoke B695-4

Bottom Yoke B695-5

STN-B695-11

STN-B695-4

STN-B695-5

$0.90ea

$1.35ea

Out Of Stock


DE-530-506200 Shown


DE-530-534800 Shown


DE-535-734600 Shown

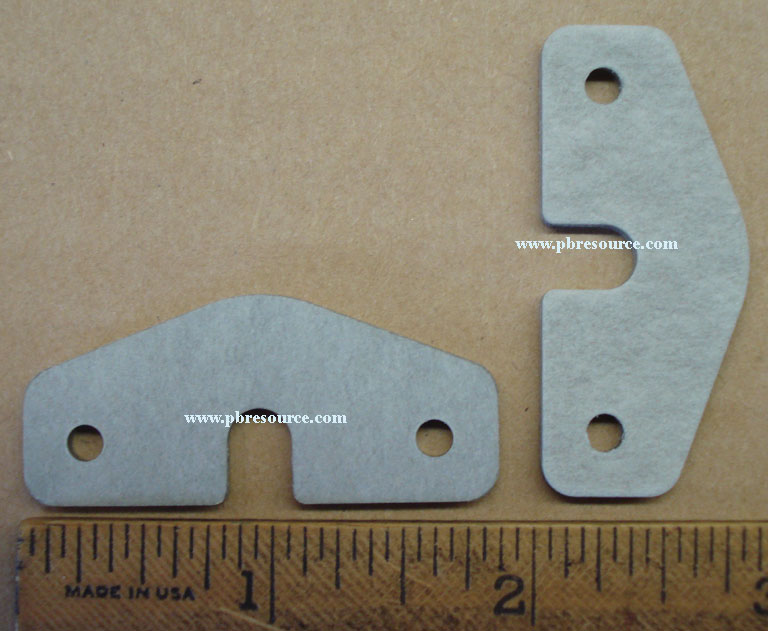

DE-545-560900 Shown






Data East / Sega / Stern

Plunger 530-5062-00
(Laser War through Maverick)

Plunger 530-7346-00
(Frankenstein through Current)

Metal Yoke:
535-7346-00
(Replaces 535-5877-00,
and 535-5072-00)

Fiber Yoke:
545-5609-00
(Replaces 545-5120-00)

DE-530-506200

DE-530-534800

DE-535-734600

DE-545-560900

$2.26ea

$3.72ea

$2.60ea

$1.40ea

Brunswick Home Model Games like Alive and Aspen


Plunger 55-101727-000

Other parts available in Rebuild Kit K-KIT-POP listed below

K-55101727000

$1.85ea

Rebuild Kits

Description

Part

Price


KT-GPOP-01 Shown

Gottlieb®
AC Type Pop Bumper Rebuild Kit
Covers AC games from 1957

Each kit rebuilds a single pop bumper.
Each kit contains
1 X GTB-A4862 Replaceable Coil Stop
1 X GTB-A2663 Plunger
1 X Metal Yoke GTB-A12149
1 X Fiber Yoke GTB-A2662+
1 X GTB-21643 Return Spring
1 X GTB Standard Sleeve
2 X HDW-6-32STOP Elastic Stop Nuts
2 X Screws HDW-6-32-1/4

Very Late AC Pop Bumpers have 10-32 style Coil Stops which can be replaced by the one in this kit if centered carefully.

KT-GPOP-01

$9.18


KT-GPOP-02 Shown

Gottlieb®
DC Type Pop Bumper Rebuild Kit
Covers DC games from around 11/1976 to Barbwire 1996

Each kit rebuilds a single pop bumper.

Each kit contains

1 X GTB-A2663 Plunger
1 X Metal Yoke GTB-A12149
1 X Fiber Yoke GTB-A2662+
1 X GTB-21643 Return Spring
1 X GTB Standard Sleeve
2 X HDW-6-32STOP Elastic Stop Nuts
2 X Screws HDW-6-32-1/4

KT-GPOP-02

$5.49ea


KT-WPOP-01 Shown

Williams AC “Keyhole Style” Jet Bumper Rebuild Kit
Used in games from the mid 50's to about 1972

Original parts for Williams games that use the “Keyhole” cutout to attach to the plunger are NO longer available.

We have redesigned the plunger, which allowed us utilize the Gottlieb® bakelite and metal armatures with this new plunger to give new life to these tired assemblies.

The redesigned plunger is not available separately.

Each kit rebuilds a single pop bumper.

Each kit contains

1 X WLL-2A2527U Redesigned Plunger
1 X Metal Yoke GTB-A12149
1 X Fiber Yoke GTB-A2662+
1 X WLL-10-135 Return Spring
1 X Williams Standard Sleeve
2 X HDW-6-32STOP Elastic Stop Nuts
2 X Screws HDW-6-32-1/4

KT-WPOP-01

$5.92ea


KT-WPOP-02 Shown

Williams AC/DC Standard Jet Bumper Rebuild Kit

Each kit rebuilds a single pop bumper.

Each kit contains

1 X WLL-02-3406-1 Plunger
1 X Metal Yoke GTB-A12149
1 X Fiber Yoke GTB-A2662+
1 X WLL-10-326+ Return Spring
1 X Williams Standard Sleeve
2 X HDW-6-32STOP Elastic Stop Nuts
2 X Screws HDW-6-32-1/4

KT-WPOP-02

$5.40ea


K-KIT-POP Shown

Brunswick
Pop Bumper Rebuild Kit
For Home Model Games like Alive and Aspen


Each kit rebuilds a single pop bumper.

Each kit contains
1 X Plunger 55-101727-000
1 X Pop Bumper Spring
1 X Fiber Yoke
1 X Metal Yoke
1 X Mounting Bracket

K-KIT-POP

$5.00ea

Other Parts

Description

Part

Price

Gottlieb® Mylar Trim Platter

Non-adhesive versions

GTB-B8246

$0.75

Mylar Trim Platter

Adhesive versions

MYLAR-POP

Out Of Stock

½ Pop Bumper Mylar Adhesive

These are NOS Gottlieb® clear adhesive mylar halves for the Pop Bumper. These Halves are great if you want to add Mylar protection to your pop bumpers without having to dismantle the pop bumper. Since these are Halves, you need to purchase Two to protect a single pop bumper.
Click on the thumbnail to see the actual size.

GTB-25732

Out Of Stock

Pop Bumper Spoon

A Williams part 03-7395, but can be used as a substitute for Bally C-921, Old Stern B695-6, and Data East/Sega/Stern 545-5610-01 if you enlarge the 2 mounting holes.

WLL-03-7395

$1.67

Pop Bumper Adapter Ring

Turns a Gottlieb Pop Bumper Body into a Dead Bumper Body! Used on Gottlieb Bodies A10436, A13904, A13905, A15980, and 26860. Used on games like Buccaneer!

GTB-B10431

$0.85ea

Looking for information on Pop Bumpers! Want to know how they go together before you try to take one apart? Trying to diagnose a problem? Well the Pinball Collectors Quarterly did a great job doing just that. Click on the Thumbnail to the right for an expanded view of a Gottlieb® Pop Bumper:
NOTE: The part numbers in the diagram are out-dated, please refer to the English description associated with the part number.

All caps designs are presented for reference only, to help customers identify the caps that are needed for their specific games. All Gottlieb® cap designs are copyright Gottlieb Development LLC ® and secured by The Pinball Resource under this license. All Rights Reserved!

Top

Home Page

EMAIL PBR

How To Order

FAQ

©2004-2014 The Pinball Resource
