Stand Up Playfield Switches and Parts!

Don't see the Stand-Up switch or part you need, ASK!


Atari


Stand Up Switches

Bally


Stand Up Switches
__________

Unique Parts for Bally Switches




Common

Switch

Parts

Gottlieb


Stand Up Switches
________

Unique Parts for Gottlieb Switches

Old Stern/ Chicago Coin

Stand Up Switches
________

Unique Parts for Old Stern / Chicago Coin Switches



PBR





Enhnaced
Stand Up
Switches
(For Williams and Bally Games

Stern / Sega / Data East


Stand Up Switches

Williams/
Bally




Stand Up Switches
________

Unique Parts for Bally / Williams Switches


Atari Stand Up Switches

Part

Description / Notes

Original Part Number/
Substitue for

PBR Part Number

Price

Octagon Yellow Target Switch Assembly



Blade will be rusty! Click on thumbnail for a better view!

A-020-302-04

ATA-A02030204

$8.00ea

Bally Stand Up Switches

Part

Description / Notes

Original Part Number/
Substitue for

PBR Part Number

Price

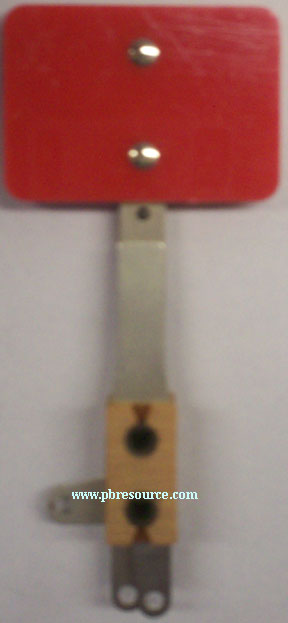

Red Rectangular Target Switch Assembly

A3359-18

BLY-A3359-18

Out Of Stock


BLY-ASE2911-R Shown

Round Face Stand Up Switch Assembly Without Bracket

ASE-2911

A3359-20

BLY-ASE2911+G

BLY-ASE2911+R

BLY-ASE2911+W

BLY-ASE2911+Y

$5.10ea


$5.10ea


$5.10ea


$5.10ea

Round Face Stand Up Switch Assembly With Rear Bracket



*Very limited Stock!

ASE-2911-62

BLY-ASE291162

Out of Stock

Bally Pacman
Yellow/Black Stand Up Switch Assembly without Bracket

A-3359-21

BLY-A3359-21

Out of Stock


BLY-CA1025-2 SHown

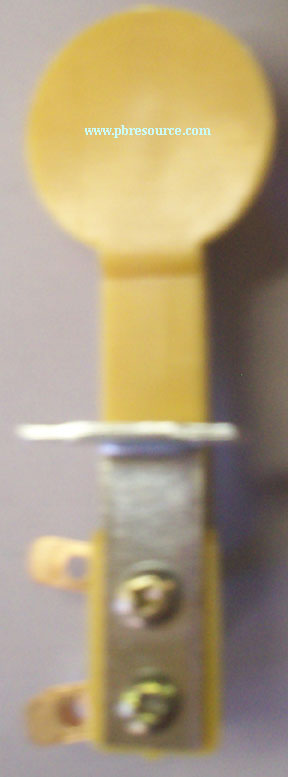

Stand Up Switch Assembly with Reversible Bracket

CA-10255-X

BLY-CA1025-2

$6.60ea

Bally Unique Stand Up Switch Parts

Part

Description / Notes

Original Part Number/
Substitue for

PBR Part Number

Price

Red Rectangular Face & 2 Rivets

Bally C947-1
Williams
3A-7335-4

BLY-C947-1

Out Of Stock

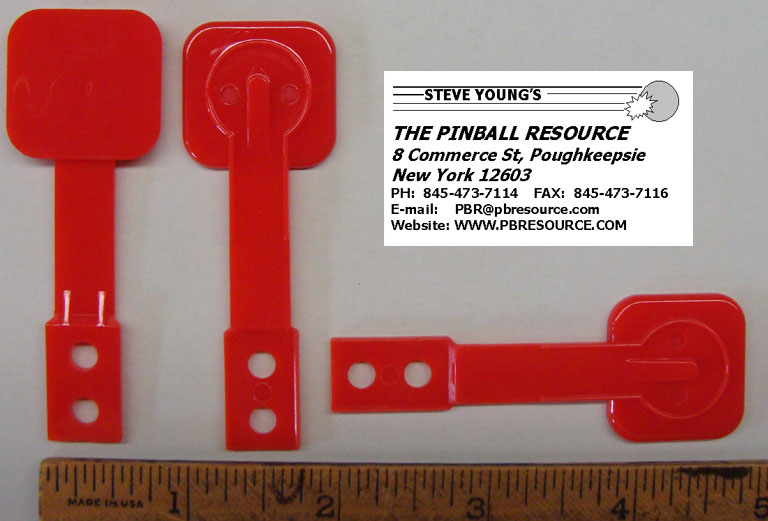

Red Plastic Square Target Face

C1024-1

BLY-C1024-1

Out Of Stock

Plastic Round Target Faces

C1025-1

BLY-C1025-1

$1.36ea

Plastic Round Target Faces

C1025-4

BLY-C1025-4

$1.36ea


BLY-C1025-7 Shown

Plastic Round Target Faces

C1025-7

BLY-C1025-7

Out Of Stock

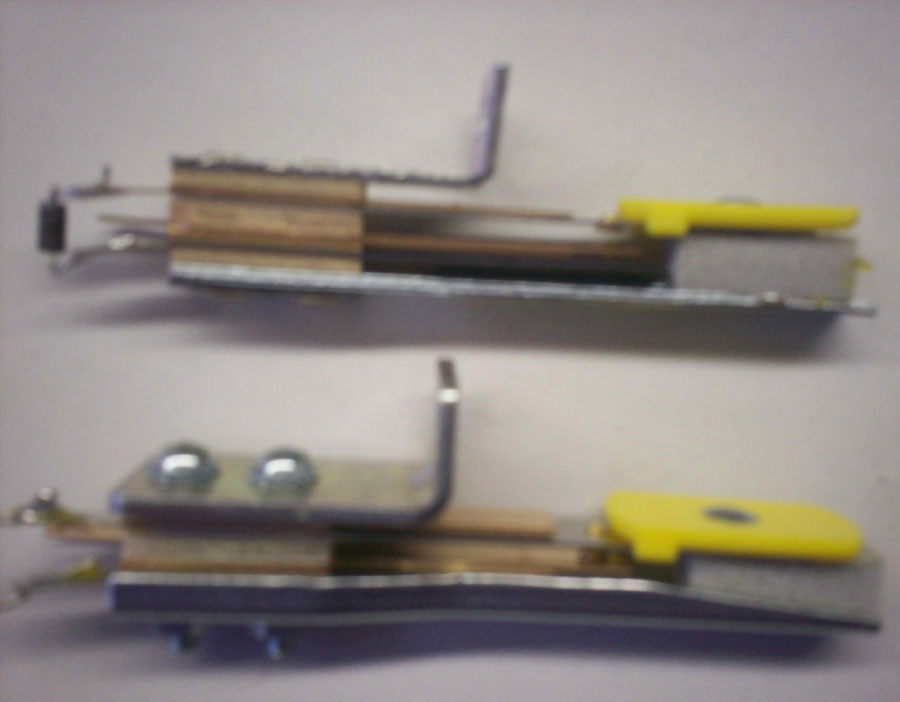

PBR Enhanced Stand Up Switches
These are our Re-engineered Switches to reduce Air Balls and Bent Switches!

Part

Description / Notes

Original Part Number/
Substitue for

PBR Part Number

Price

Twilight Zone Enhanced Green Clock Millions Switch

Also used on games
Gilligan's Island

A-18530-2
A-15658-2
B-12583-2

WLL-A18530-2E

$9.59ea

Twilight Zone Enhanced Yellow Slot Machine Switch

Also used on
The Shadow, Totan, Junkyard, Popeye, Medieval Madness, Road Show, Cirqus Voltaire, Fishtales, Harley Davidson, Demolitian Man, No Good Gofers, Champion Pub, and Safecracker

A-18530-6
A-15658-6
A-17795-6
B-12583-6

WLL-A18530-6E

$9.59ea

Twilight Zone Enhanced Yellow Middle Left 5 Million Switch

Also used on
Dracula, The Getaway, STTNG, Congo, Jackbot, and Harley Davidson

A-14691-6
A-18605-6
A-11054
B-11696-6

WLL-A14691-6E

$9.59ea

Theatre Of Magic Enhanced Center Ramp White Switch

A-20014-5

WLL-A20014-5E

$8.72ea

Front Mount Enhanced Red Switch

Used on
Dracula, The Getaway, Terminator 2, Indiana Jones, Twilight Zone. STTNG, The Addams Family, Radical, and Dr Dude

A-14691-4
A-11022
B-11696-4

WLL-A14691-4E

$9.59ea

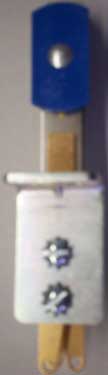

Front Mount Enhanced Oblong Blue Switch

Used on
Indy 500, World Cup Soccer, Monster Bash, The Addams Family, and Fun House

A-18530-1
B-12583-1

WLL-A18530-1E

$9.59ea

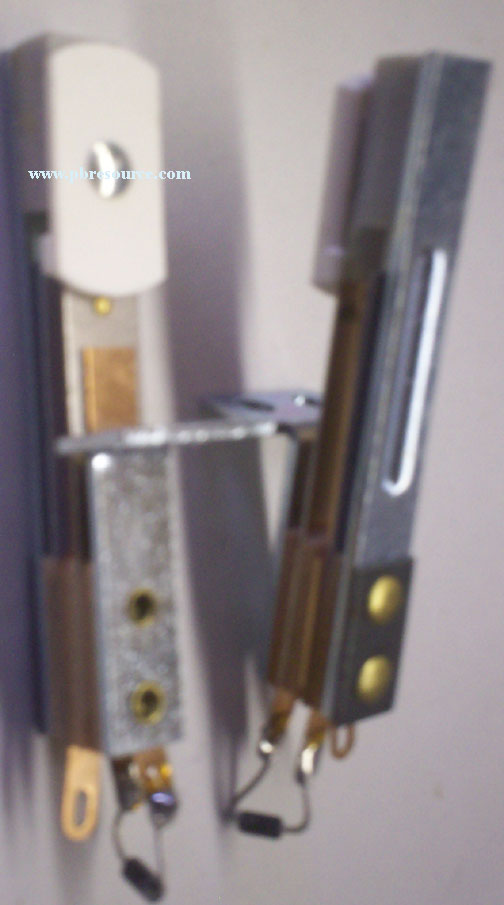

Front Mount Enhanced Oblong White Switch

Used on
Cirqus Voltaire and Flinstones

A-18530-5
A-17778-5

WLL-A18530-5E

$9.59ea

Round Yellow Rear Mount Enhanced Switch

Used on games like:
Star Trek The Next Generation and Harley Davidson

A-14690-6
B-12039-6

Wll-A14690-6E

$9.59ea

Gottlieb® / Premier Stand Up Switches

Part

Description / Notes

Original Part Number/
Substitue for

PBR Part Number

Price

White Round Swing Up Target

Used on
Haunted House

21429

GTB-21429

$3.40ea

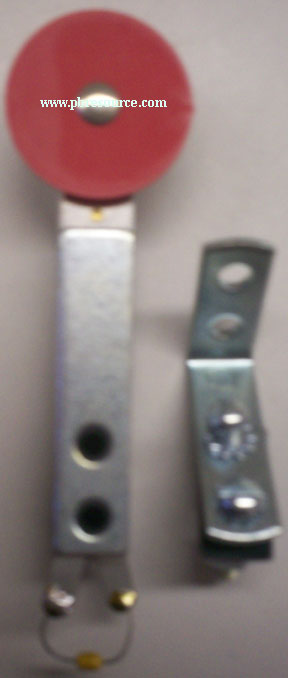

GTB-25460+B Shown

Round Switch with Reversible Mounting Bracket

Used on most System 80/80A/80B games and early System 3 game like:
Volcano, Black Hole, Haunted House, Devil's Dare, Rocky, Spirit, Punk, Striker, Q*Bert's Quest, Super Orbit, Royal Flush Deluxe, Amazon Hunt, Rack 'Em Up, Ready Aim Fire!, Alien Star, The Games, Touchdown, El Dorado City Of Gold, Ice Fever, Chicago Cubs Triple Play, Bounty Hunter, Tag Team, Rock, Rock Encore, Raven, Hollywood Heat, Gold Wings, Monte Carlo, Spring Break, Arena, Victory, Diamond Lady, TX Sector, Robo-War, Excalibur, Hot Shots, Big House, BoneBusters, Lights Camera Action, Silver Slugger, Vegas, Deadly Weapon, Title Fight, Car Hop, Hoops, Cactus Jack,

Some of the games listed above use Hot Stamped Target Faces! We offer just the Target face(see Below) or if you need, we offer a service that can install it on a new switch for you!

20867W
25460W
26231W
20867S
25460S
26231S
20867U
25460U
26231U
20867Z
25460Z
26231Z
20867T
25460T
26231T
20867R
25460R
26231R
20867V
25460V
26231V
20867
25460
26231


Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

Blue GTB-25460+B

Green GTB-25460+G

Red GTB-25460+R


White GTB-25460+W


Yellow GTB-25460+Y


Purple GTB-25460+P

Orange GTB-25460+O

$8.60ea

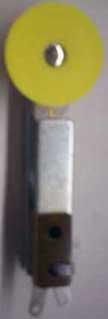

GTB-25628+Y Shown

Round Switch
Without Mounting Bracket

Used on games like:
Bad Girls, Class of 1812, Lights Camera Action, Title Fight, and Wipeout

25628U
25628Z
25628T

Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

Red GTB-25628+R


White GTB-25628+W

Yellow GTB-25628+Y

$6.30ea


GTB-26924O Shown


Rectangular Switch with Reversible Bracket

Used on games like:
Class of 1812, Lights Camera Action, Title Fight, and Hoops

26924W
27809W
26924V
27809V
26924U
27809U
26924Z
27809Z
26924T
27809T
26924
27809

Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

Blue GTB-26924B

Orange GTB-26924O

Red GTB-26924R

White GTB-26924W

Yellow GTB-26924Y

$6.60ea


GTB-28495+W Shown

Rectangular Switch with Reversible Bracket

Used on games like:
Surf 'N Safari

28495V
28495Z
28495

Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

Orange GTB-28495+O

White GTB-28495+W

$6.00ea


GTB-28671+Y Shown

Round Switch with Rear Mounting Bracket

Used on games like:
Operation Thunder


28671U
28671T
28671

Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

Red GTB-28671+R

Yellow GTB-28671+Y

$7.60ea


GTB-28672R Shown

Round Switch with Front Mounting Bracket

Used on games like:
Operation Thunder

28672U
28672T
28672

Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

Red GTB-28672R


Yellow GTB-28672Y

$6.00ea


GTB-28730+P Shown

Round Switch with Reversible Mounting Bracket

Used on games like:
Operation Thunder

28730U
28731U
28730R
28731R
28730T
28731T
28730
28731

Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

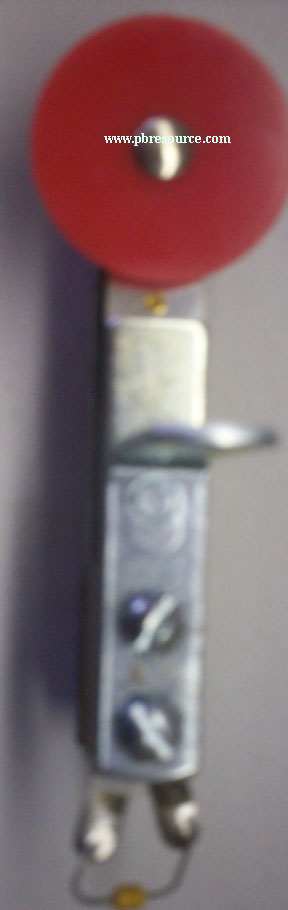

Red GTB-28730+R

Purple GTB-28730+P

Yellow GTB-28730+Y

$6.60ea

Rectangular Switch with Rear Mounting Bracket

Used on games like:
Super Mario Bros

29017Z
29107

Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

White GTB-29017+W

$7.40ea


GTB-29099+B Shown

Round Smart Switch ™ (Piezo Film Sensor) without Mounting Bracket

Used on games like:
Cue Ball Wizard
Street Fighter II
Tee'd Off
Wipe Out
World Challenge Soccer
Rescue 911
Freddy
Shaq
Waterworld
Barb Wire

29099W
29099S
29099V
29099U
29099T
29099Z
29099

Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

Blue GTB-29099+B

Green GTB-29099+G

Orange GTB-29099+O

Red GTB-29099+R


Yellow GTB-29099+Y


White GTB-29099+W

$11.20ea

Rectangular Switch with Front Mounting Bracket

Used on games like:
Super Mario Bros Mushroom World
(Whistle Target)

29239T
29239



Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

Yellow GTB-29239Y

$10.40ea

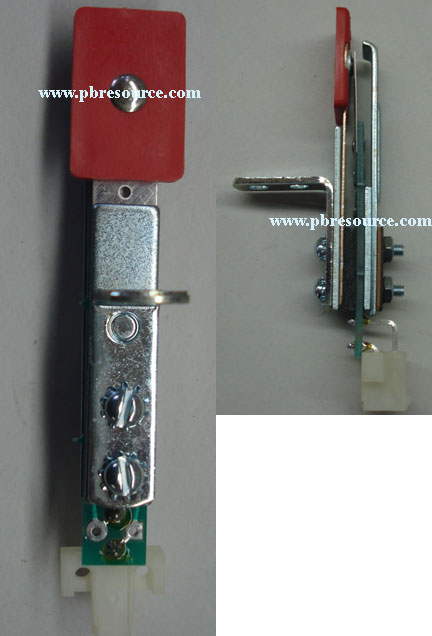

GTB-29104+O Shown

Rectangular Smart Switch ™ (Piezo Film Sensor) with Front Mounting Bracket

Used on games like:
Cue Ball Wizard
Street Fighter II
Gladiators
World Challenge Soccer
Rescue 911
Mario Andretti|
Barb Wire

29104W
29104V
29104U
29104Z
29104T
29104



Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

Blue GTB-29104+B

Orange GTB-29104+O

Red GTB-29104+R

White GTB-29104+W

Yellow GTB-29104+Y

$11.20ea

Round Smart Switch ™ (Piezo Film Sensor) without Mounting Bracket

Used on game:
Cue Ball Wizard

29428S
29428



Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

Green GTB-29428+G

$10.80ea



GTB-29430+Y Shown

Rectangular Smart Switch ™ (Piezo Film Sensor) with Front Mounting Bracket

Used on games like:
Cue Ball Wizard
Shaq
Big Hurt
Mario Andretti

29430Z
29403Z
29430T
29430
29403
29403Z(Bad Part number in game manual)

Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

White GTB-29430+W

Yellow GTB-29430+Y

$10.40ea


GTB-29432O Shown

Rectangular Smart Switch ™ (Piezo Film Sensor) with Front Mounting Bracket

Used on games like:
Cue Ball Wizard

29432W
29432V
29432U
29432T
29432

Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

Blue GTB-29432B

Orange GTB-29532O

Red GTB-29432+R

Yellow GTB-29432+Y

$10.40ea

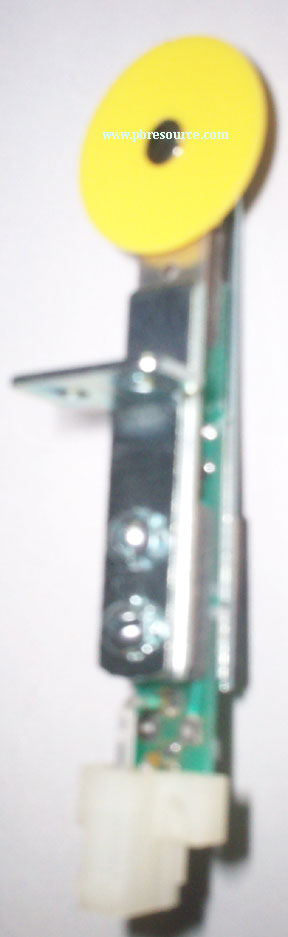

GTB-29764-W Shown

Round Smart Switch ™ (Piezo Film Sensor) with Front Mounting Bracket

Used on games like:
Street Fighter II
Rescue 911
Freddy

29764Z
31015Z
29764T
31015T
29764
31015

Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

White GTB-29764+W

Yellow GTB-29764+Y

$15.00ea


GTB-30273+Y

Round Smart Switch ™ (Piezo Film Sensor) without Mounting Bracket

Used on games like:
Wipe Out

30273Z
30273T
30273

Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

White GTB-30273+W

Yellow GTB-30273+Y

$10.40ea


GTB-30531+W Shown

Rectangular Smart Switch ™ (Piezo Film Sensor) without Mounting Bracket

Used on games like:
World Challenge Soccer
Mario Andretti

30531Z
30531T
30531



Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

White GTB-30531+W

Yellow GTB-30531+Y

$10.40ea


GTB-30635+O Shown

Round Smart Switch ™ (Piezo Film Sensor) with Front Mounting Bracket

Used on games like:
Rescue 911
Mario Andretti

30635V
30635U
30635

Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

Orange GTB-30635+O

Red GTB-30635+R

$10.40ea

Rectangular Smart Switch ™ (Piezo Film Sensor) with Front Mounting Bracket

Used on games like:
Rescue 911

30636V
30636

Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

Orange GTB-30636+O

$10.40ea


GTB-31034+R Shown

Round Smart Switch ™ (Piezo Film Sensor) with Front Mounting Bracket

Used on games like:
Freddy

31034U
31034Z
31034



Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

Red GTB-31034+R

White GTB-31034+W

$10.40ea

Rectangular Smart Switch ™ (Piezo Film Sensor) with Front Mounting Bracket

Used on games like:
Freddy

31036U
31036

Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

Red GTB-31036+R

$10.40ea

Round Smart Switch ™ (Piezo Film Sensor) with Special Mounting Bracket

Used on games like:
Stargate

31133Z



Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

White GTB-31133Z

OUT OF STOCK


GTB-32116+O Shown


Rectangular Smart Switch ™ (Piezo Film Sensor) without Mounting Bracket

Used on games like:
Barb Wire

32116V
32117V
32116
32117

Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

Orange GTB-32116+O

$11.20ea

Round Smart Switch ™ (Piezo Film Sensor) with Front Mounting Bracket

Used on games like:
Barb Wire

32212W
32212

Last Letter of Gottlieb® Part Number denotes color
See:
Gottlieb® Color Code Chart

Blue GTB-32212B

$10.80ea

Gottlieb® / Premier Unique Switch and Stand Up Switches Parts

Part

Description / Notes

Original Part Number/
Substitue for

PBR Part Number

Price



1” Rivet “Bulleyes” Round Target Faces

These Red/White/Blue Bullseye round target faces are 1” wide and include the rivet to attach to a switch.

A-9383

GTB-A9383B
1” Rivet “Bulleyes” Round Target Face

$4.00ea

1” Rivet
Round Design / Round Target Face


A-12290

GTB-A12290 Purple/Gold

GTB-A12290 White/Blue

GTB-A12290 White/Black

GTB-A12290 White/Green

GTB-A12290 White/Red

GTB-A12290 Yellow/Black

GTB-A12290 Yellow/Gold

$4.00ea

1” Rivet Octagons Design / Round Target Face

A-12301

GTB-A12301 White/Blue

GTB-A12301 White/Black

GTB-A12301 White/Green

GTB-A12301 White/Red

GTB-A12301 White/Yellow


$4.00ea

1” Rivet
Round “BaseBall”
Target Face

A-12841

GTB-A12841 Red/White

GTB-A12841 White/Black

GTB-A12841 White/Red


$4.00ea

1” Rivet “Wagon Wheel” Round Target Faces

These Red/White/Blue Wagon Wheel round target faces are 1” wide and include the rivet to attach to a switch.

A-13895

GTB-A13895
1” Rivet “Wagon Wheel” Round Target Face

$4.00ea

1” Rivet
4 Star/Flash
Round Target Face

These 4 Star/Flash round target faces are 1” wide and include the rivet to attach to a switch.

A-14395

GTB-A14395 Purple/Gold

GTB-A14395 Purple/White

GTB-A14395 Yellow/Red

GTB-A14395 Yellow/Black

$4.00ea

1” Rivet “Stars” Design / Round Target Face

These Stars round target faces are 1” wide and include the rivet to attach to a switch.

A-14396

GTB-A14396 White/Blue

GTB-A14396 White/Red

$4.00ea

1” Rivet “Clown”/”Joker” Design / Round Target Face

These Clown/Joker round target faces are 1” wide and include the rivet to attach to a switch.

A-14404

GTB-A14404 G-B

GTB-A14404P-B

GTB-A14404W-B

$4.00ea

1” Rivet “Star” Round Target Faces

These Star round target faces are 1” wide and include the rivet to attach to a switch.

A-14787

GTB-A14787 Red/Gold

GTB-A14787 Red/White

GTB-A14787 Purple/Gold

GTB-A14787 White/Black

GTB-A14787 White/Green

GTB-A14787 White/Gold

GTB-A14787 White/Orange

GTB-A14787 White/Purple

GTB-A14787 White/Red

GTB-A14787 Yellow/Black

GTB-A14787 Yellow/Gold

GTB-A14787 Yellow/Red

$4.00ea

1” Rivet “Aztec” Round Target Faces

These Aztec round target faces are 1” wide and include the rivet to attach to a switch.

A-14788

GTB-A14788 Green/Yellow

GTB-A14788 White/Red

$4.00ea

1” Rivet “Diamond” Round Target Faces

These Diamond round target faces are 1” wide and include the rivet to attach to a switch.

A-15288

GTB-A15288 White/Red

$4.00ea

1” Rivet “Q”
Target Face

These Q round target faces are 1” wide and include the rivet to attach to a switch.

A18268

GTB-A18268

$4.00ea

1” Rivet “K”
Target Face

These K round target faces are 1” wide and include the rivet to attach to a switch.

A18269

GTB-A18269

$4.00ea

1” Rivet Blue Note “Musical Notes” Target Face

These blue musical notes target faces were used on Gottlieb®'s Blue Note game!

A-18479

GTB-A18479

$4.00ea

1” Rivet “Joker”
Target Face

These Joker round target faces are 1” wide and include the rivet to attach to a switch.

A-18511

GTB-A18511 Purple/Gold

GTB-A18511 White/Blue

GTB-A18511 White/Black

GTB-A18511 White/Purple

GTB-A18511 White/Red


$4.00ea

1” Rivet “Spiderweb” Round Target Faces

These Spiderweb round target faces are 1” wide and include the rivet to attach to a switch.

A-19838

GTB-A19838 White/Black

$4.00ea

1” Rivet “Pink Panther”
Target Face

These Pink Panther round target faces are 1” wide and include the rivet to attach to a switch.

20522

GTB-20522

$4.00ea

1” Rivet Raven “Cross Hair” Target Face

These Cross Hair target faces were originally designed to go on Gottlieb®'s Raven. They never made the production game! They can be seen on the game flyer! We have found the original mold and have made these available for owner who want their game to look like it was designed to look!

A-24794

GTB-24794 Red/Yellow

GTB-24794 Yellow/Red

$4.00ea

Gottlieb® / Premier Stand Up Target
Color Code Chart

Color Code
(Last Letter of Gottlieb® Part Number)

Color

Example
Gottlieb® 29104Z = PBR GTB-29104W

PBR Code
(Last Letter of PBR Part Number)

R

Purple

P

S

Green

G

T

Yellow

Y

U

Red

R

V

Orange

O

W

Blue

B

Z

White

W

Data East/ Sega / Stern and Stand Up Switches

Part

Description / Notes

Original Part Number/
Substitue for

PBR Part Number

Price

White Square Switch

Used on games like:
Phantom Of The Opera(Substitute). The Simpsons, and Roller Coaster Tycoon

180-5058-08
515-5152-08
515-5162-08

DE-515-516208

$14.56ea

Transparent Yellow Square Skirted Switch

Used on games like:
Lethal Weapon 3

180-5082-00
500-5482-06

DE-180-50826+

$9.22ea

Opaque Yellow Square Skirted Swtich

Used on games like:
Star Wars

180-5082-00
500-5640-26
500-5615-06
515-5934-06

DE-180-50826X

$9.22ea

Transparent Red Round Switch


500-5035-02
500-5783-12
500-5035-12

DE-500-503502

$8.10ea

Transparent Green Round Switch

500-5035-04
500-5783-14
500-5035-14

DE-500-503504

$8.10ea

Transparent Yellow Round Switch

500-5035-06
500-5783-16
500-5035-16

DE-500-503506

$8.10ea

Opaque White Round Switch

Used on games like:
Checkpoint

500-5035-08

DE-500-503508

$8.10ea

2 Bank White Rectangular Switch Assembly

Used on games like:
Monday Night Football

500-5176-00
500-5321-08
515-5252-00

DE-500-517600

Out Of Stock

1 Bank Clear Skirted Switch Assembly


500-5252-01
500-5640-11

DE-500-525201

Out Of Stock

1” Square Red Switch Assembly

Used on games like:
Roller Coaster Tycoon

500-5232-02

DE-500-523202

$20.86ea

1 Bank Opaque Green Skirted Switch Assembly

Used on games like:
Jurassic Park

500-5640-14

DE-500-5640-14

$10.34ea

1 Bank Blue Rectangular Target Assembly

Used on games like:
Independence Day

500-5857-05

DE-500-585705

$5.44ea

1 Bank Grey Rectangular Target Assembly

Used on games like:
Baywatch

500-5857-14

DE-500-585714

$10.36ea

3 Bank Yellow Square Target Assembly

Used on games like:
Roller Coaster Tycoon

515-5152-06
515-5162-06

DE-515-515206

Out Of Stock

Red Triangular Switch

Used on games like:
Time Machine

515-5161-02

DE-515-516102

Out Of Stock

White Rectangular Switch

Used on games like:
Monday Night Football

515-5252-00
500-5176-00
500-5321-08

DE-515-525200

$7.24ea

Narrow Skirted Red Switch

Used on games like:
Jurassic Park, Last Action Hero, Rocky and Bullwinkle

515-5930-02
500-5641-00
500-5607-02
500-5639-12
515-5930-02
180-5120-02
180-5125-02

DE-515-593002

Out of Stock

Narrow Skirted Green Switch

Used on games like:
Jurassic Park, Last Action Hero, Rocky and Bullwinkle

515-5930-04
500-5641-00
500-5607-04
500-5639-14
515-5930-04
180-5120-04
180-5125-04

DE-515-593004

$15.48ea

Narrow Skirted Blue Switch

515-5930-05
180-5125-05

DE-515-593005

Out Of Stock

Narrow Skirted Yellow Switch

515-5930-06
180-5125-06

DE-515-593006

Out Of Stock

Narrow Skirted White Switch Assembly

500-5639-18
180-5120-08

DE-500-563918

$10.34

Eyeball Switch

Used on games like:
Tales From The Crypt

515-5935-00

DE-515-593500

Out Of Stock

Round Transparent Green Switch

Used on games like:
The Simsons Pinball Party, Robocop,

515-5966-04
500-5835-04
515-5211-04
515-5124-04
515-5124-14

DE-515-596604

Out Of Stock

Round White Switch


Used on games like:
Star Trek,
The Simsons Pinball Party, Playboy

515-5966-08
180-5081-08
515-5124-18
515-5124-08
515-5145-18

DE-515-596608

$11.76ea

Round Transparent Yellow Switch

515-5966-16
515-5124-16

DE-515-596616

Out Of Stock

Narrow Red Rectangular Switch


Used on games like: Playboy, Apollo 13

515-5967-02

DE-515-596702

$12.74ea

Narrow Green Rectangular Switch


Used on games like: Independence Day

515-5967-04

DE-515-596704

Out Of Stock

Narrow Blue Rectangular Switch


Used on games like:
Independence Day

515-5967-05

DE-515-596705

$11.90ea


Narrow Yellow Rectangular Switch

Used on games like:
Independence Day
Roller Coaster Tycoon

515-5967-06

DE-515-596706

$13.42ea

Narrow White Rectangular Switch


Used on games like:
Star Trek

515-5967-08
180-5088-08
180-5967-08
500-5336-08
500-5780-18

DE-515-596708

$6.38ea

Bally/Williams Stand Up Switches

Part

Description / Notes

Original Part Number/
Substitue for

PBR Part Number

Price

Round Yellow Front Mount Switch



A-11054

WLL-A11054

Out Of Stock

Rectangular Orange Switch

Used on games like:
Pinbot

A-11315-15

WLL-A11315-15

Out of Stock

Round Transparent Blue Front Mount Switch

Used on games like:
Pinbot

A-11317-1

WLL-A11317-1

Out Of Stock

Round Yellow Rear Mount Switch

Used on games like:
Pinbot

A-11317-3

WLL-A11317-3

$6.85ea

Oblong Transparent Green Front Mount Switch

Used on games like:
White Water

A-14604-11

WLL-A14604-11

$7.70ea

Oblong Transparent Orange Front Mount Switch

Used on games like:
White Water

A-14604-12

WLL-A14604-12

$8.65ea

Oblong Translucent Orange Front Mount Switch

Used on games like:
Party Zone

A-14604-20

WLL-A14604-20

$8.65ea

Round White Rear Mount Switch

Used on games like:
Terminator 2

A-14690-5
B-12039-5

WLL-A14690-5

Out of Stock

Round Opaque Orange Rear Mount Switch

Used on games like:
Terminator 2 and No Good Gofers

A-14690-15
B12039-15

WLL-A14690-15

$7.50ea

Round Blue Front Mount Switch

Used on games like:
The Addams FamilyThe Addams Family(Gold)

A-14691-1
B-11696-1

WLL-A14691-1

$7.50ea

Round Green Front Mount Switch

Used on games like:
The Getaway High Speed II, Dr Dude

A-14691-2
A-11055
B-11696-2

WLL-A14691-2

$6.70ea

Round Red Front Mount Switch

Used on games like:
The Getaway High Speed II, Terminator 2, Star Trek The Next Generation, Twilight Zone, Indiana Jones, Radical, The Addams Family, The Addams Family (Gold), and Bram Strokes Dracula

** Note: We also offer an Enhanced version of this switch
WLL-A14691-4E**

A-14691-4
B-11696-4

WLL-A14691-4

$7.70ea

Round White Front Mount Switch

Used on games like:
The Getaway High Speed II, Fishtales, The Addams Family, The Addams Family(Gold)

A-14691-5
B-11696-5

WLL-A14691-5

$6.70ea

Round Yellow Front Mount Switch

Used on games like:
The Getaway High Speed II, Twilight Zone, Bram Strokers Dracula, Harley Davidson, Demolition Man, Jackbot, Congo, No Good Gofers, Safecracker, and Star Trek The Next Generation

** Note: We also offer an Enhanced version of this switch
WLL-A14691-6E **

A-14691-6
A-11054
B-11696-6
A18605-6
A17799-6

WLL-A14691-6

$7.50ea

Rectangular Red Front Mount Switch

Used on games like:
Road Show and Doctor Who

A-15330-4

WLL-A15330-4

$6.85ea

Stationary Target Assembly with Decal

Used on game:
Star Trek The Next Generation

A-16759

WLL-A16759

Out Of Stock

Black Oblong Rear Mount Switch

Used on game:
Who Dunnit

A-16816-7

WLL-A16816-7

Out Of Stock

Rectangular Red Rear Mount Switch

Used on games like:
Popeye and
Corvette

A-17226-4

WLL-A17226-4

Out Of Stock

Oblong Orange Front Mount Switch

Used on games like:
Congo, World Cup Soccer, and Popeye

A-17778-15
A-18530-15

WLL-A17778-15

Out Of Stock

White Oblong Front Mount Switch

Used on game:
Road Show

A-17795-5

WLL-A17795-5

Out Of Stock

Red Round Front Mount Switch

Used on games like:
No Good Gofers and Popeye

A-17799-4

WLL-A17799-4

Out Of Stock

Yellow Oblong Skirted Front Mount Switch

Used on games like:
Tales of The Arabian Nights and Indy 500

A-18017-6

WLL-A18017-6

$9.06ea

Translucent Teal Square Skirted Front Mount Switch

Used on games like:
Attack From Mars and Revenge From Mars

A-18018-21

WLL-A18018-21

$9.67ea

Transparent Green Square Skirted Front Mount Switch

Used on game:
Revenge From Mars

A-18019-11

WLL-A18019-11

9.24ea

Translucent Orange Square Skirted Front Mount Switch

Used on game:
Indy 500
Monster Bash

A-18019-20
A-18019-15

WLL-A18019-20

Out Of Stock

Orange Square Skirted Rear Mount Switch

Used on game:
Star Wars Episode 1

A-18058-15

WLL-A18058-15

$8.20ea

Orange Square Front Mount Switch

Used on game:
Road Show

A-18060-15

WLL-A18060-15

Out Of Stock

Blue Oblong Front Mount Switch

Used on games like:
Indy 500, Monster Bash, No Goof Gofers, The Addams Family, and The Addams Family(Gold)

** Note: We also offer an Enhanced version of this switch
WLL-A18530-1E **

A-18530-1
A-17995-1
B-12583-1

WLL-A18530-1

$6.70ea

Green Oblong Front Mount Switch

Used on games like:
Gilligan's Island, Twilight Zone

** Note: We also offer an Enhanced version of this switch
WLL-A18530-2E **

A-18530-2
B-12583-2
A-15658-2

WLL-A18530-2

$6.70ea


Purple Oblong Front Mount Switch

Used on game:
NBA Fastbreak

A-18530-3

WLL-A18530-3

Not Currently Available

Red Oblong Front Mount Switch

Used on games like:
Junkyard, Revenge From Mars, Road Show, The Addams Family, The Addams Family(Gold), Who Dunnit, World Cup Soccer, and Star Trek The Next Generation

A-18530-4
A-17795-4
B-12583-4
A-15658-4

WLL-A18530-4

$6.70ea

White Oblong Front Mount Switch

Used on game:
Cirqus Voltaire

A-18530-5
A-17778-5

WLL-A18530-5

$6.70ea

Yellow Oblong Front Mount Switch

Used on games like:
Tales of the Arabian Nights, Champion Pub, Cirqus Voltaire, Demolition Man, Harley Davidson, Junkyard, Medieval Madness, No Good Gofers, Pinball Circus, Popeye, Road Show, Safecracker, The Shadow, Twilight Zone, Fishtales

** Note: We also offer an Enhanced version of this switch
WLL-A18530-6E **

A-18530-6
A-17795-6
B-12583-6
A-15658-6

WLL-A18530-6

$6.70ea

Red Round Front Mount Switch

Used on games like:
Jackbot

A-18605-4

WLL-A18605-4

$9.90ea

White Oblong Rear Mount Switch

Used on game:
Flintstones

A-18606-5

WLL-A18606-5

$6.20ea

Yellow Round Rear Mount Switch

Used on game:
Star Wars Episode 1

A-18606-6

WLL-A18606-6

Out of Stock

Black Round Rear Mount Switch

Used on game:
Flintstones

A-18606-7

WLL-A18606-7

Out of Stock

3 Wired Switches and Connector
Yellow Rectangular Front Mount

Used on game:
Road Show

A-19753

WLL-A19753

Out Of Stock

3 Wired Switches and Connector
Red Rectangular
Front Mount

Used on game:
Road Show

A-19754

WLL-A19754

Out Of Stock

White Oblong Rear Mount Switch

Used on game:
Theatre Of Magic

** Note: We also offer an Enhanced version of this switch
WLL-A20014-5E **

A-20014-5

WLL-A20014-5

$6.90ea

Transparent Red Skirted Front Mount Switch

Used on games like:
Tales of the Arabian Nights and Cirqus Voltaire

A-20846-9

WLL-A20846-9

Out Of Stock

Blue Round Rear Mount Switch

Used on games like:
Junkyard

A-21349-1

WLL-A21349-1

Out Of Stock

Red Skirted Front Mount Switch

Used on game:
Medieval Madness

A-21576-4

WLL-A21576-4

Out Of Stock

Teal Green Skirted Rear Mount Switch

Used on game:
Revenge From Mars

A-21576-21

WLL-A21576-21

$9.67ea

Troll Switch Target Assembly

Used on game:
Medieval Madness

A-21743

WLL-A21743

$14.25ea

Red Skirted Front Mount Switch

Used on game:
Medieval Madness

A-21990-4

WLL-A21990-4

Out Of Stock

Red Round Front Mount Switch

Used on game:
No Good Gofers

A-22224-4

WLL-A22224-4

$11.88ea

3 Bank Wired Switch Assembly with Bracket Yellow Skirted Rear Mount Switches

Used on game:
Champion Pub

A-22252

WLL-A22252

Out Of Stock

Blue Oblong Switch

Used on game:
Monster Bash

A-22414-1

WLL-A22414-1

Out Of Stock

Yellow Round
Front Mount Switch

A-4735

WLL-A4735-6

$6.60ea

Yellow Round
Rear Mount Switch

A-8253
B-8253

WLL-B8253-6

$7.85ea

Red Rectangular
Front Mount Switch

Used on games like:
Fun House, Junkyard, Revenge From Mars, and Road Show

B-12001-4
A-18060-4

WLL-B12001-4

Out Of Stock

Red Round
Rear Mount Switch

Used on game:
Hurricane

B-12039-4

WLL-B12039-4

Out Of Stock

Black Oblong
Front Mount Switch

Used on game:
Riverboat Gambler

B-12583-7

WLL-B12583-7

Out of Stock

Red Skirted
Front Mount Switch
Used on game:
Demolition Man

B-12912-4
A-18018-4

WLL-B12912-4

$6.70ea

White Skirted
Front Mount Switch

Used on game:
Gilligan's Island
Dr Dude

B-12912-5
B-14060-5


WLL-B12912-5

Out Of Stock

Transparent Blue Skirted
Front Mount Switch

Used on game:
Whitewater
Gilligan's Island
Riverboat Gambler

B-12912-10
B-14060-10

WLL-B12912-10

Out of Stock

Transparent Green Skirted
Front Mount Switch

Used on game:
Riverboat Gambler

B-12912-11

WLL-B12912-11

Out Of Stock

Transparent Yellow Skirted
Front Mount Switch

Used on game:
Gilligan's Island

B-12912-16

WLL-B12912-16

$6.70ea

Translucent Orange Skirted
Front Mount Switch

Used on game:
Party Zone

B-12912-20

WLL-B12912-20

Out Of Stock

Translucent Light Blue Skirted
Front Mount Switch

Used on game:
Party Zone

B-12912-22

WLL-B12912-22

Out Of Stock

Medium Red Skirted
Front Mount Switch



Used on games like
Scared Stiff andWhitewater

B-12912-23

WLL-B12912-23

-Out Of Stock

Translucent White Skirted
Front Mount Switch

Used on games like:
Party Zone and Whitewater

B-12912-24

WLL-B12912-24

Out Of Stock

Bally/Williams Unique Switch Parts

Part

Description / Notes

Original Part Number/
Substitue for

PBR Part Number

Price



WLL-20-9646 Shown

Replacement Microswitch Covers

Large Orange 20-9646
Large Black 20-9646-1
Small Grey 20-9672
Large Grey 20-9860

Used on games like:
Bram Stoker's Dracula
Demolition Man
Doctor Who
Fun House Hurricane
Riverboat Gambler
The Getaway HSII
Safecracker
Twilight Zone
Whitewater

20-9646
20-9646-1
20-9672
20-9860

WLL-20-9646
WLL-20-9646-1
WLL-20-9672
WLL-20-9860

Out Of Stock

Out Of Stock

Out Of Stock

Out Of Stock


WLL-SW1A-1782 Shown

Oblong Switch Core

Can be used when targets are mounted in banks or when switch mounting hardware is unique and must be salvaged and reused.

Blue =SW-1A-178-1
Green =SW-1A-178-2
Red =SW-1A-178-4
White =SW-1A-178-5
Yellow =SW-1A-178-6

SW-1A-178-1
SW-1A-178-2
SW-1A-178-4
SW-1A-178-5
SW-1A-178-6

WLL-SW1A-1781
WLL-SW1A-1782
WLL-SW1A-1784
WLL-SW1A-1785
WLL-SW1A-1786

$4.70ea
$4.70ea
$4.70ea
$4.70ea
$4.60ea



W-SW1A-178-1R Shown

Round Switch Core

Can be used when targets are mounted in banks or when switch mounting hardware is unique and must be salvaged and reused.

Blue =SW-1A-170-1
Green =SW-1A-170-2
Red =SW-1A-170-4
White =SW-1A-170-5
Yellow =SW-1A-170-6

SW-1A-170-1
SW-1A-170-2
SW-1A-170-4
SW-1A-170-5
SW-1A-170-6

W-SW1A-178-1R
W-SW1A-178-2R
W-SW1A-178-4R
W-SW1A-178-5R
W-SW1A-178-6R

$4.40ea
$4.28ea
$4.70ea
$4.70ea
$4.70ea

Round Switch Core

Can be used when targets are mounted in banks or when switch mounting hardware is unique and must be salvaged and reused.

Orange =SW-1A-202-15

SW-1A-202-15

W-SW1A-202-15

Out Of Stock

Red Rectangular Face & 2 Rivets

Bally C947-1
Williams
3A-7335-4

BLY-C947-1

Out of Stock

1” Rivet “Red Bulleyes” Round Target Faces

These Red/White Bullseye round target faces are 1” wide and include the rivet to attach to a switch.

Williams
17-1016
3A7218

WLL-17-1016

$4.00ea

1” Rivet “Blue Bulleyes” Round Target Faces

These Blue/White Bullseye round target faces are 1” wide and include the rivet to attach to a switch.

Williams
17-1015

WLL-17-1015

$4.00ea

Rectangular Red Target Face with White Circles

Williams
3A-7431-4-5-18

W-3A-74314518

Out Of Stock

Common Switch Parts

Part

Description / Notes

Original Part Number/
Substitue for

PBR Part Number

Price

Light
Thickness .008

Medium
Thickness .010

Heavy
Thickness .016

Switch Blades

We offer Switch Blades in Light, Medium, and Heavy Duty. These can be used to build your own/repair your own switches when the original switch is No Longer Available. The Light switch blade is normally used in Relay Banks. The Medium Switch blade is General Use. The Heavy Switch Blade is normally used for EOS/Flipper Cabinets.
These are all punched for 7 contact positions, set contact, trim length as required.


These blades are for Standard leaf switches. They will NOT work for Gottlieb AG Relays, Bally G Relays, Score Reel Switches, or any switch that the total length of the switch is less than 2”.


Blade-Light
Blade-Med
Blade-Hvy

$0.39ea
$0.39ea
$0.49ea




Contact-SM-X


CU-Contact


Switch Contacts

We offer Contacts for the blades listed above.

The CONTACT-SM-X are a silver alloy- gold flashed for EM/SS use.


The CU-CONTACT are tungstein face, copper backed for high current applications.



Contact-SM-X
CU-Contact

$0.36ea
$0.40ea



Switch Fish Paper

We offer Fishpaper for the switches you need to make!



Fishpaper

$0.30ea



Nylon Switch Blade Lifters

Click on thumbnail for more information!

3/32” A-5255
1/8” A-5256
5/32” A-5257
3/16” A-5258
7/32” A-5259
1/4” A-5260
9/32” A-5261
5/16” A-5262
11/32” A-5263

GTB-A5255
GTB-A5256
GTB-A5257
GTB-A5258
GTB-A5259
GTB-A5260
GTB-A5261
GTB-A5262
GTB-A5263

$0.25ea

Cover Plate

A-465

GTB-A465

$0.20ea

Steel Plate

A-1826


GTB-A1826

$1.40ea

Separators

1/16” A463
1/32” A464

GTB-A463
GTB-A464

$0.16ea
$0.16ea

1” Rivet Solid Round Target Faces

These round target faces are 1” wide and include the rivet to attach to a switch.
These faces are available in Purple, Red, White, Light Blue, Green, Yellow, and Orange.

A9374

GTB-A9374-Blue
GTB-A9374-Green
GTB-A9374-LightBlue
GTB-A9374-Orange
GTB-A9374-Purple
GTB-A9374-Red
GTB-A9374-White
GTB-A9374-Yellow

$1.25ea
$1.25ea
Out Of Stock
$1.25ea
$1.25ea
$1.25ea
$1.25ea
$1.25ea

1” Stud Round Target Faces

These Stud targets have round faces that are 1” wide and include the clip to attach to the switch.
These faces are available in Red, Whites, Yellow, and Blue.


GTB-A5201
1” Stud Round Target Face


Specify Color!

Green and Purple
are Out Of Stock

$2.65ea

1” Stud “Bullseye” Round Target Faces

These Red/White/Blue Bullseye round target faces are 1” wide and include the clip to attach to the switch.


GTB-A5217
1” Stud “Bullseye” Round Target Face

$4.00ea

1 1/8” Stud Round Target Faces

These Stud targets have round faces that are 1 1/8” wide and include the clip to attach to the switch.
These faces are available in Blue, Yellow, White, Purple, Green, and Red.


GTB-A5201L
1 1/8” Stud Round Target Face


Specify Color!

$2.65ea

1 1/8” Stud “Bullseye” Round Target Faces

These Red/White/Blue Bullseye round target faces are 1” wide and include the clip to attach to the switch.


GTB-A5217L
1 1/8” Stud “Bullseye” Round Target Face


$4.00ea

1 1/8” Stud “Blue Bullseye” Round Target Faces

These White/Blue Bullseye round target faces are 1 1/8” wide and include clip to attach the stud to the switch.


Note – This is not a stocked part! This is a Special order Part! Special Orders take about 6 weeks on average!


GTB-A5217LB
1 1/8” Stud “Blue Bullseye” Round Target Face

$4.00ea

Grey Target Foams

Used behind standup target. Sold in lots of 10.


MAT-TARGETFM

$2.50 Per Lot

Switch Hardware

We offer the following hardware for assembling/fixing your stand-up switch
*Note, the screws are available in 5/8”, 3/4”, 1”, 1-1/4”, and 1-1/2” lengths

Screw HDW-5-40-RHMS-5/8
Screw HDW-5-40-RHMS-3/4
Screw HDW-5-40-RHMS-1
Screw HDW-5-40-RHMS-1-1/4
Screw HDW-5-40-RHMS-1-1/2
Washer HDW-5-40-LW
Nut HDW-5-40-NUT


HDW-5-40-RHMS-5/8
HDW-5-40-RHMS-3/4
HDW-5-40-RHMS-1
HDW-5-40-RHMS-1-1/4
HDW-5-40-RHMS-1-1/2
HDW-5-40-LW
HDW-5-40-NUT

$0.25ea
$0.25ea
$0.25ea
$0.25ea
$0.25ea
$0.03ea
$0.10ea

Diode

Used on Stand-Up Switches, Coils, and Microswtiches.

1N-4004
1N-4001
1N-4007
WMS 5070-09054-00
GTB XO-254
BLY E-587-15
Stern 112-5003-00




SC-1N4004

$0.11ea

Old Stern / Chicago Coin Stand Up Switches

Yellow Round
Rear Mount Switch


A-461

STN-A461

Out of Stock

Old Stern / Chicago Coin Unique Switch Parts

1” Rivet “Blue Star” Round Target Faces

This White/Blue Star round target faces are 1” wide and include the rivet to attach to a switch.

*4 of these are used on Seawitch

A-649

STN-A649-FACE

$4.00ea

Top

Home Page

EMAIL PBR

How To Order

FAQ

©2004-2017 The Pinball Resource
