Williams

Relay Banks

Latch Type Relays

Interlock Relays

E” Relay

L” Relay

Z” Relay

J” Relay AC

“J” Relay DC

M” Relay

Coin Lockout Relay

BallGate Lock Relay

United

Relay Bank

Williams
”Relay Bank Parts”-

C-5507



Description
/ Original Part Number

PBR Part Number / Price

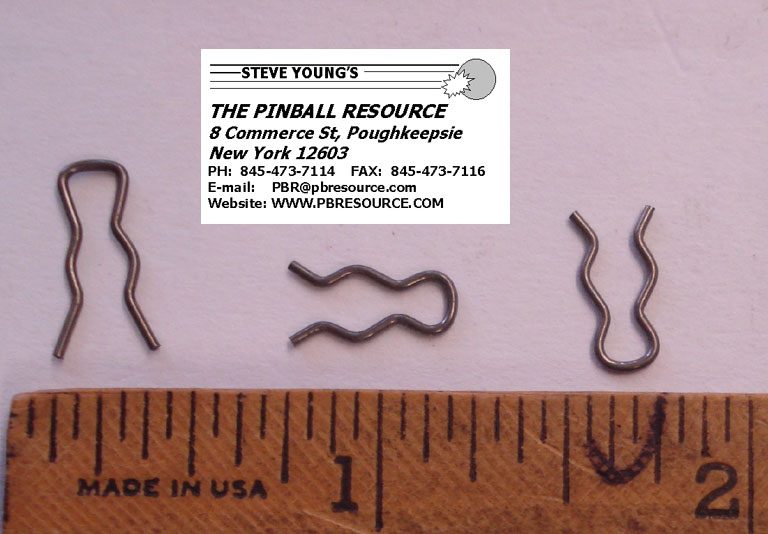

Hairpin Clip

12-6227
12A6227
12A-6227

WLL-12-6227 $0.36ea

Bank Reset Arm

A-5494-1
329-A

Only available Used

WLL-A5494-1 $6.50ea

Bank Reset Plunger and Link

A-5501
14-122

Only available Used

WLL-A5501 $6.75ea

Rear leg Hinge Assembly

A-5493
348

Only available Used

WLL-A5493 $4.85ea

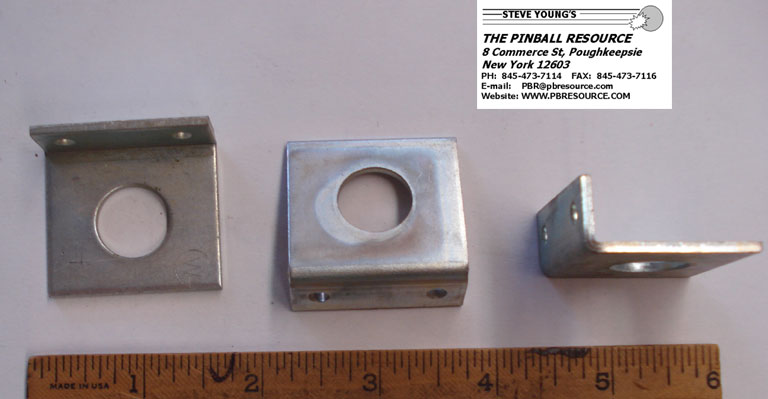

Coil Mounting Bracket

1A-1792
1792


WLL-1A1792 $2.45ea

Coil Mounting Assembly

B-5499
1793

WLL-B5499 $14.00ea

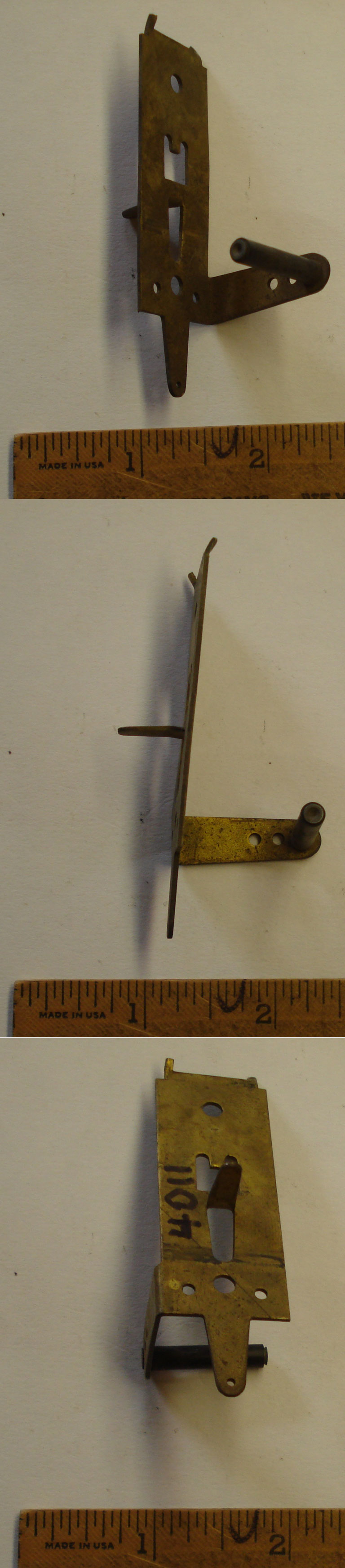

Brass Flap Assembly

4011
A-4011



Only available Used

WLL-4011 $3.50

Brass Actuating Arm

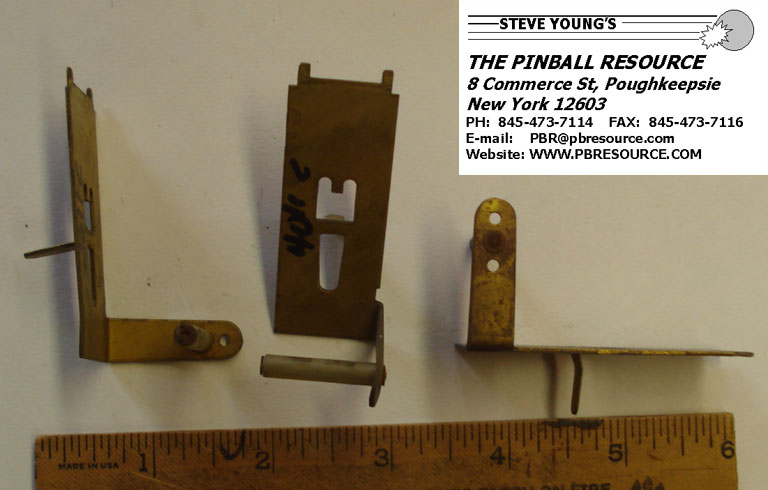

4011-C



Only available Used

WLL-4011-C $3.50ea

Williams
”Relay Bank Parts”-

C-6493


Actuating Arm

A-6446



Only available Used

WLL-A6446 $3.50ea

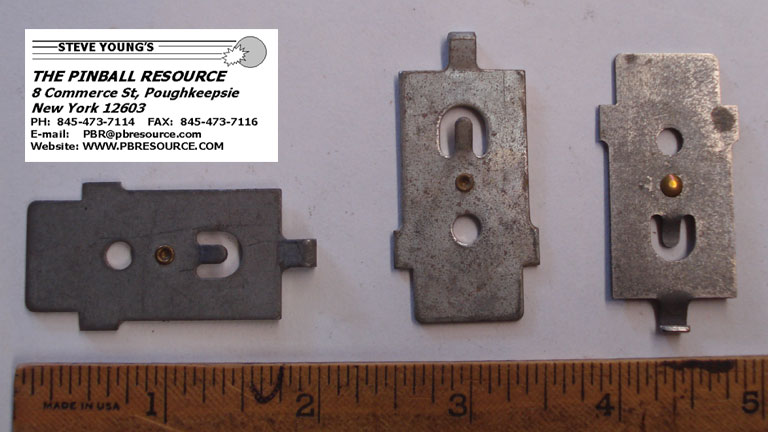

Armature Plate


A-6445



Only available Used – Some of these have the hook bent and some are straight

WLL-A6445 Out of Stock

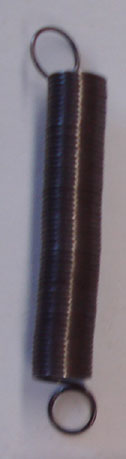

Spring


10A-224
10A224
10-224

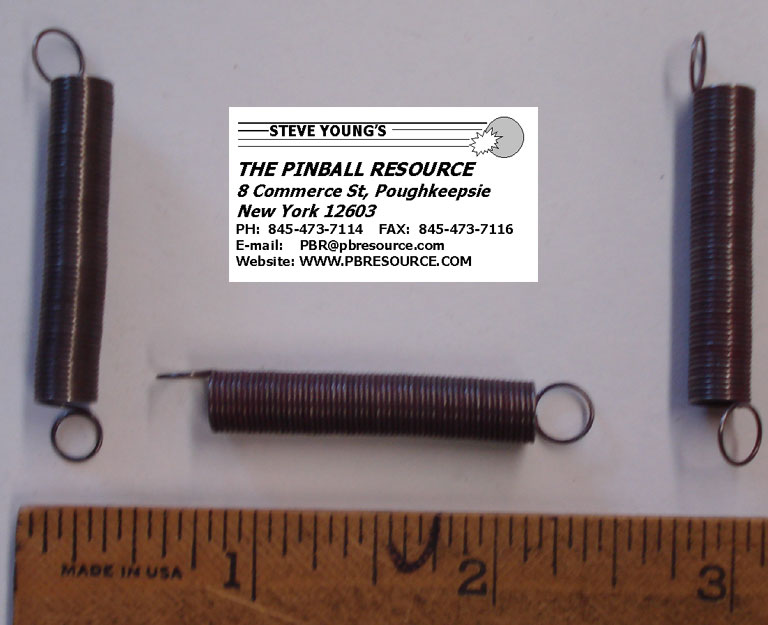

WLL-10A224 Out of Stock

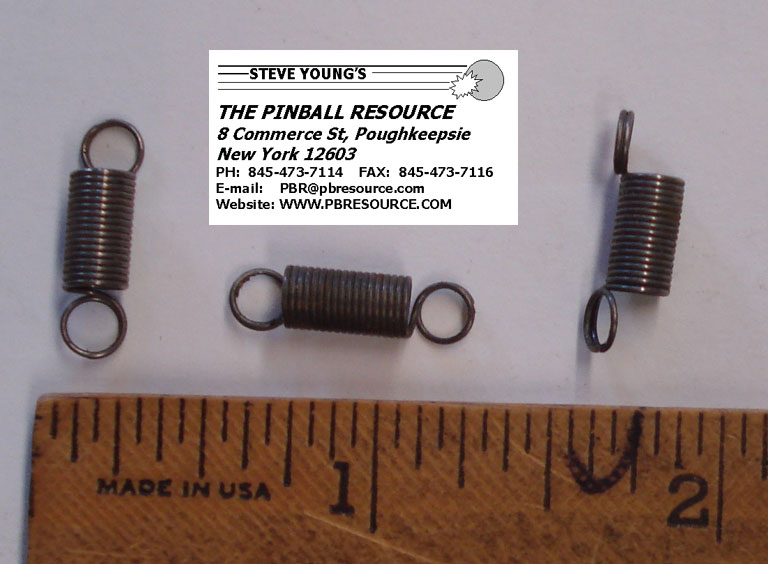

Spring


10A-233
10A233
10-233

WLL-10A233 Out of Stock

Spring


10A-234
10A234

10-234

WLL-10A234 Out of Stock

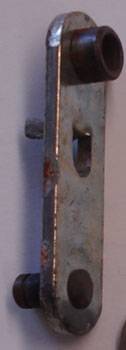

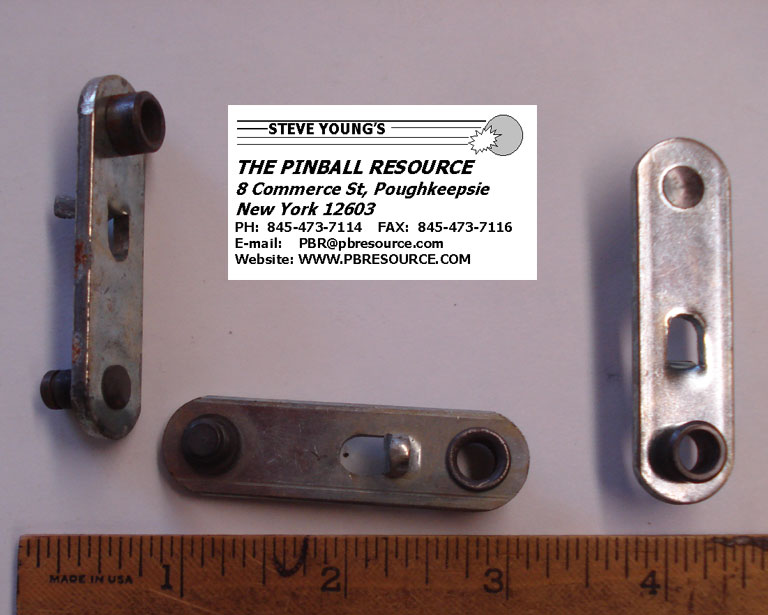

Crank Arm


A-6421



Only available Used

WLL-A6421 $5.40ea

Coil Stop

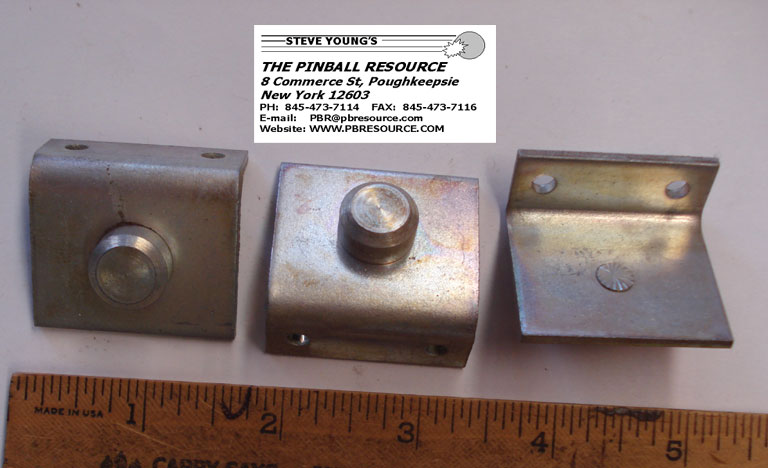

A-6383



Only available Used

WLL-A6383 $4.50ea

Pin


2A-3011
2A3011
02-3011

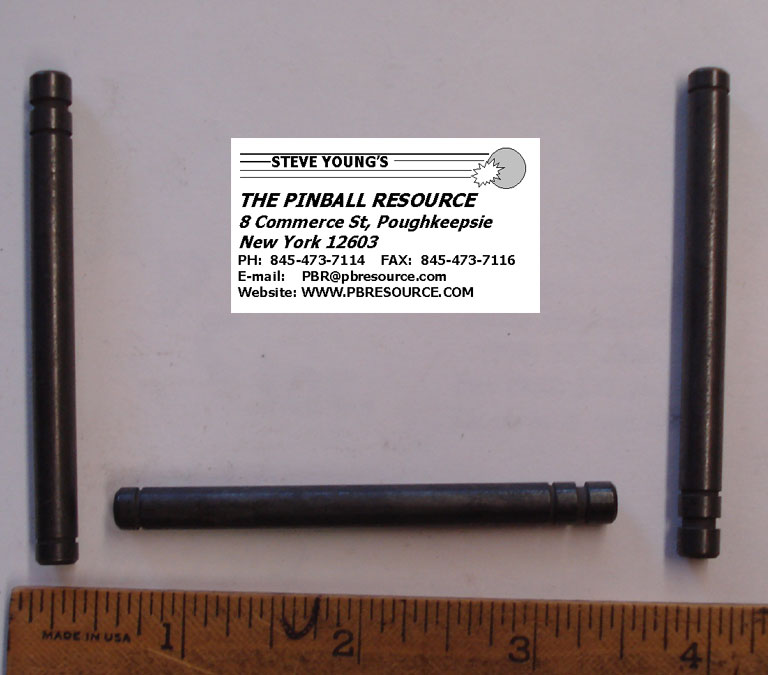

WLL-2A3011 $1.85ea

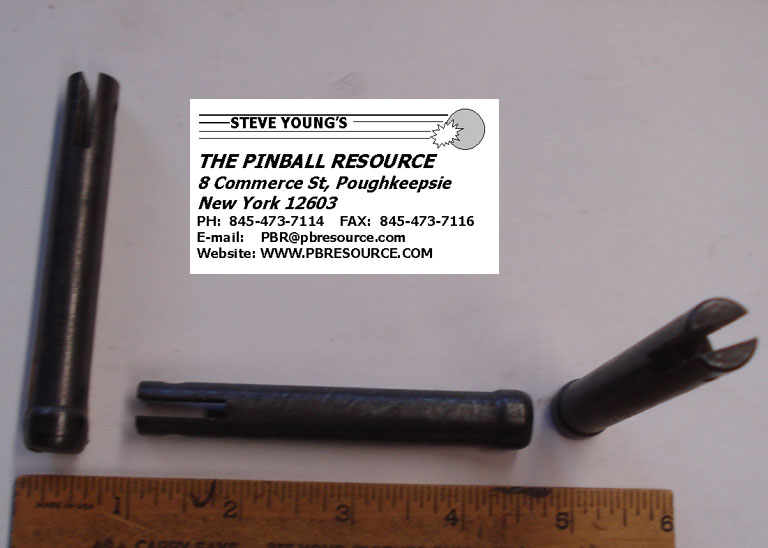

Plunger


2A-3014
2A3014
02-3014


Only available Used

WLL-2A3014 $3.40ea

Solenoid Mounting Bracket

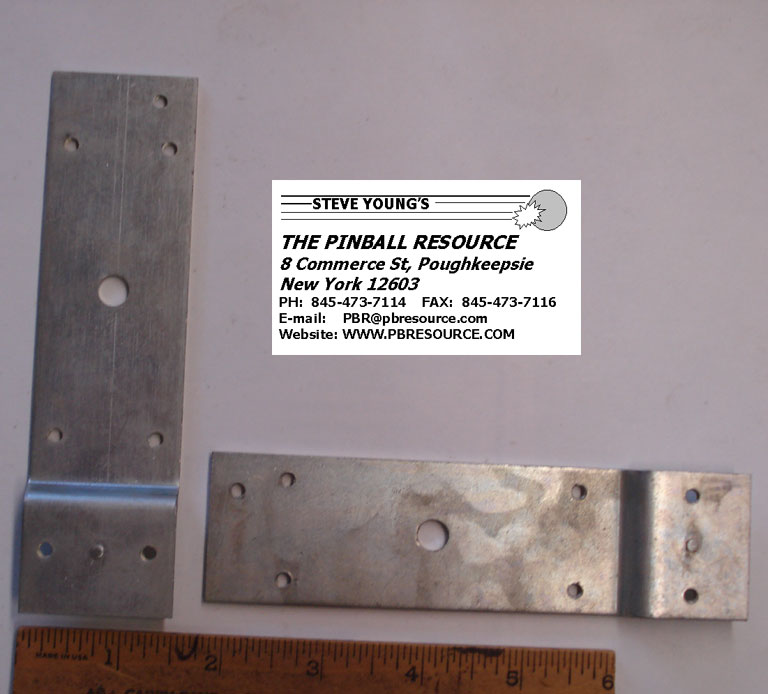

1A-3615
1A3615
01-3615


Only available Used

WLL-1A3615 $5.36ea

Nyliner


20-8790-7


Only available Used

WLL-20-8790-7 $0.68ea

Coil Mounting Bracket

1A-1792
1792


WLL-1A1792 $2.452ea

Williams
”Relay Bank Parts”-

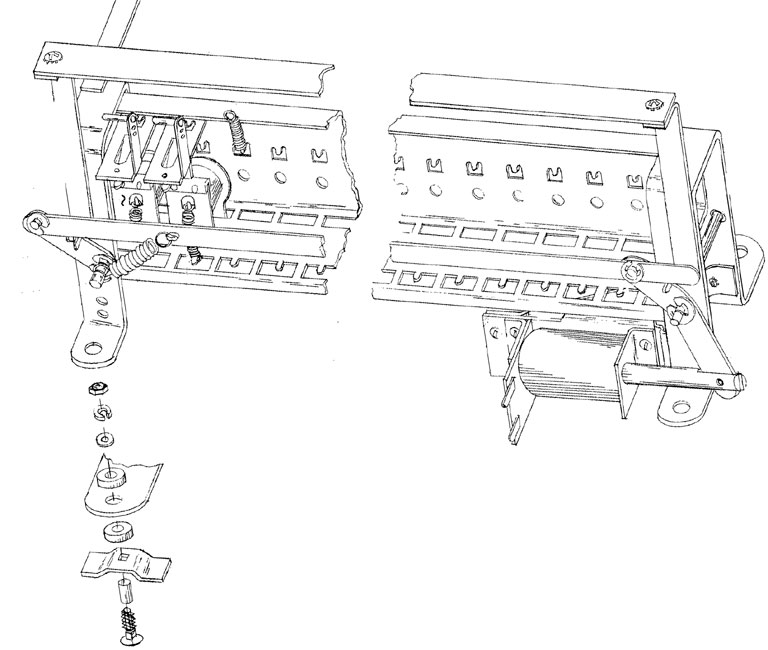

D-7310


Actuating Arm

A-6446



Only available Used

WLL-A6446 $3.50ea

Armature Plate

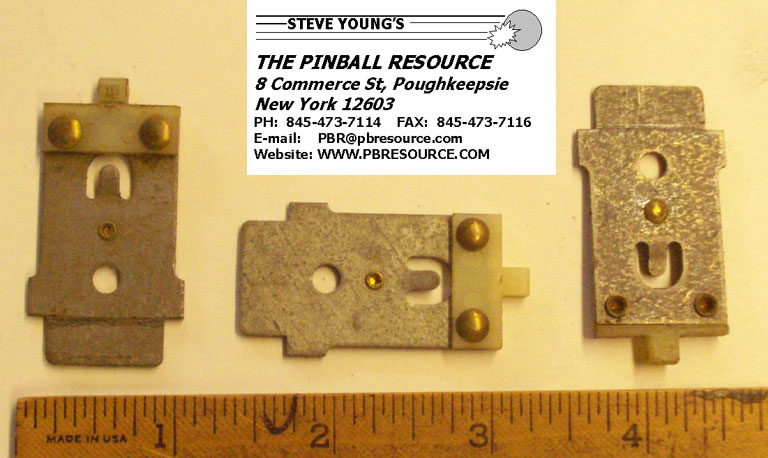

A-7282



Only available Used

WLL-A7282 $2.98ea

Crank Arm


A-6421



Only available Used

WLL-A6421 $5.40ea

Coil Stop


A-7303
A7303



Only available Used

WLL-A7303 $6.70ea

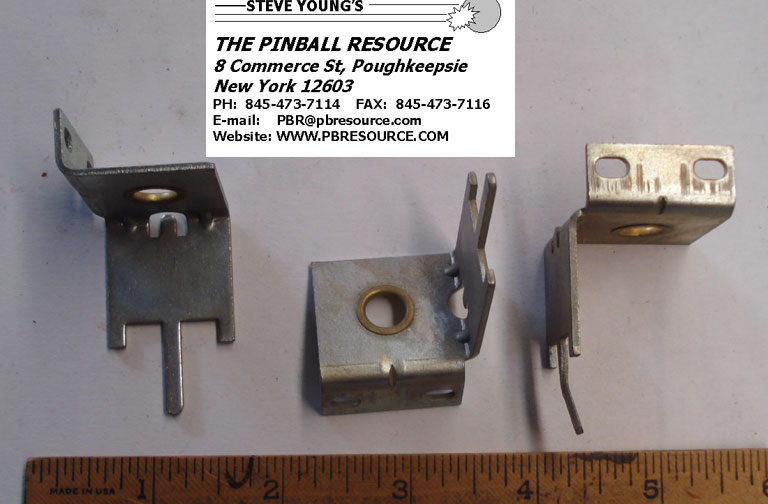

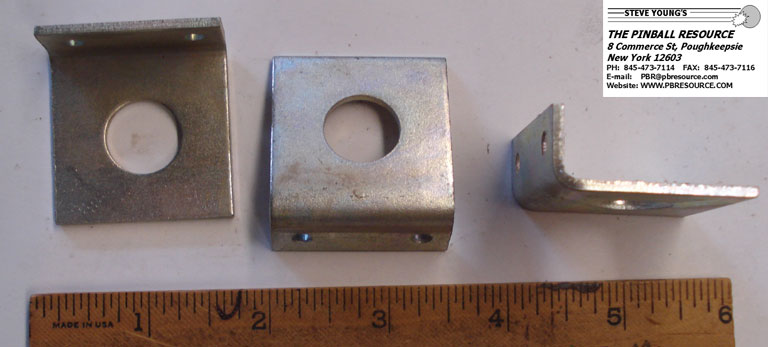

Coil Retaining Bracket


01-5152
1A-5152
1A5152



Only available Used

WLL-1A5152 $2.30ea

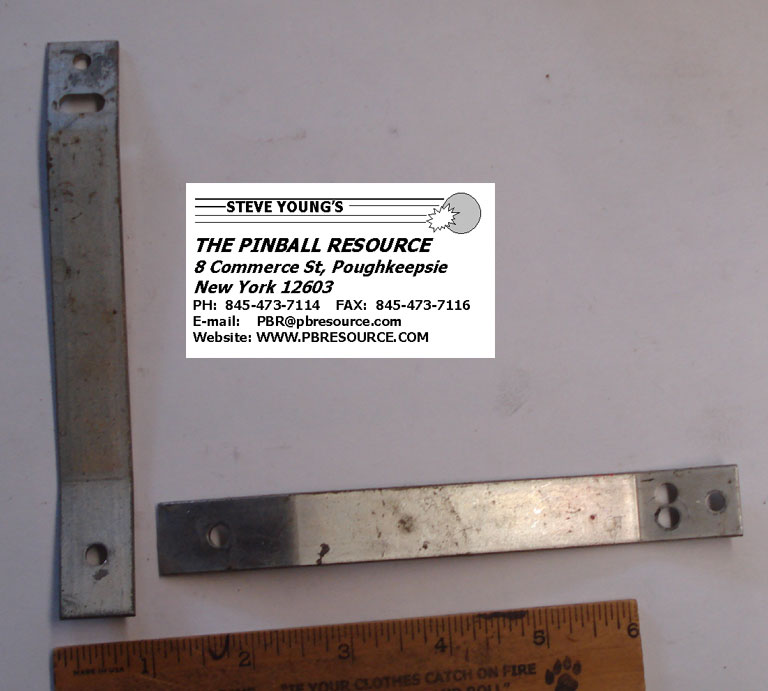

Solenoid Bracket


1A-5143
1A5143
01-5143


Only available Used

WLL-1A5143 $6.20ea

Solenoid Bracket


1A-5142
1A5142
01-5142


Only available Used

WLL-1A5142 $5.80ea

Plunger


2A-3014
2A3014
02-3014


Only available Used

WLL-2A3014 $3.40ea

Pin


2A-3011
2A3011
02-3011

WLL-2A3011 $1.85ea

Spring


10A-224
10A224
10-224

WLL-10A224 Out of Stock

Spring


10A-233
10A233
10-233

WLL-10A233 Out of Stock

Spring

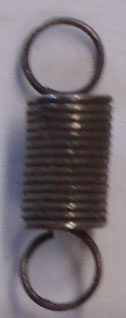

10A-234
10A234

10-234

WLL-10A234 Out of Stock

Spring


10A-242
10A242

10-242

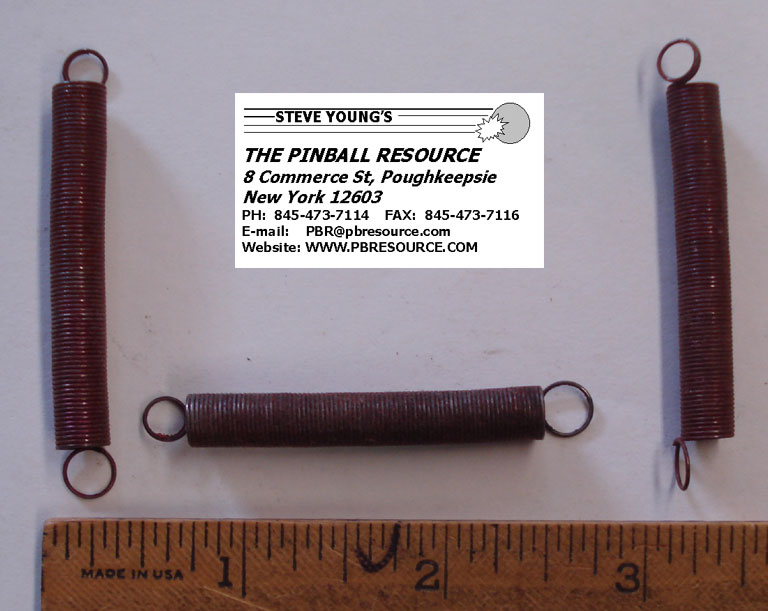

WLL-10-242 Out of Stock

Nyliner


20-8790-7


Only available Used

WLL-20-8790-7 $0.68ea

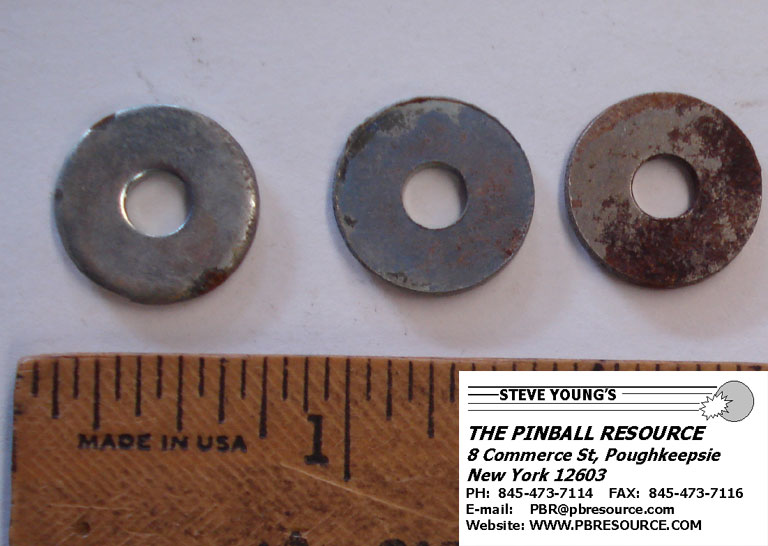

Washer


20A-8717-3
20-8717-3
20A8717-3


Only available Used

WLL-20-8717-3 $0.20ea

Washer


20A-8715-23
20-8715-23
20A8715-23


Only available Used

WLL-20-871523 $0.25ea

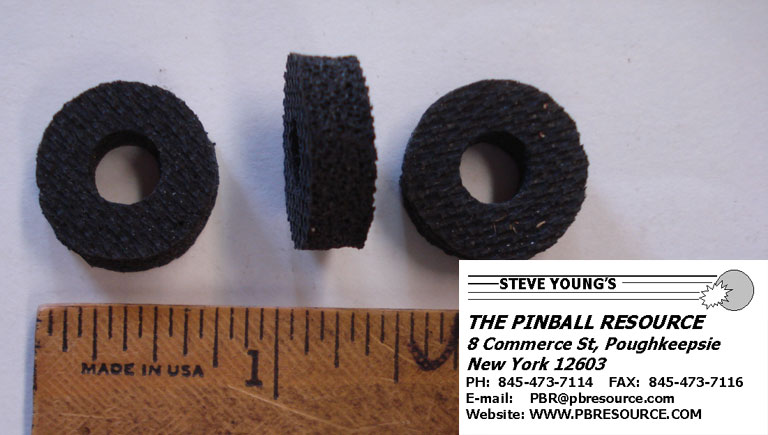

Shock Mount


23A-6330
23-6330
23A6330


WLL-23A6330 $0.50ea

Williams
Split Bank
”Relay Bank Parts”-

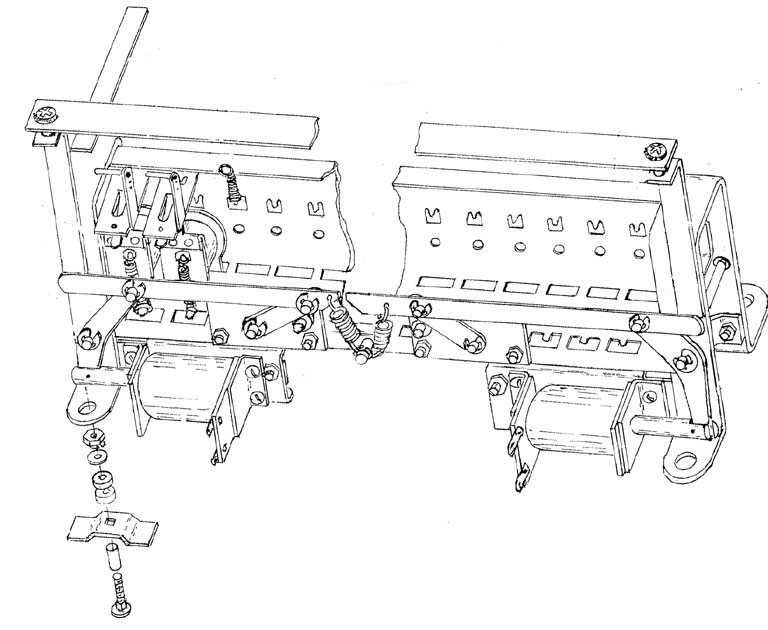

D-7429
Spanish Eyes
5 & 6 Position


Actuating Arm

A-6446



Only available Used

WLL-A6446 $3.50ea

Armature Plate


A-7282



Only available Used

WLL-A7282 $2.98ea

Spring


10A-233
10A233
10-233

WLL-10A233 Out of Stock

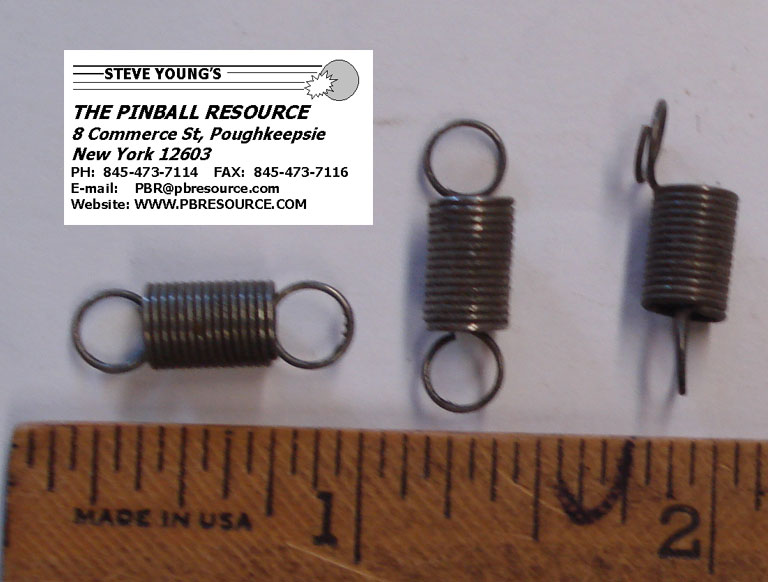

Spring


10A-234
10A234

10-234

WLL-10A234 Out of Stock

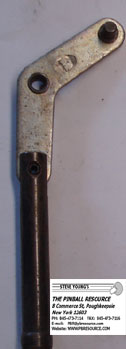

Crank Arm with Plunger


Used on Spanish Eyes,
Gulf Stream, and Granada

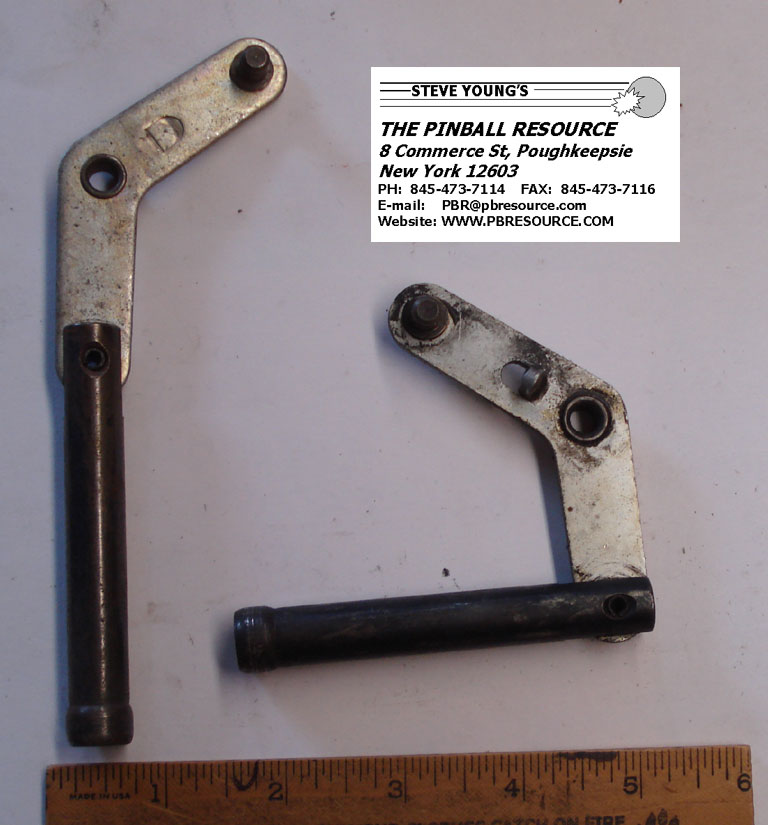

A-6420-A
A-6420A



Only available Used

WLL-A6420-A $9.20ea

Plunger


2A-3014
2A3014
02-3014


Only available Used

WLL-2A3014 $3.40ea


1B5504-5 Shown


1B5504-6 Shown

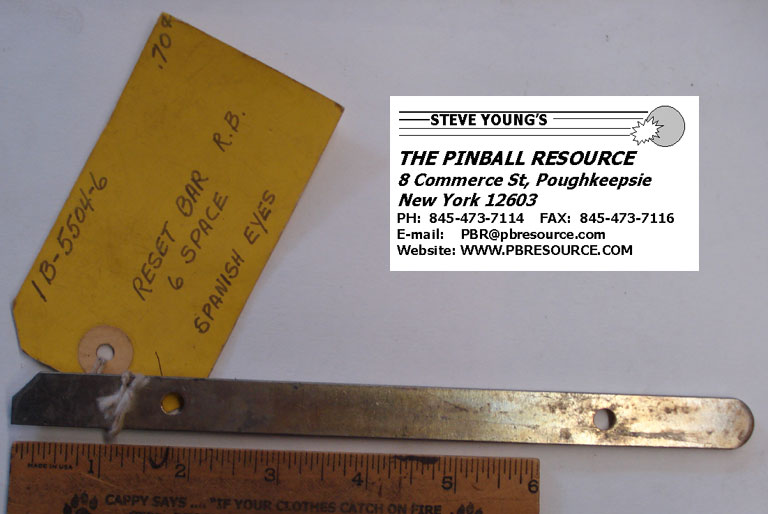

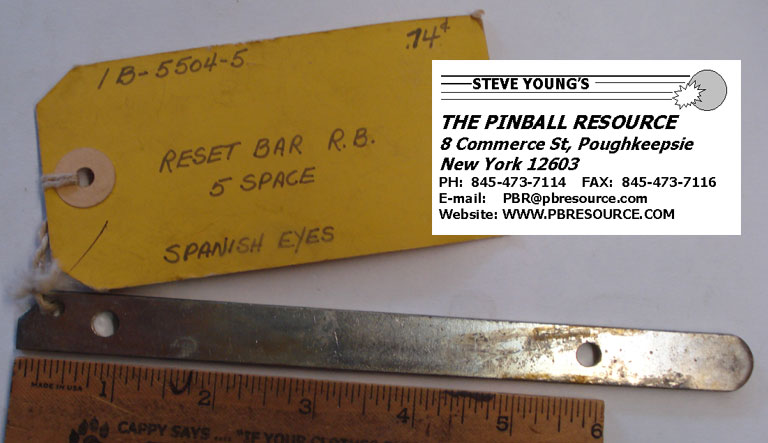

Reset Bars


For
Spanish Eyes
Travel Time
Satin Doll(-5 Only)
Pat Hand(-5Only)
Lucky Ace(-5 Only)

1B5504-5L
(5 Spaces)


1B5504-6L
(6 Spaces)

WLL-1B5504-5 $4.65ea

WLL-1B5504-6 $4.95ea

Washer


20A-8715-23
20-8715-23
20A8715-23


Only available Used

WLL-20-871523 $0.25ea

Shock Mount


23A-6330
23-6330
23A6330


WLL-23A6330 $0.50ea

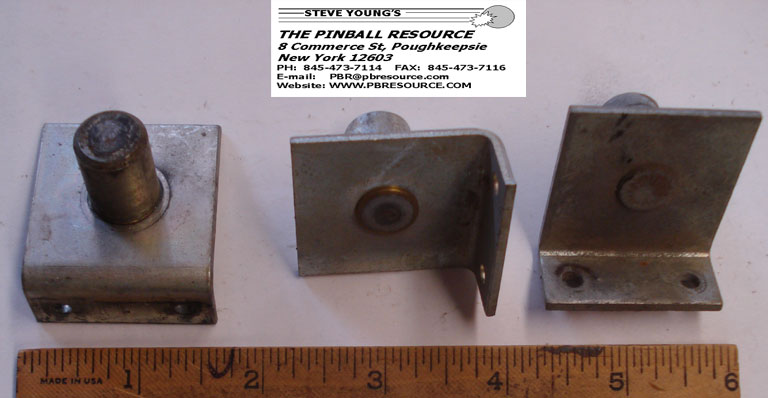

Coil Stop


A-7303
A7303



Only available Used

WLL-A7303 $6.70ea

Coil Retaining Bracket


01-5152
1A-5152
1A5152



Only available Used

WLL-1A5152 $2.30

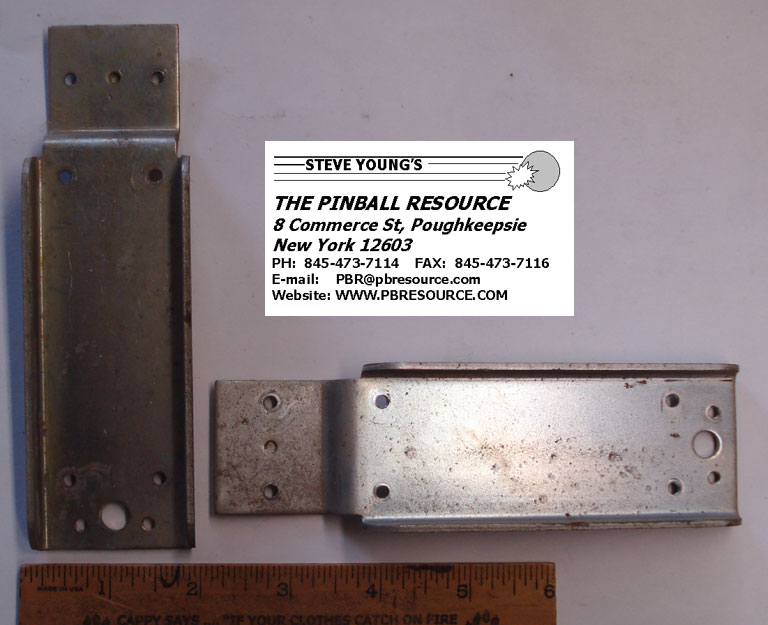

Solenoid Bracket


1A-5142
1A5142
01-5142


Only available Used

WLL-1A5142 $5.80ea

Crank Arm


A-6421



Only available Used

WLL-A6421 $5.40ea

Solenoid Bracket


1A-5143
1A5143
01-5143


Only available Used

WLL-1A5143 $6.20ea

Pin


2A-3011
2A3011
02-3011

WLL-2A3011 $1.85ea

Nyliner


20-8790-7


Only available Used

WLL-20-8790-7 $0.68ea

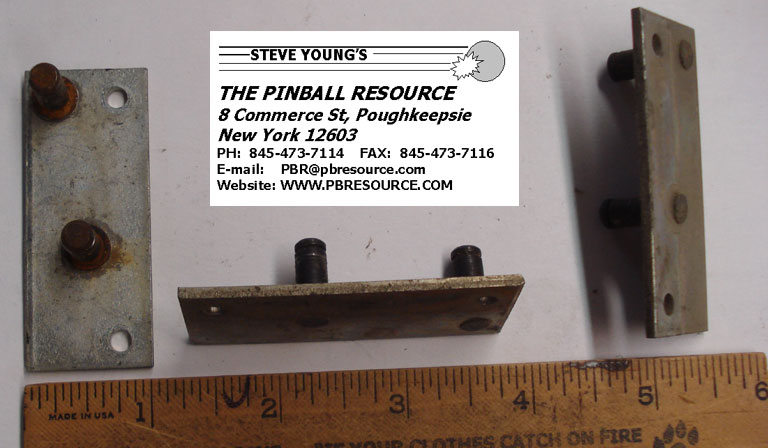

Link Mounting Plate Left


A-7427-L


Only available Used

WLL-A7427-L $5.30ea

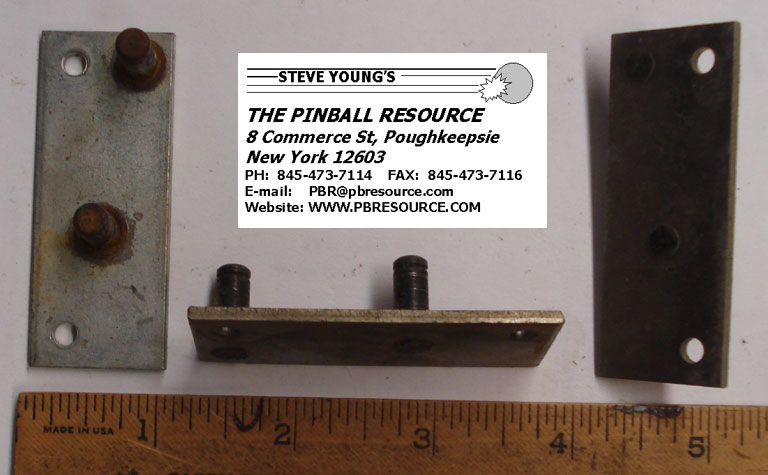

Link Mounting Plate Right


A-7427-R


Only available Used

WLL-A7427-R $5.30ea

Williams
Split Bank
”Relay Bank Parts”-

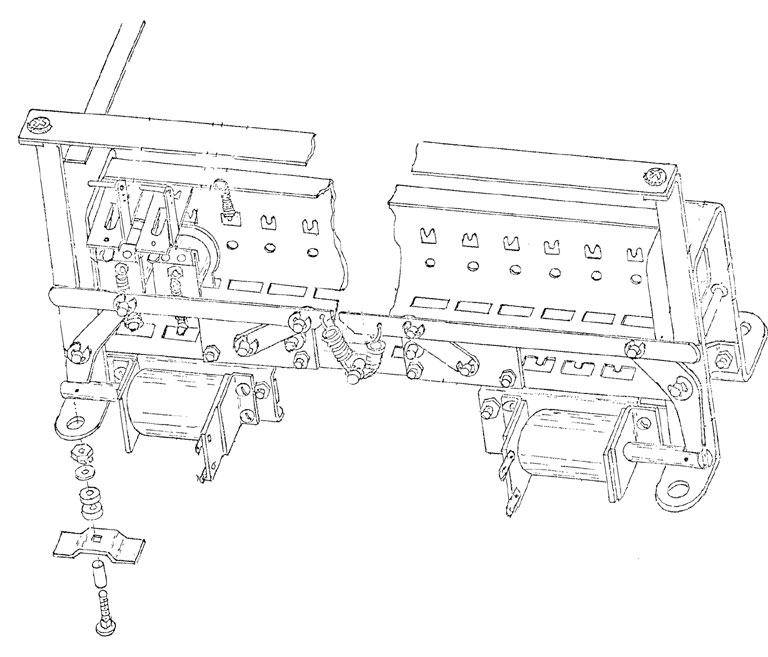

D-7441
Used on Granada
7 & 10 Position

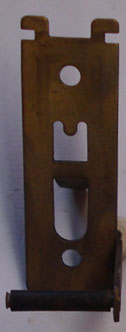

Actuating Arm

A-6446



Only available Used

WLL-A6446 $3.50ea

Armature Plate


A-7282



Only available Used

WLL-A7282 $2.98ea

Spring


10A-233
10A233
10-233

WLL-10A233 Out of Stock

Spring


10A-234
10A234

10-234

WLL-10A234 Out of Stock

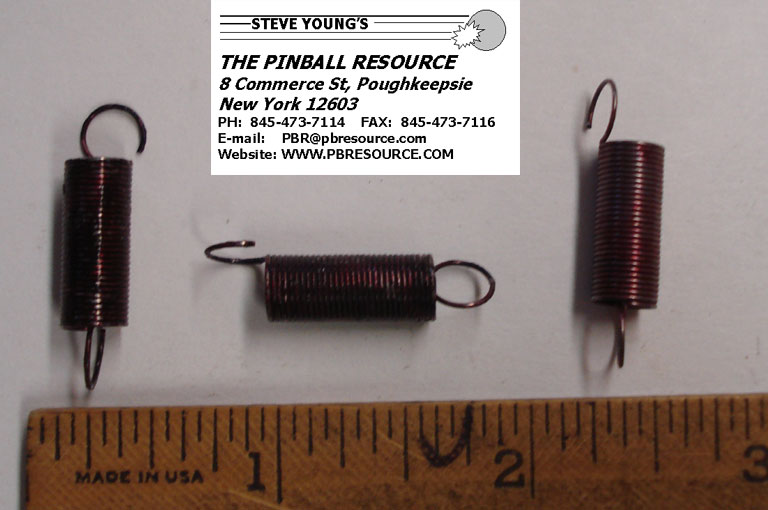

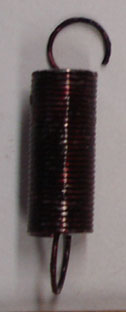

Spring


10A-320
10A320

10-320

WLL-10-320 $0.95ea

Plunger


2A-3014
2A3014
02-3014


Only available Used

WLL-2A3014 $3.40ea

Crank Arm with Plunger


Used on Spanish Eyes,
Gulf Stream, and Granada


A-6420-A
A-6420A



Only available Used

WLL-A6420-A $9.20ea

Washer


20A-8715-23
20-8715-23
20A8715-23


Only available Used

WLL-20-871523 $0.25ea

Shock Mount


23A-6330
23-6330
23A6330


WLL-23A6330 $0.50ea

Coil Stop


A-7303
A7303



Only available Used

WLL-A7303 $6.70ea

Coil Retaining Bracket


01-5152
1A-5152
1A5152



Only available Used

WLL-1A5152 $2.30ea

Link Mounting Plate Left


A-7427-L


Only available Used

WLL-A7427-L $5.30ea

Link Mounting Plate Right


A-7427-R


Only available Used

WLL-A7427-R $5.30ea

Crank Arm


A-6421



Only available Used

WLL-A6421 $5.40ea

Solenoid Bracket


1A-5143
1A5143
01-5143


Only available Used

WLL-1A5143 $6.20ea

Pin


2A-3011
2A3011
02-3011

WLL-2A3011 $1.85ea

Nyliner


20-8790-7


Only available Used

WLL-20-8790-7 $0.68ea

United
”Relay Bank Parts”-

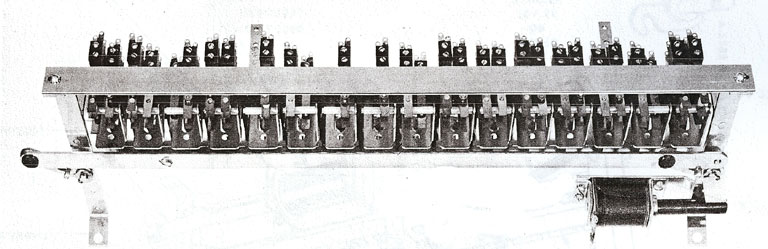

C-6661
(Bowler & Shuffle Alleys – Old Style)


Actuating Arm

A-6446



Only available Used

WLL-A6446 $3.50ea

Armature Plate


A-6445



Only available Used – Some of these have the hook bent and some are straight

WLL-A6445 Out of Stock

Coil Stop

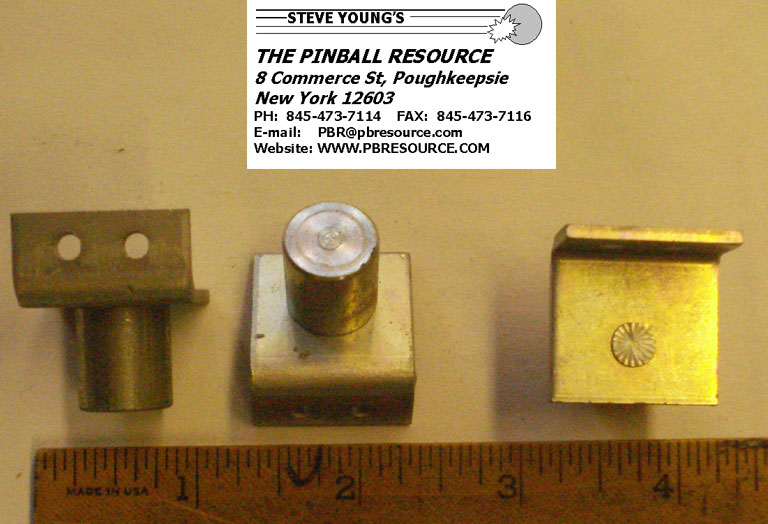

A-6666



Only available Used

WLL-A6666 $7.35ea

Spring


10A-233
10A233
10-233

WLL-10A233 Out of Stock

Spring


10A-234
10A234

10-234

WLL-10A234 Out of Stock

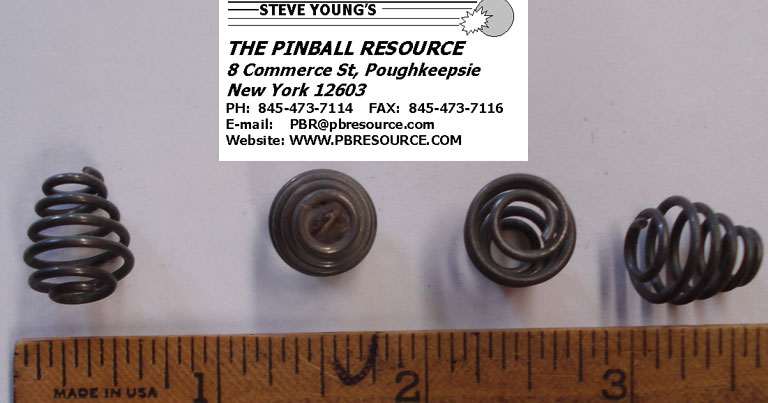

Spring


10A-240
10A240

10-240

WLL-10A240 $1.10ea

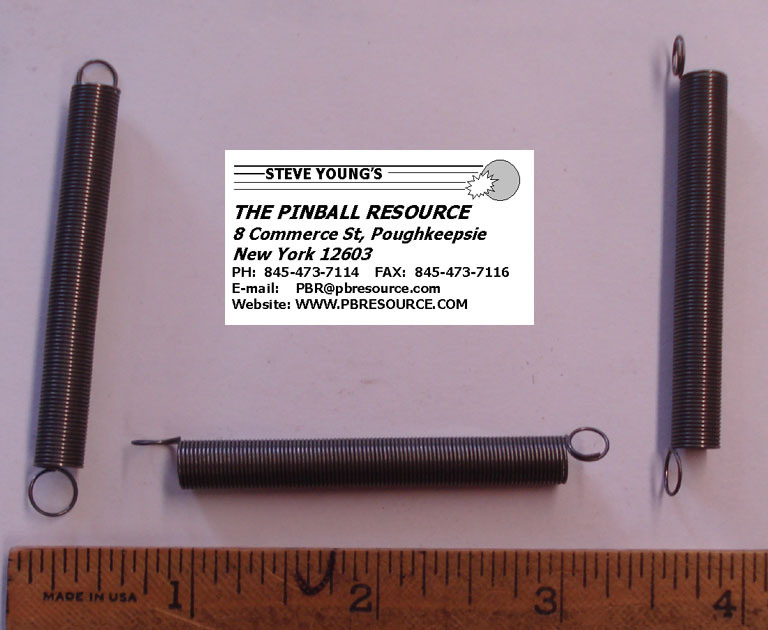

Spring


10A-227
10A227

10-227

WLL-10-227+ $0.98ea

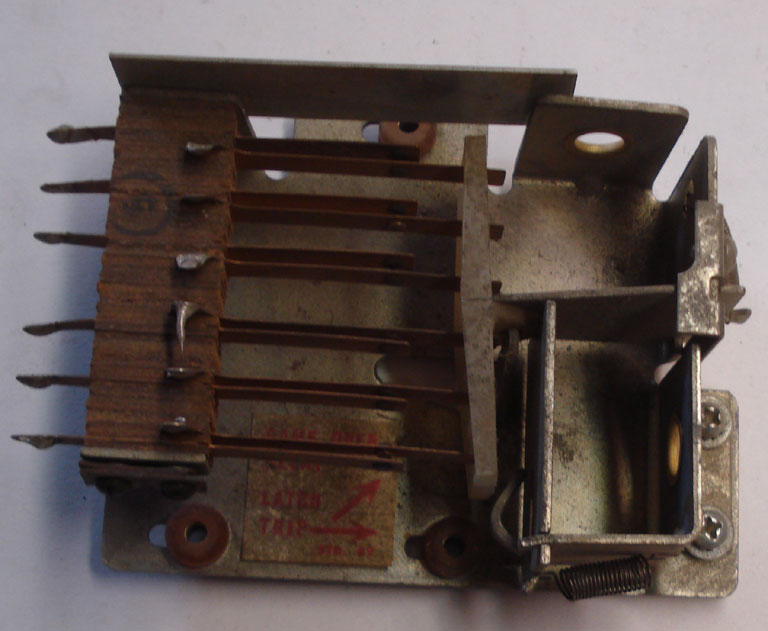

Williams

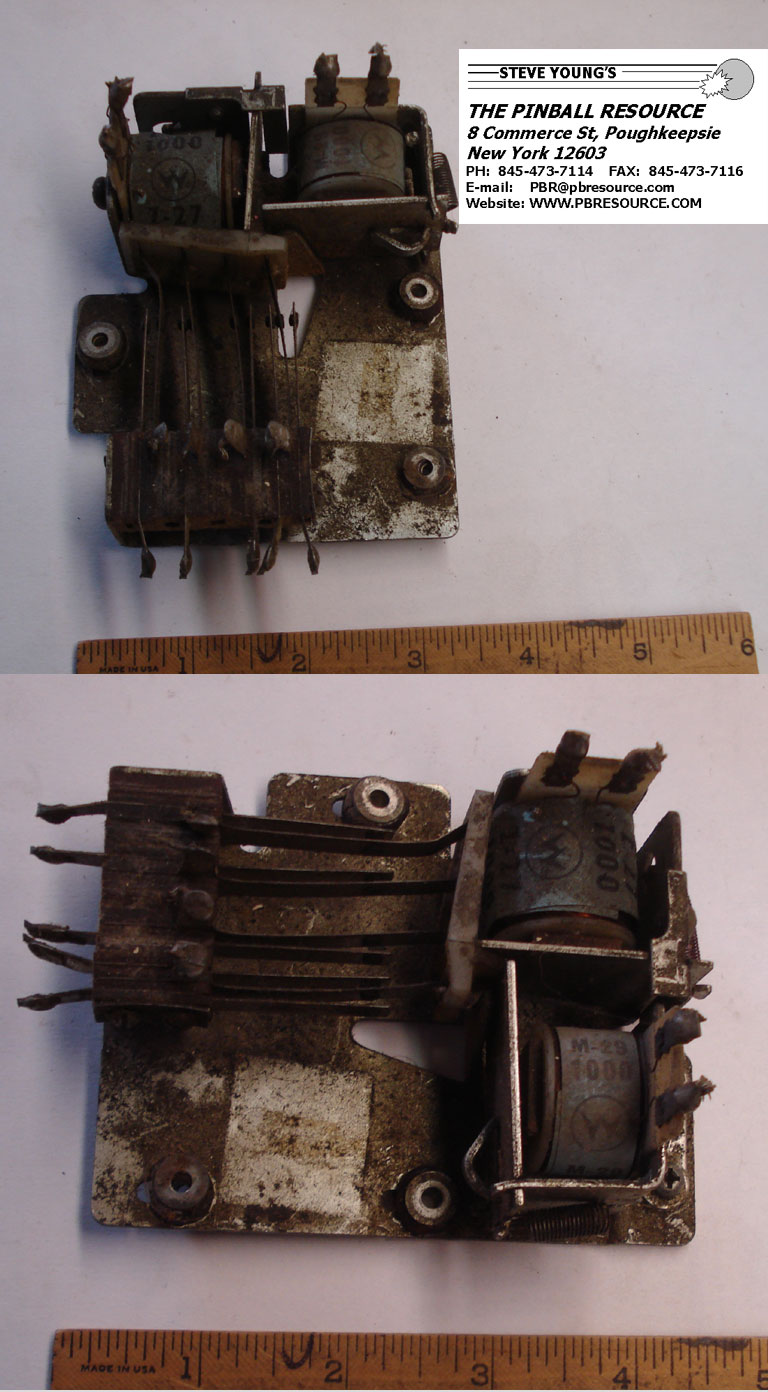

Latch Type Relay

B-6342


Used 3 Slot Latch Type Relay Assembly


B-6342-3

We have multiple of these, thus the one you receive will not match the pictures.

WLL-B6342-3 $11.62ea

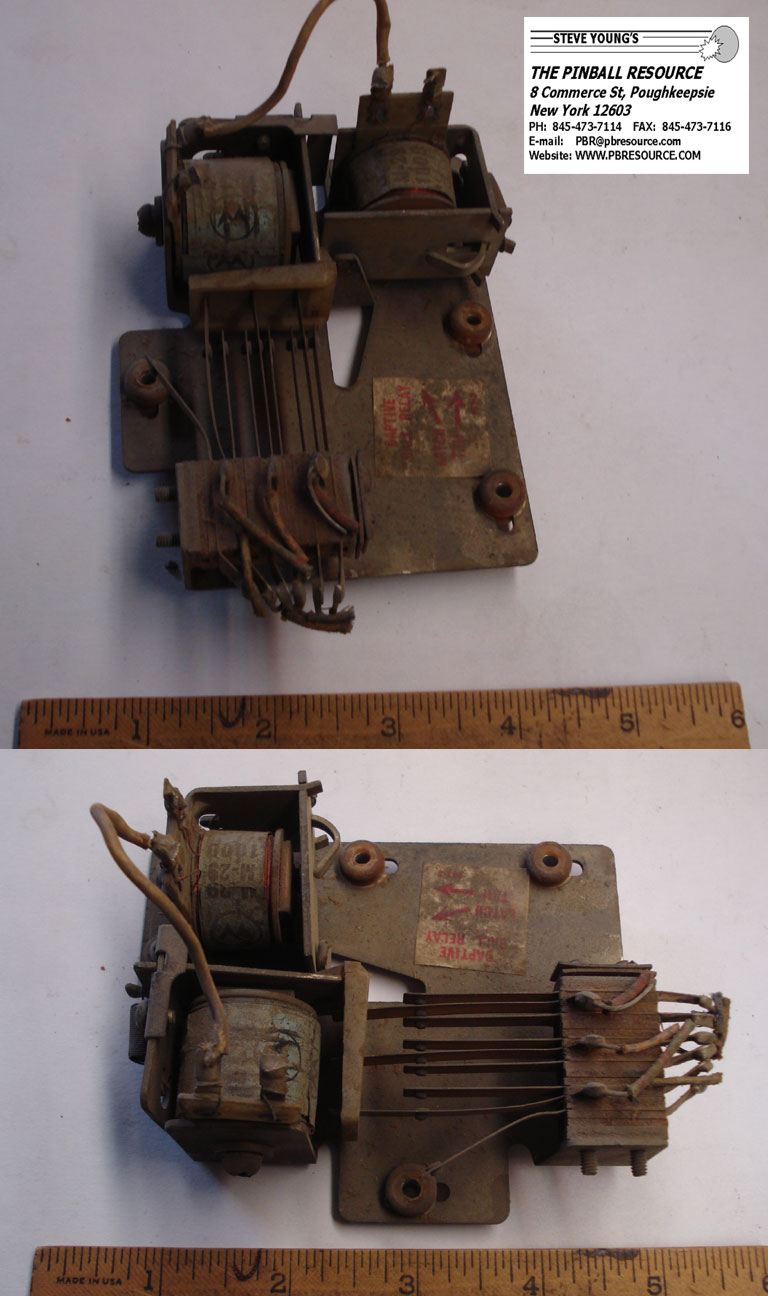

Used 4 Slot Latch Type Relay Assembly


B-6342-4

We have multiple of these, thus the one you receive will not match the pictures.

WLL-B6342-4 Out of Stock

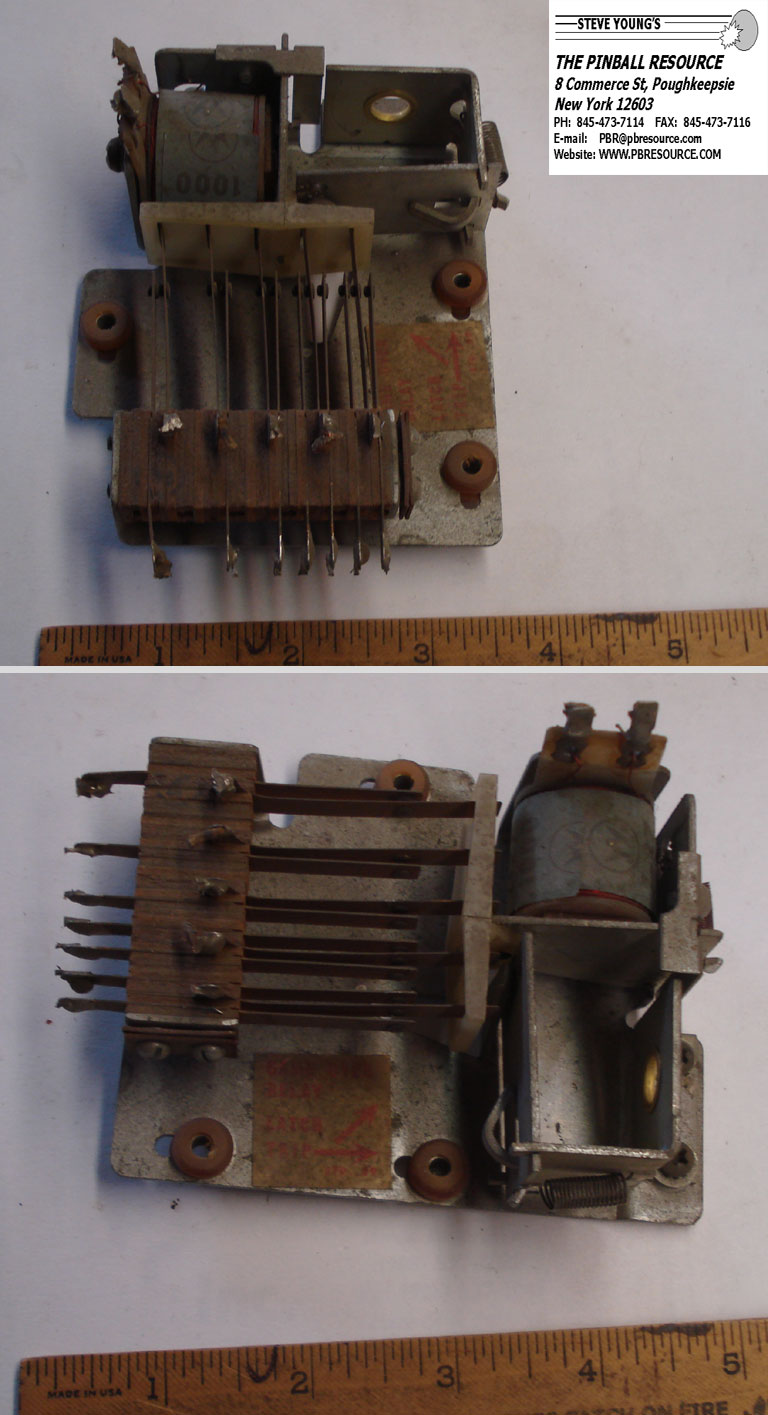

Used 5 Slot Latch Type Relay Assembly


B-6342-5

We have multiple of these, thus the one you receive will not match the pictures.

WLL-B6342-5 $11.62ea

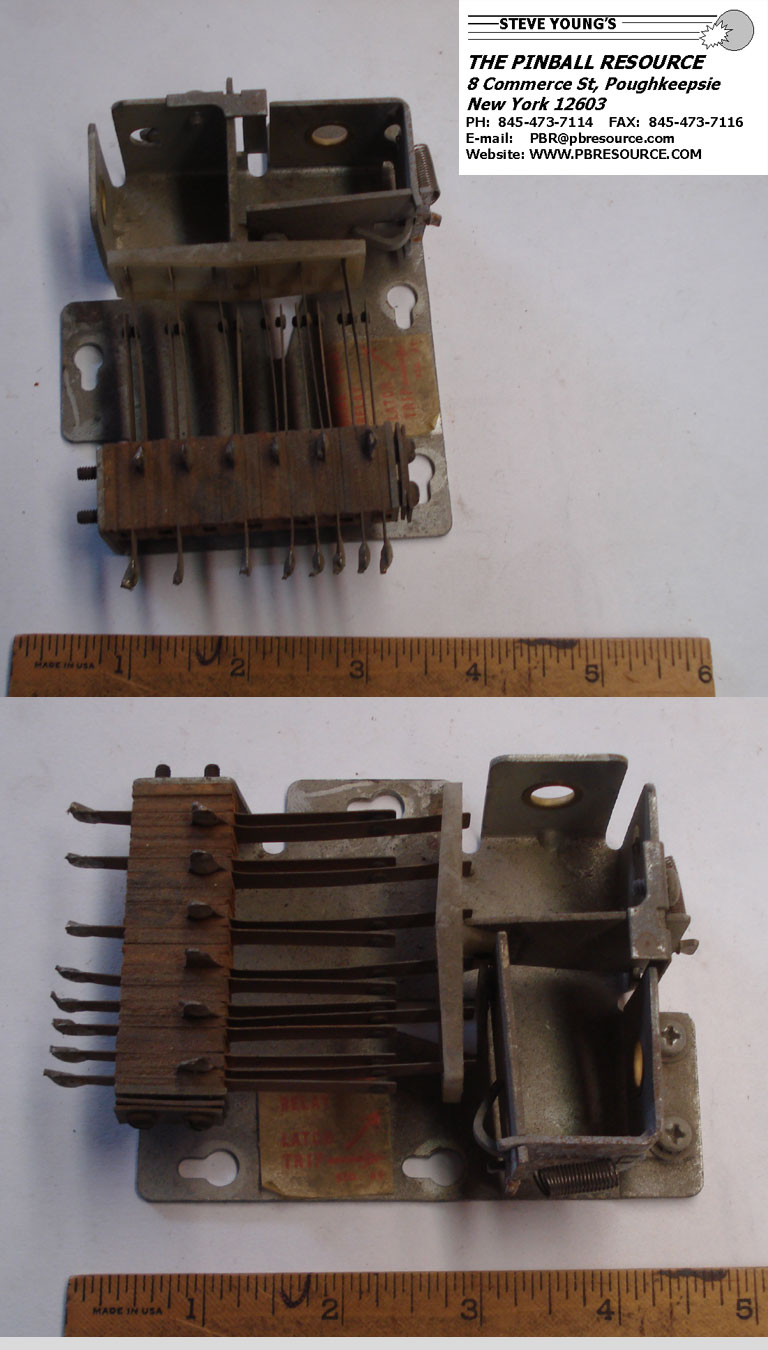

Used 6 Slot Latch Type Relay Assembly


B-6342-6

We have multiple of these, thus the one you receive will not match the pictures.

WLL-B6342-6 $11.62ea

Trip Coil Frame


A-6223

WLL-A6223 Out of Stock

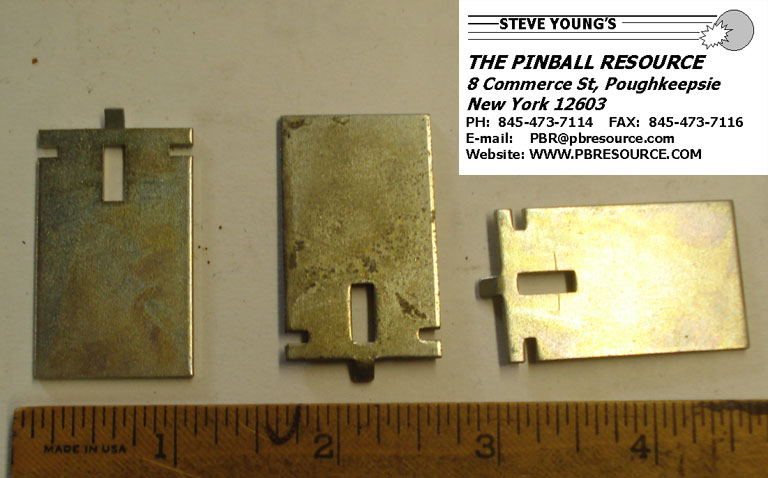

Trip Armature


1A-3251-1
1A3251-1
01-3251-1

WLL-1A3251-1 $2.10ea

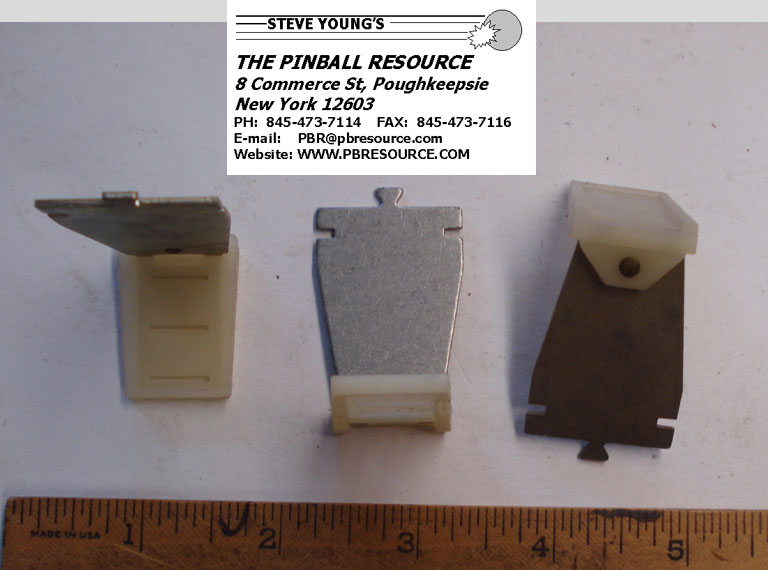

3 Slot L
Armature Plate


A-6214-3

WLL-A6214-3 Out of Stock

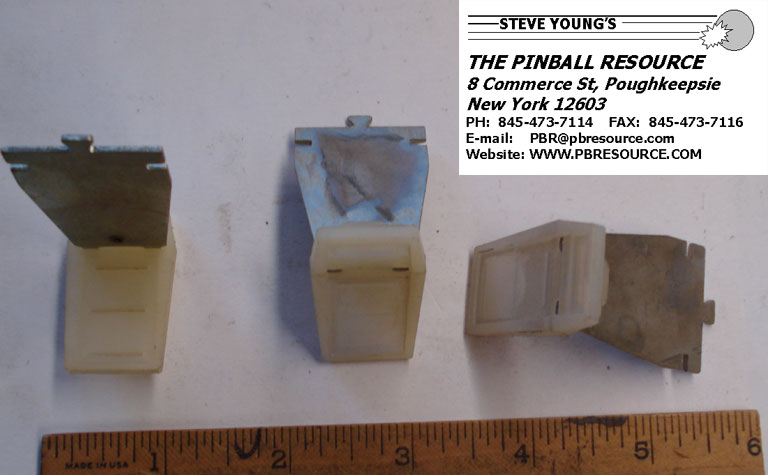

4 Slot L
Armature Plate


A-6214-4

WLL-A6214-4 $3.85ea

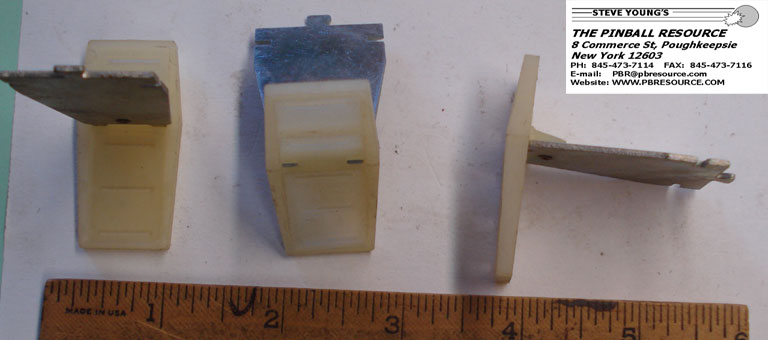

5 Slot L
Armature Plate


A-6214-5

WLL-A6214-5 Out of Stock

5A Slot L
Armature Plate


A-6214-5A

WLL-A6214-5A $4.85ea

6 Slot L
Armature Plate


A-6214-6

WLL-A6214-6 $3.85ea

Williams
Latch Type Relay

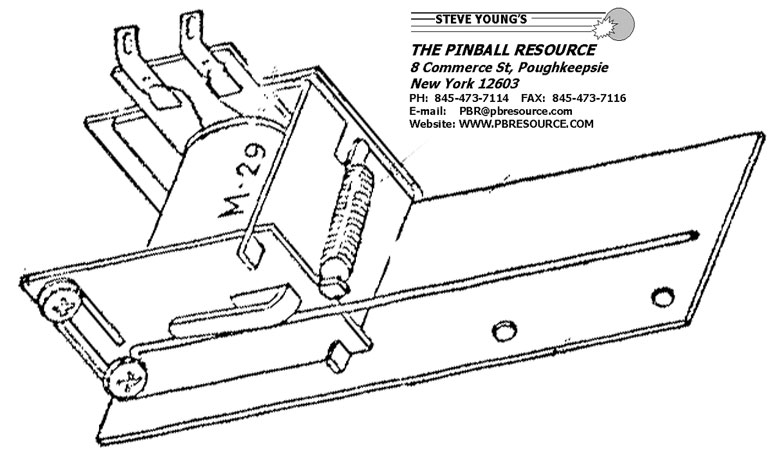

A-7249

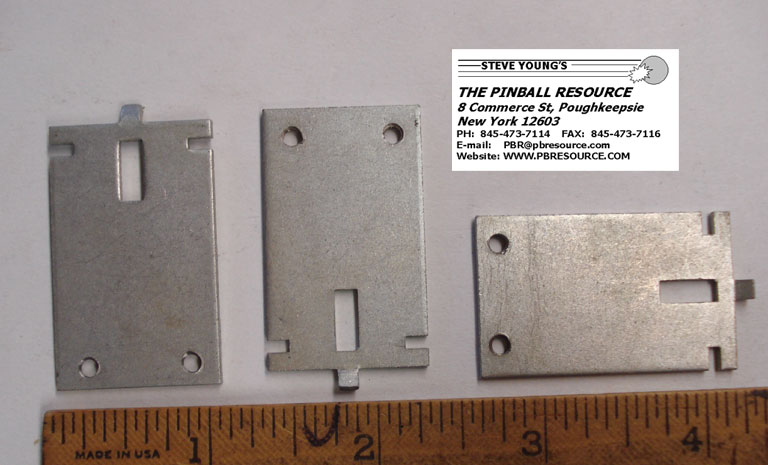

Armature Plate


1A-3971
1A3971
01-3971

WLL-01-3971 $1.78ea

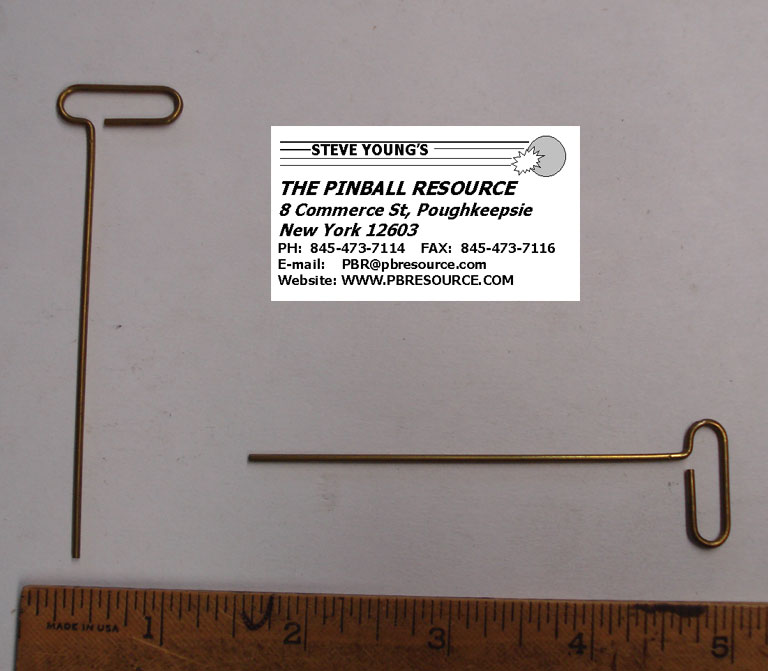

Actuator


12A-6342
12A6342
12-6342

WLL-12A6342 Out of Stock

Williams
Interlock Relay

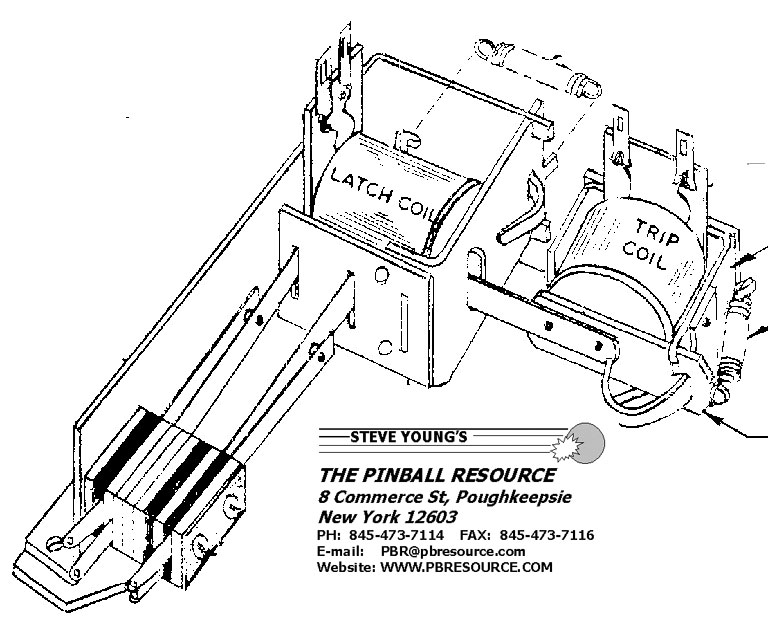

B-4938



No Parts Currently In Stock for this type of Relay


Williams
Interlock Relay

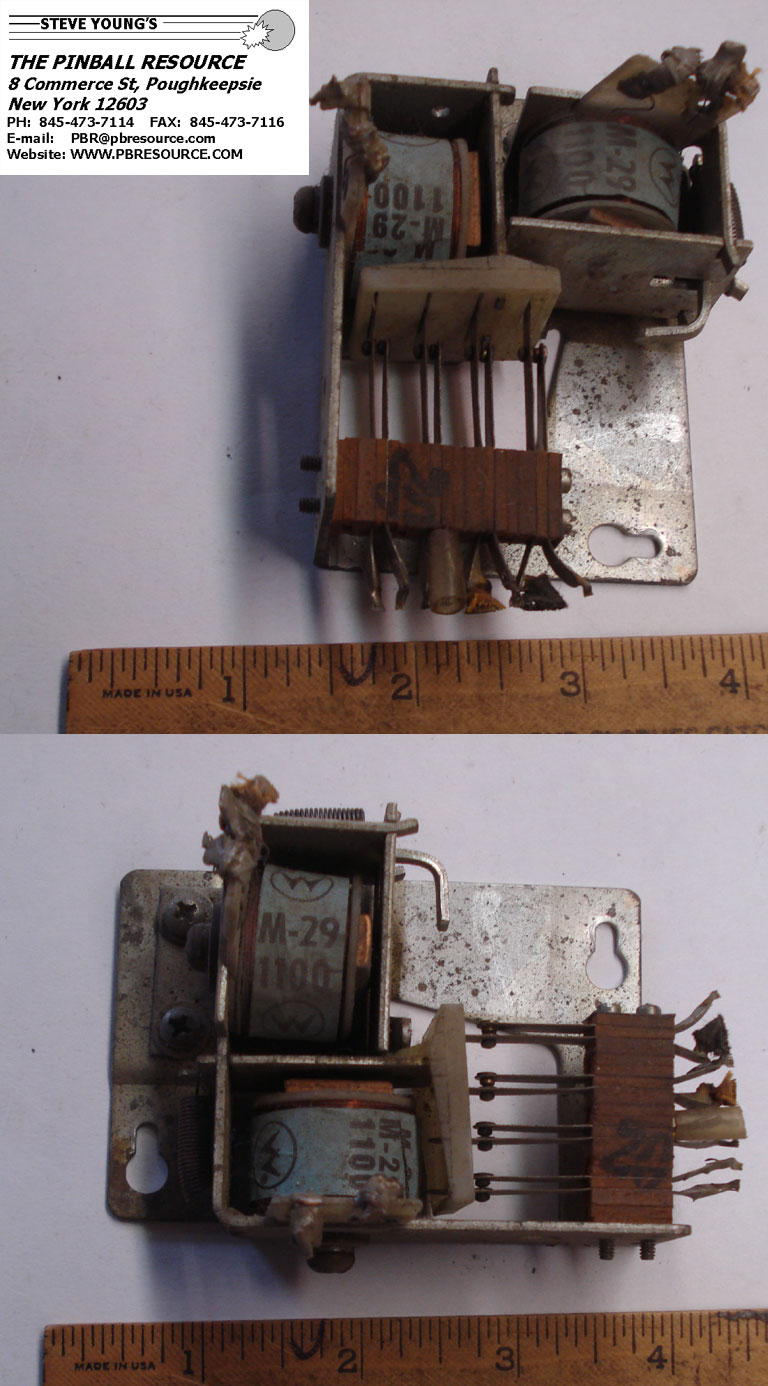

B-6225


Used 4 Slot Interlock Relay Assembly


B-6225

We have multiple of these, thus the one you receive will not match the pictures.

WLL-B6225-4 Out of Stock

Trip Coil Frame


A-6223

WLL-A6223 $4.25ea

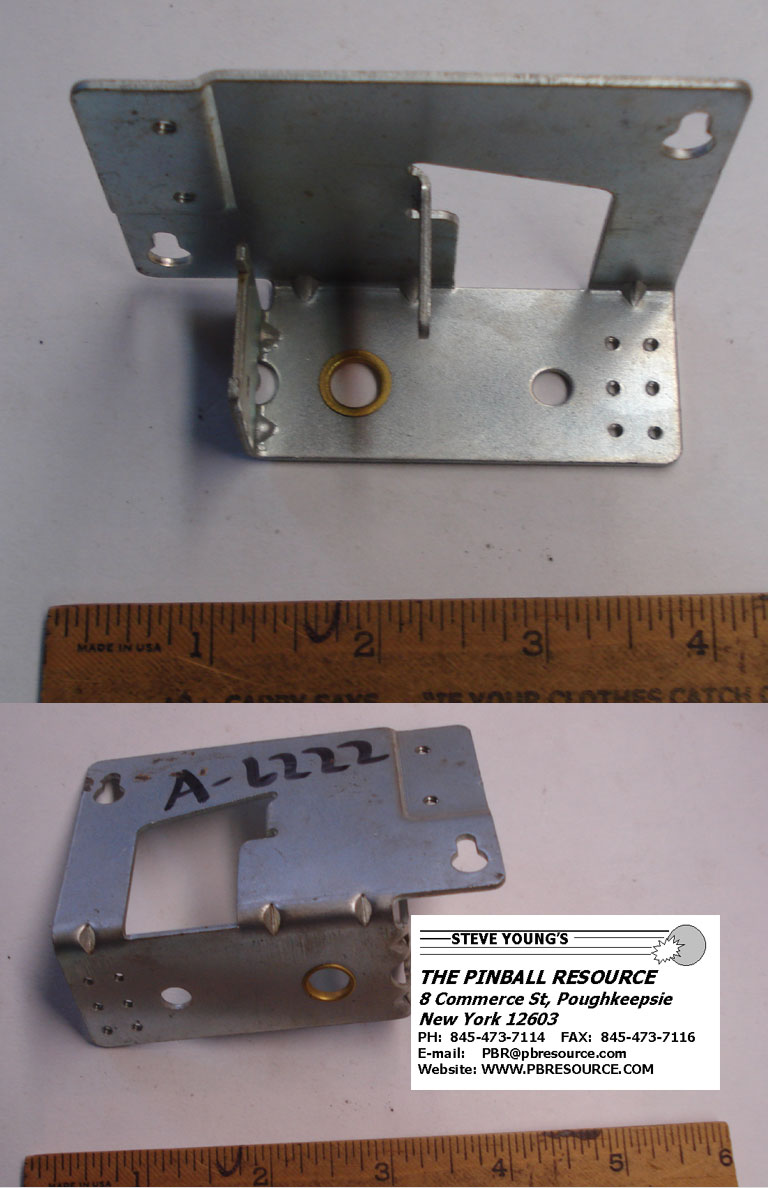

Mounting Frame


A-6222

WLL-A6222 $4.60ea

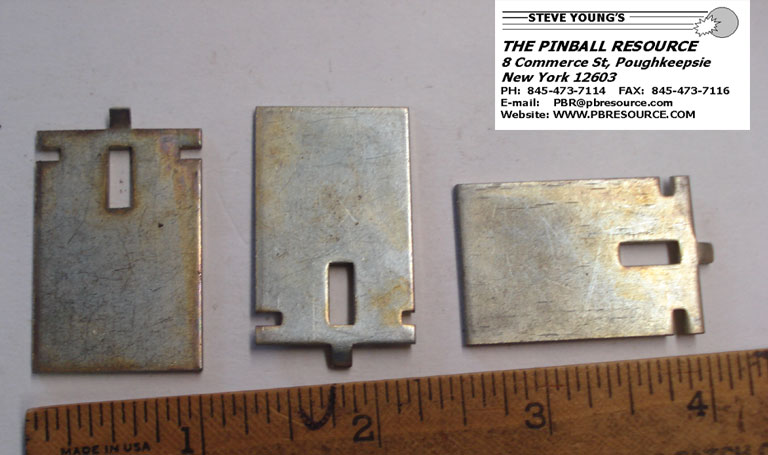

Armature Plate


01-3251
1A3251
1A-3251

WLL-01-3251 $1.87ea

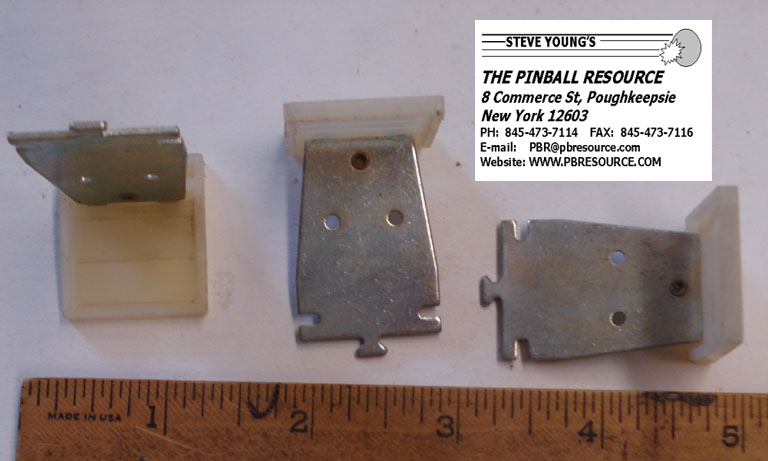

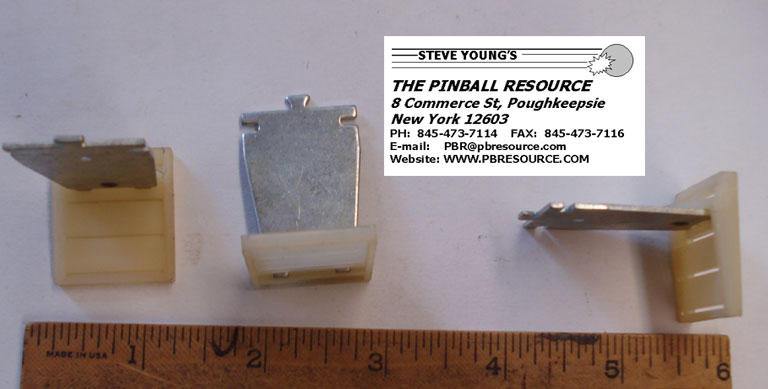

Armature Plate


B-6067

These may have a single hole or no hole on the metal arm

WLL-B6067 Out of Stock

Williams
”E” Relay

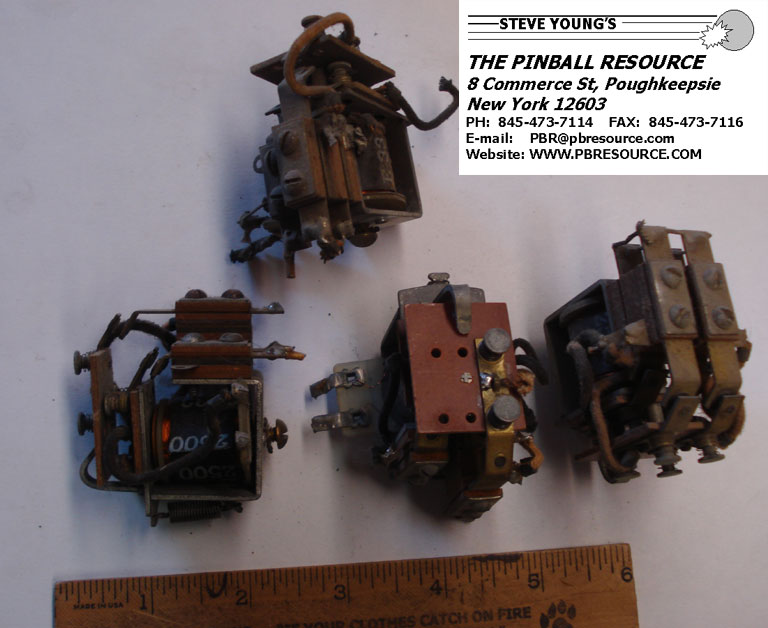

C-5735


Used “E” Relay Assembly


C-5735

We have multiple of these, thus the one you receive will not match the pictures. You need to tell us how many sets of contacts you need on the assembly.

WLL-C5735 $22.00ea

Grommet


23A-6420

23A6420
23-6420

WLL-23-6420+ $0.29ea

Williams
”L” Relay

A-6216

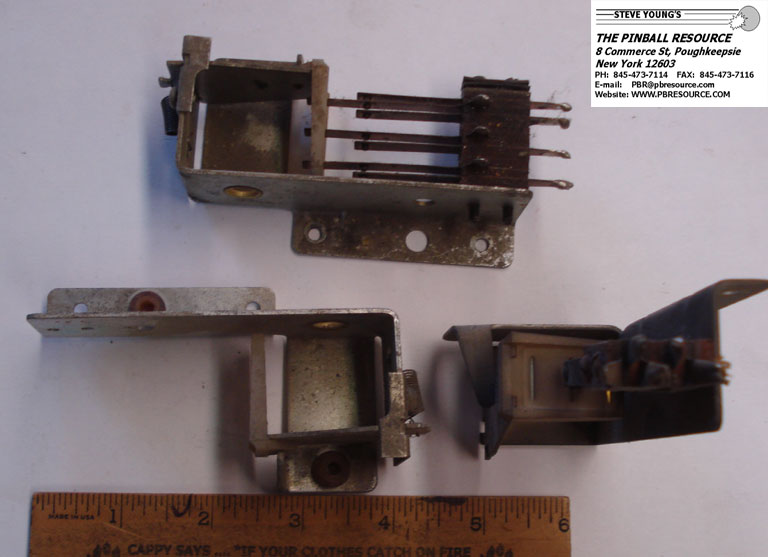

Used 3 Slot L Relay Assembly


A-6216

We have multiple of these, thus the one you receive will not match the pictures. The used assembly will have the frame and armature plate(Switches and springs will not be included)

WLL-A6216-3 $11.00ea

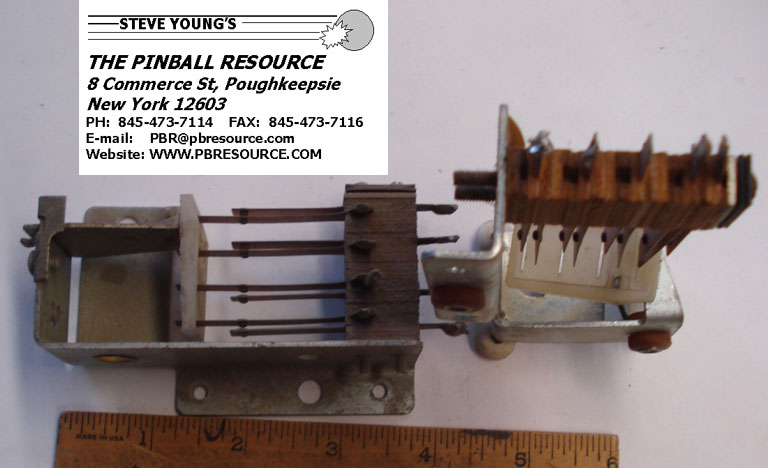

Used 4 Slot L Relay Assembly


A-6216

We have multiple of these, thus the one you receive will not match the pictures. The used assembly will have the frame and armature plate(Switches and springs will not be included)

WLL-A6216-4 Out of Stock

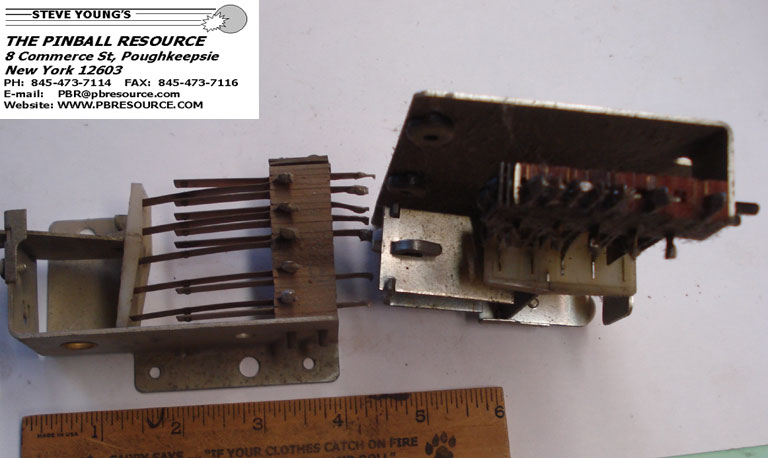

Used 5 Slot L Relay Assembly


A-6216

We have multiple of these, thus the one you receive will not match the pictures. The used assembly will have the frame and armature plate(Switches and springs will not be included)

WLL-A6216-5 Out of Stock

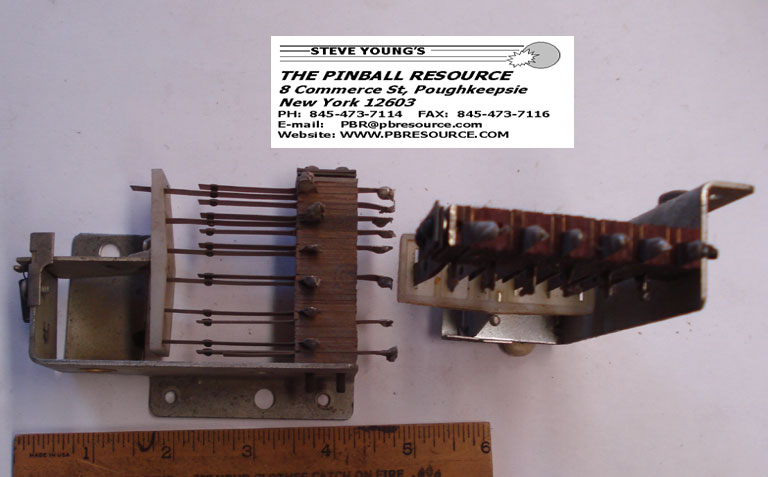

Used 6 Slot L Relay Assembly


A-6216

We have multiple of these, thus the one you receive will not match the pictures. The used assembly will have the frame and armature plate(Switches and springs will not be included)

WLL-A6216-5 $11.00ea

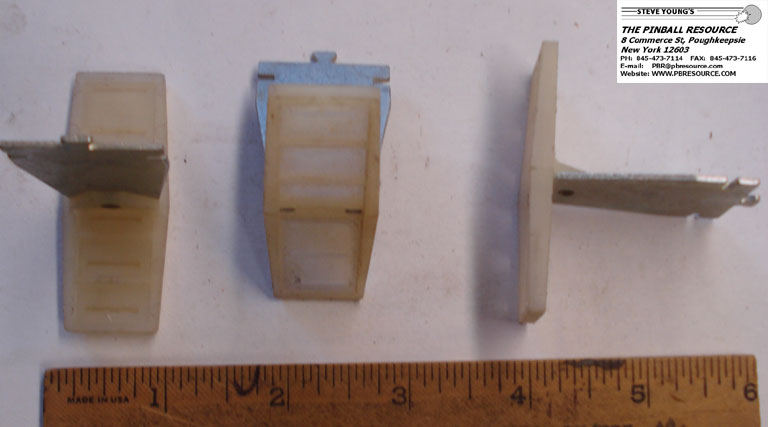

3 Slot L
Armature Plate


A-6214-3

WLL-A6214-3 Out of Stock

4 Slot L
Armature Plate


A-6214-4

WLL-A6214-4 $3.85ea

5 Slot L
Armature Plate


A-6214-5

WLL-A6214-5 $3.85ea

5A Slot L
Armature Plate


A-6214-5A

WLL-A6214-5A $4.85ea

6 Slot L
Armature Plate


A-6214-6

WLL-A6214-6 $3.85ea

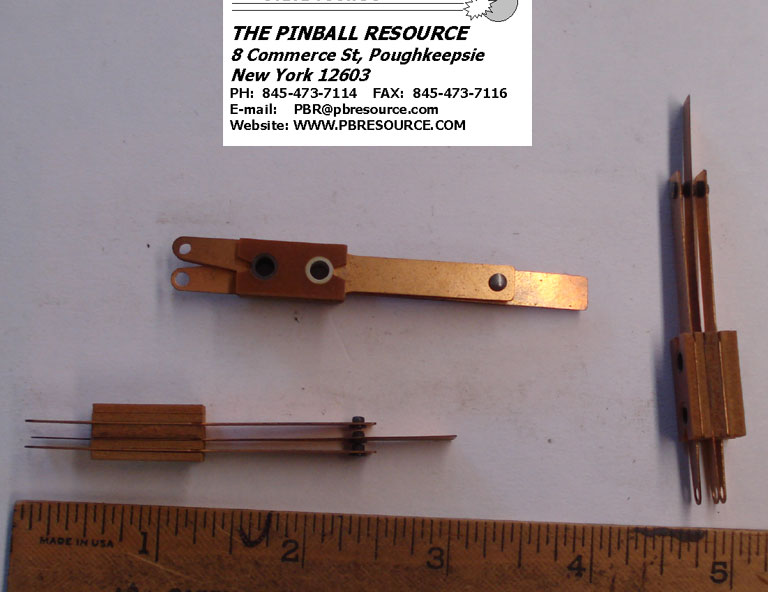

L Relay Switch


SW-3Z
SW3Z
Make/Break with Small Contacts

WLL-SW3Z $7.52ea

Grommet


23A-6420

23A6420
23-6420

WLL-23-6420+ $0.29ea

Williams
”L” Relay

B-9695

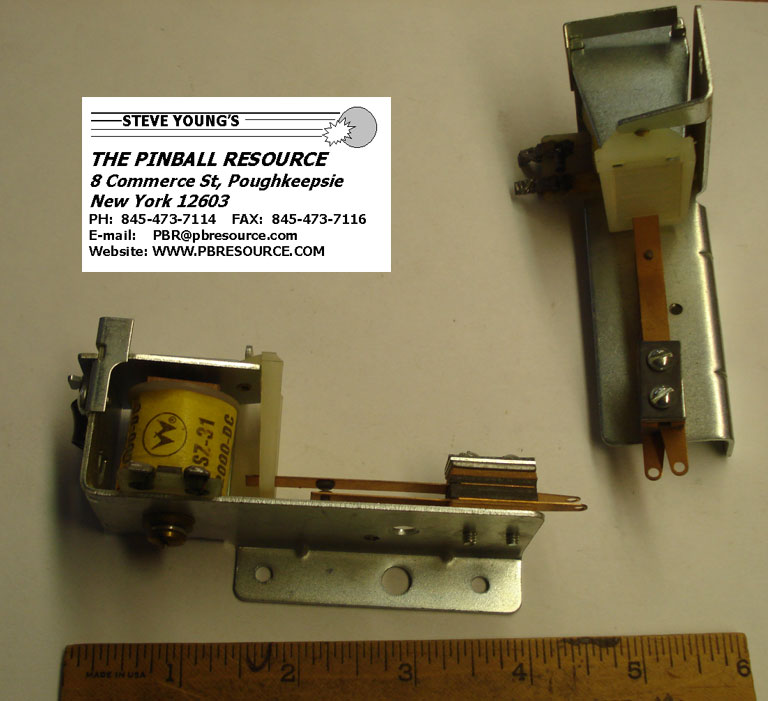

L Relay Assembly


B-9695 Used on games Strike Zone, Alley Cat, Tic-Tac, Gold Mine, and Top Dawg

WLL-B9695 Out of Stock

3 Slot L
Armature Plate


A-6214-3

WLL-A6214-3 Out of Stock

Grommet


23A-6420

23A6420
23-6420

WLL-23-6420+ $0.29ea

Williams
”Z” Relay-

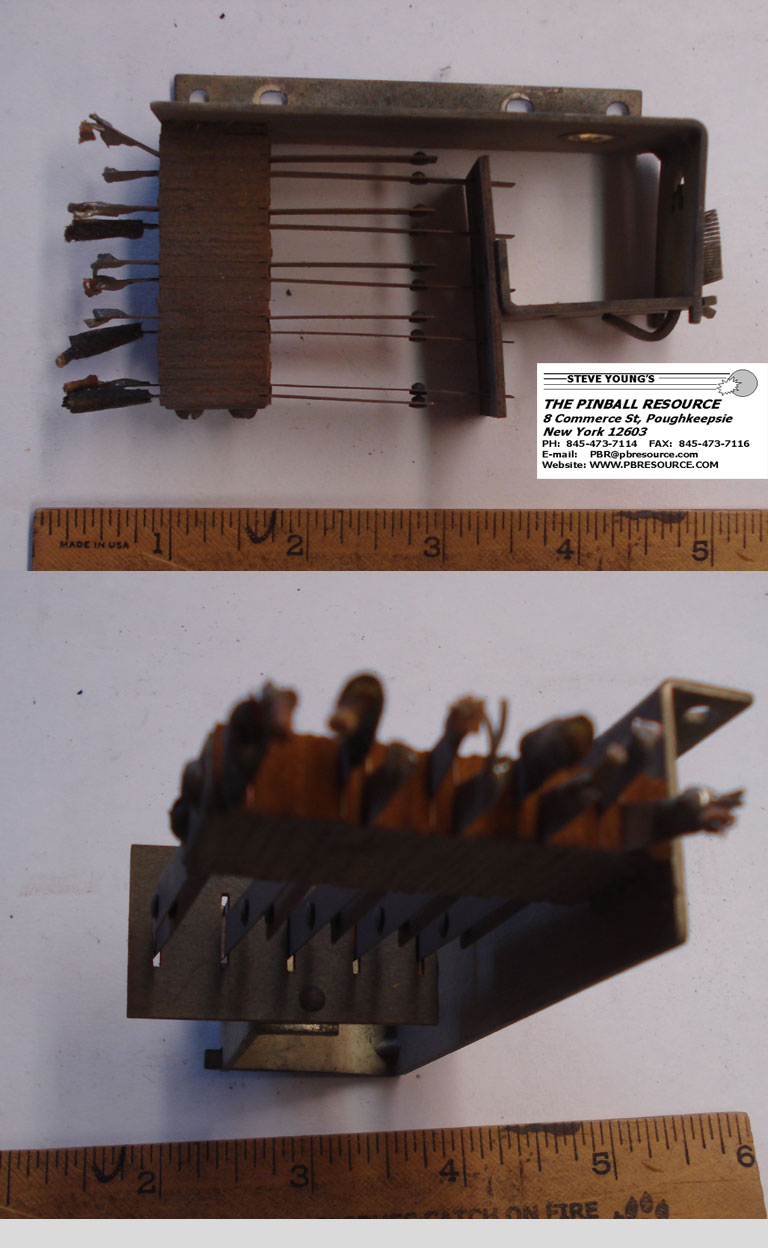

B-5645

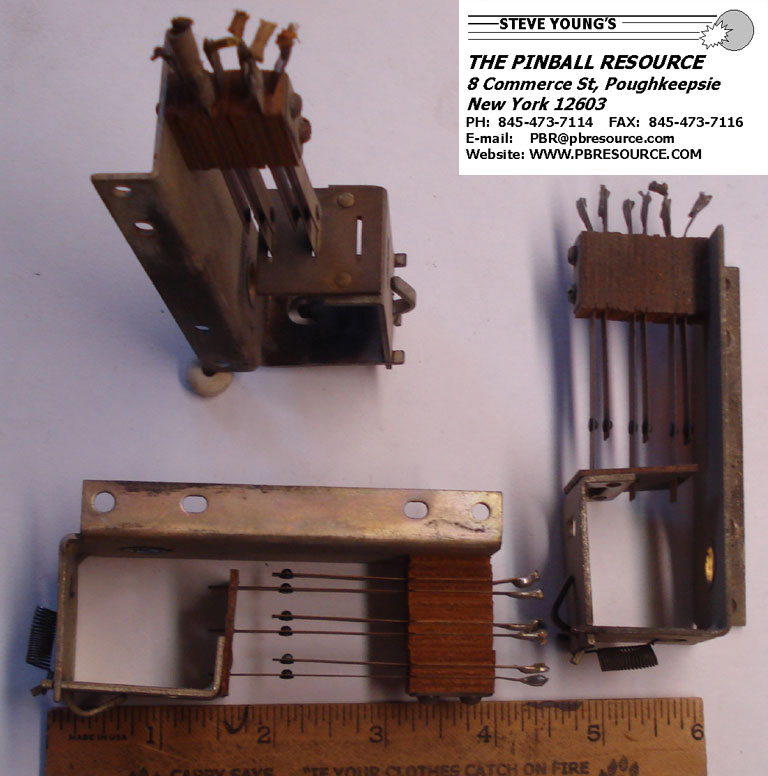

Used 3 Slot Z Relay Assembly


B-5645

We have multiple of these, thus the one you receive will not match the pictures. The used assembly will have the frame, spring, armature plate(Switches will not be included)



WLL-B5645-3 Out of Stock

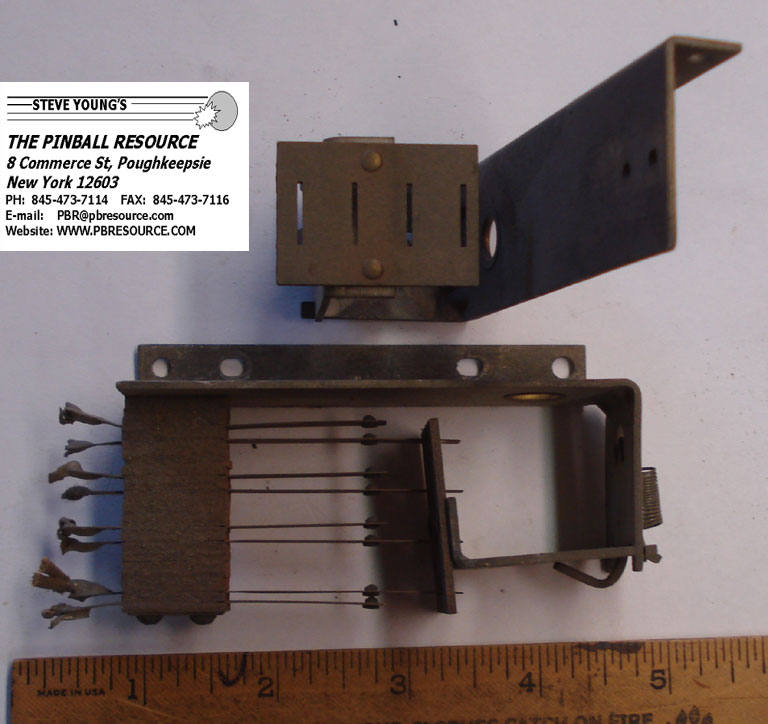

Used 4 Slot Z Relay Assembly


B-5645

We have multiple of these, thus the one you receive will not match the pictures. The used assembly will have the frame, spring, armature plate(Switches will not be included)

WLL-B5645-4 Out of Stock

Used 5 Slot Z Relay Assembly


B-5645

We have multiple of these, thus the one you receive will not match the pictures. The used assembly will have the frame, spring, armature plate(Switches will not be included)

WLL-B5645-5 $9.00ea

Used 6 Slot Z Relay Assembly


B-5645

We have multiple of these, thus the one you receive will not match the pictures. The used assembly will have the frame, spring, armature plate(Switches will not be included)

WLL-B5645-6 $9.00ea

Z Relay Switch


SW-3Z
SW3Z
Make/Break with Small Contacts

WLL-SW3Z $7.52ea

Williams
”J” Relay
AC

B-6068


Used J Relay Assembly


B-6068

We have multiple of these, thus the one you receive will not match the pictures. The used assembly will have the frame, spring, armature plate(Switches will not be included)

WLL-B6068 $8.50ea

Armature Plate


B-6067

These may have a single hole or no hole on the metal arm

WLL-B6067 $3.85ea

J Relay Switch


SW-3M-1

Make/Break with Small Contacts

WLL-SW3M-1 Out of Stock

Grommet


23A-6420

23A6420
23-6420

WLL-23-6420+ $0.29ea

Williams
”J” Relay
DC

B-6068-DC


Armature Plate


B-6067-1

These have 2 holes for mounting a Residual Plate. They do not ship with Residual Plate
01-6376 Residual Plate Mounted on B-6067-1 and we don't currently offer that plate.

WLL-B6067-1 $2.85ea

J Relay Switch


SW-3M-1

Make/Break with Small Contacts

WLL-SW3M-1 Out Of Stock

Grommet


23A-6420

23A6420
23-6420

WLL-23-6420+ $0.29ea

Williams
”M” Relay-

B-5250


Armature Assembly


B-5248

WLL-B5248 $6.75ea

J Relay Switch


SW-3M-1

Make/Break with Small Contacts

WLL-SW3M-1 Out of Stock

Grommet


23A-6420

23A6420
23-6420

WLL-23-6420+ $0.29ea

Williams
Coin Lockout Relay

A-6891


Used Coin Lockout Relay Assembly


A-6891

We have multiple of these, thus the one you receive will not match the pictures. The used assembly will have the frame, spring, armature plate, coil.

WLL-A6891 $15.00ea

Armature Plate and Extension


A-7029

WLL-A7029 $3.68ea

Williams
Coin Lockout Relay

A-7465


Used Coin Lockout Relay Assembly


A-7465

We have multiple of these, thus the one you receive will not match the pictures. The used assembly will have the frame, spring, armature plate, coil.

WLL-A7465 Out of Stock

Williams
BallGate
Lock Relay

B-8872


BallGate Lock Relay Assembly


B-8872

WLL-B8872 $14.00ea

Top

Home Page

EMAIL PBR

How To Order

FAQ

Privacy Policy

©2004-2023 The Pinball Resource
