The Pinball Resource has recently reproduced the Fast Draw / Quick Draw plastic set. Since most customers ask when ordering plastics sets what other parts do you have for this game, we have put up a webpage to answer that question. Listed below are some of the common parts people request that we currently have in stock for Fast Draw / Quick Draw! A more complete list of parts can be found in the documentation listed below!

Playfield Parts

Documentation

Cabinet Parts

Lamps

Coils




Playfield Parts

Part

Description

Part Number

Price








Repro Playfield Plastic Set

Complete set of playfield plastics for Fast Draw / Quick Draw


Click on thumbnail picture for plastic set pictures. Full plastic set has protective covering on rear in the picture(thus a little fuzzy)! Plastic set will be shipped with protective covering on both sides that needs to be removed prior to installing!

GTB-C15864A

$80.00





Rubber Ring Kit

Our Rubber Ring Kits replaces all of the rubber on all of the playfield that the ball comes into contact with. This include Flipper Rubber, Rebound Rubber, and Shooter Rod Plunger Tip.

Rubber Ring Kit Fast Draw

$14.89ea

White Playfield Posts 1”

There are 34 of these faceted posts used in the game!

GTB-C11561W

$0.50ea



Drop Targets
There are 10 used on this game.



8 Yellow Drop Targets With a Black Cowboy
2 Black Drop Targets With a Horseshoe


These can also be ordered individually! *Note -Color/Shade may not match your existing drop targets for a variety of reasons!*

Fast Draw Drop Target Set




Fast Draw Drop Target “Specify Design”

Set for $40.00





$4.00ea


A15200 Shown


A11426 Shown

Pop Bumper Caps
There are 3 used on this game.

1 X A15200 Bumper Caps


2 X A11426 Bumper Caps

GTB-A15200
Red Outer Star Blue Inner Star



GTB-A11426 Red

$6.00ea





$6.00ea


GTB-A13905R Shown
GTB-A13905B Shown

Pop Bumper Bodies

There are 3 used on this game.

2 X Red A13905

1 X Blue A13905

GTB-A13905R

GTB-A13905B

$6.00ea

$6.00ea


GTB-A1218R Shown


GTB-A1218B Shown

Pop Bumper Skirts


There are 3 used on this game.

2 X Red A1218R

1 X Blue A1218B

Listed in manual as C-10433

GTB-A1218R

GTB-A1218B

$1.25ea

$0.95ea


Pop Bumper Mylar Platter
There are 3 used on this game(Non-Adhesive)

GTB-B8246

$0.92ea

Ball Gate

There is 1 used on this game.

PBR Signature Reproduction Part!

GTB-A3290A

$12.34ea

Rebound Bracket
There is 1 used on this game

PBR Signature Reproduction Part!

GTB-A1309A

$16.22ea


Arch Stick Protector
There is 1 used on this game

PBR Signature Reproduction Part!

GTB-A9933A

$7.65ea


Metal Runway Shield
There is 1 used on this game

PBR Signature Reproduction Part!

GTB-A8215A

$6.60ea


3” Jumbo Flipper Plastic
There are 2 used on this game

GTB-A13150
Same as Part
C13150

$2.25ea



Flipper Rebuild Kit

Each mini kit rebuilds 2 flippers. Each mini kit includes:
2 Flipper Plungers
2 Flipper Link/Studs
2 Roll Pins
2 Coil Stops
2 Flipper Bushings
2 Sleeves
2 EOS Switches
4 Screws
2 Retaining Rings


*Note -Please ensure your Flipper Links look like the ones in the Picture!*

KT-GFLIP02M

$37.68ea

High-Current Slingshot Switch Kit

We offer a high current stand-up switch for the slingshots that offers a reversible bracket. This replaces 22224 & 22225. Click on the thumbnail for how to assemble!

GTB-22224+

$8.11ea

Rubber / 10 Point Switch Kit

We offer a kit for the Rubber / 10 Point stand-up switch.This replaces part numbers
B8547, B8550,
B17419, B17424,
B18078, B18079,
22227, and 22228.
Click on the thumbnail for how to assemble!

GTB-22227+

$5.00ea

Rollover Guides
There are 8 rollover guides on this game

2 X White A9393*
2 X White A9396*
2 X Red A9395
2 X Red C15648


*NOTE: A9393 and A9394 are Different than Original – No Ridges on edge and a diffusion pattern was added to the bottom

Game Manual differs from Flyer on the color of Rollover Guides!

GTB-A9393W
GTB-A9396W
GTB-A9395R
GTB-C15648R

$1.84ea
$1.39ea
$1.35ea
$2.50ea

Hole Base Plate and Hole Switch Arm

2 Red Transparent Hole Base GTB-C15707R



2 Red Transparent Hole Switch Arm
GTB-C15708R

GTB-C15707R

GTB-C15708R


$1.35ea

$1.35ea

Metal Hole Liner

GTB-A11151

$4.96ea

Metal Hole Guard

GTB-A5891

Out of Stock


Bulleye Shown

1” Rivet Round Target Faces
There are 4 used on this game!

1” Rivet “Bulleyes” Round Target Faces

GTB-A9383B
1” Rivet “Bulleyes” Round Target Faces

$4.00ea




Mini Post Screw


There are 4 used on the game!.

GTB-A14792

$1.75ea



Post Fastening Screw/Hex


There are 16 used on the game!

There is No Tread on the top of this post screw. The GTB-SC125 Acorn Post Speed Nut creates its own thread when installed.

GTB-A8857

$1.40ea


Acorn Post Speed Nut

There are 16 used on the game!

*Note: Original Nickel Plated Acorn Post Speed Nuts are No Longer Available

This is a substitute Stainless Acorn Post Speed Nut(Not as shinny)



Our Palnut Tool makes replacing these a lot easier!

GTB-SC125X

$0.48ea

Pinballs
1 used on this game.

BALL116

$1.60ea

Pin

4 Used on this game.

GTB-A10542+

$0.25ea


Ball Guide Rail

1 Used on this game

GTB-A14571

Out of Stock

Front Rest Hook / Support Bracket

2 used on this game

GTB-A11346

$1.60ea

Playboard Tilt Switch Assembly

1 used on this game

GTB-B9141

Out of Stock

Documentation!

Part

Description

Part Number

Price

Owners Manual

Fast Draw -

Would be a Copy

Quick Draw -
Would be a copy

Manual
Fast Draw

Manual
Quick Draw

$4.40ea


$4.40ea


Owners Schematic

Would be a copy!

Schematic
(Specify Game)
Fast Draw or Quick Draw

$18.00ea



1978 Gottlieb® Parts Catalog

Spiral Bound Copy.
Covers games from Jungle Life/1973 Through Super Spin /1977

GTB-CAT-1978

$22.00ea

Cabinet Parts



Lockdown Bar

Lockdown bar with 2 adjustment screws!
Click On Thumbnail for actual Picture!

PBR Signature Reproduction Part!

Lockdown Bar takes 2 feet of #BeerSeal $1.18 Per Foot
(Not Included)!

GTB-D14008A

Out Of Stock



Flipper Buttons and Clear Straps



Metal Strap

Flipper Button
2 Flipper Buttons used
Red #B16680
2 White Start Bushing
#C13900

2 Clear Plastic Straps A13898+(Clear allows you to light the flipper buttons from inside the cabinet) These have protective covering on them that you need to peel off before installing.
or
2 Metal Straps A13898

GTB-B16680
GTB-C13900
GTB-A13898+
GTB-A13898

$1.81ea
$1.45ea
$0.98ea
$1.68ea

Flipper Button Cabinet Switches

There are 2 used on this game!

GTB-B17838+

$8.92ea





Ball Shooter Parts
(#B-8835)

Ball Shooter (Knob & Shaft) #A8833+
Barrel Spring #A347
Shooter Spring #A348
Trimplate #A8831+
Eyelet #A17596
Plate #A8829
Housing(Sleeve) #B8834
Retaining Ring #5133-37
Plunger Tip #RIN-PT
(Also included in Rubber Ring Kit)

Complete Assembly #B8835+

GTB-A8833+
GTB-A347
GTB-A348
GTB-A8831+
GTB-A17596
GTB-A8829
GTB-B8834
HWD-CRING38
RIN-PTW


GTB-B8835+

$12.17ea
$0.72ea
$0.52ea
$14.88ea
$0.25ea
$2.08ea
$2.10ea
$0.14ea
$0.30ea


$40.06ea







Legs
All 4 are 31”

LEG-31CA

$19.90 per leg

Leg Levelers
4 2” used on game

LEG2

$1.00ea

Leg Bolts
8 Leg bolts used on game

LEGBOLT

$0.80ea

Head Bolts
4 Head Bolts and 4 Washers to attach backbox.

Bolt HDW-3/8X3-3/4

Washer HDW-3/8FEN-WA

HDW-3/8X3-3/4

HDW-3/8FEN-WA

$1.20ea

$0.24ea


Legs Tee
4 Used on this game

LEG-TEE

$1.29ea

Coin Door Lock 7/8"

LOCK

$6.93ea

Backbox Lock 7/8"

LOCK

$6.93ea

3 Chute Coin Door Shell


Click on the thumbnail to see the back of the door!

PBR Signature Reproduction Part!

GTB-D10066A

$217.54ea

Coin/Front Door Strike Plate



PBR Signature Reproduction Part!

GTB-B8089A

$27.96ea

Front Door Hole Plug

Used if you need less that 3 chutes!
Door Hole Plug A7478A
Retaining Ring HDW-CRING14


PBR Signature Reproduction Part!

GTB-A7478A
HDW-CRING14

$2.40ea
$0.15ea

Red Metal Door Push Button

Uses Retaining Ring HDW-CRING14
(Not Shown)


PBR Signature Reproduction Part!

GTB-A4524A
HDW-CRING14


$3.25ea
$0.15ea



Coin Reject Rod


Uses Retaining Ring HDW-CRING38
(Not Shown)


PBR Signature Reproduction Part!

GTB-A4386A
HDW-CRING38

$2.90ea
$0.14ea

Coin Door Return Flap

GTB-A11446A


$12.34ea




C10720A Shown

Coin Entrance Plate

We offer 3 versions of this plate!
1 Chute C10718A
2 Chute C10719A
3 Chute C10720A


Click on the Thumbnail to see all 3 Coin Entrance Plates!

PBR Signature Reproduction Part!

GTB-C10718A
GTB-C10719A
GTB-C10720A

$56.25ea
$56.25ea
$56.25ea



White Coin Entrance Plate & Insert


White Insert
#C10713+ -$0.05
#C10711+ -$0.10
#C10715+ -$0.25


Labels
#A10724+ 2 Nickels – 1 Play
#A10725 $0.10 – 1 Play
#A16196A $0.25 – 1 Play
#A10727+ $0.25 – 2 Plays
#A10728 $0.25 – 3 Plays

GTB-C10713+
GTB-C10711+
GTB-C10715+


GTB-A10724+
GTB-A10725
GTB-A16196A
GTB-A10727+
GTB-A10728

$2.50ea
$2.50ea
$2.50ea


$2.10ea
$2.40ea
$3.35ea
$3.34ea
$2.40ea

Chime Rubber Grommets
6 Used on this game!

GTB-2752

$0.47ea


Chime Nylon Washer
12 Used on this game!

GTB-104316E

$0.25ea


Chime Plunger
3 Used on this game!

GTB-A1487+

$3.40ea

Chime Bar
1 Used on this game! This is the shortest chime bar, 5 3/4”.

GTB-A12018

Out of Stock

Chime Rebuild Kit

For Solid State and E/M Games
Kit Includes:
6 X 2752 Chime Grommets
12 X Nylon Washer 104316E
3 X Long Bell Sleeve A5142
1 X Piece Beer Seal
4-3/4"Long(Cut to correct length -Different than original individual pieces)


KT-GCHIME-01

$7.50ea

Knocker Parts
1 Used on this game!

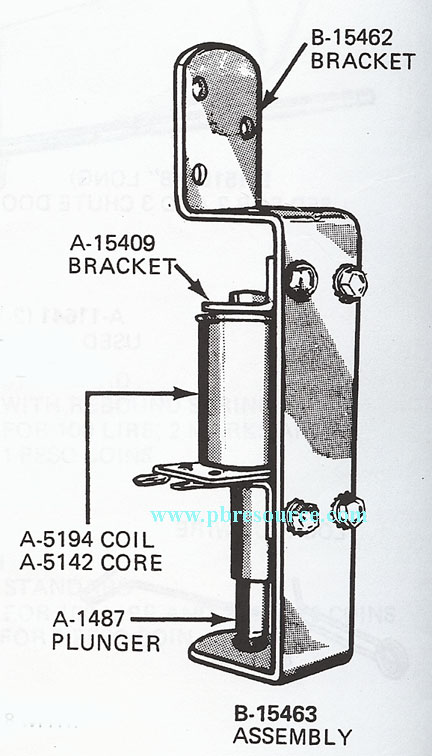

Assembly is B15463 -Commonly requested parts:
B15462 Bracket
A1487 Plunger
A15409 Bracket

If you need the complete assembly, we can build one for you,
$21.72ea

GTB-B15462
GTB-A1487+
GTB-A15409

$5.44ea
$3.40ea
$1.35ea

Replacement Power Cord
14' Foot

CORDSET-14

$10.70ea

Fuse Holder

FUS-HLDR

$3.00ea

Tilt Parts

Click on the Thumbnail for a larger picture!

Housing C10336
Switch B17543
Wire A15164
Push Nut PS-0904032
Strike Plate A358
Tilt Bob A356
Clip A14653


Tilt Ball is the same size as the one used in the game 1-1/16”

GTB-C10336
GTB-B17543
GTB-A15164
GTB-PS0904032
GTB-A358
GTB-A356
GTB-A14653

Out Of Stock
$3.75ea
$2.70ea
$0.25ea
$1.50ea
$2.60ea
$1.20ea

Instruction / Score Card Covers

#A16143 -Instruction Card
(*Note – Instruction covers are Gottlieb® NOS, but do have a Yellow tint to them!)

#A16142- Score Card

GTB-A16143
GTB-A16142

$0.85ea
Out of Stock

Lamps


#47 Lamps

Sold by the box, 10 to a box. Used on playfield and in backbox
(A better solution than #44 Lamps)

*Due to Covid-19 / Supply Chain Issues, brand of lamps may not be Eiko.

LAM0047A

$2.50PB

#455 Blinking Lamps

Sold by the box, 10 to a box.

LAM0455A

$10.00PB

Coils used on Fast Draw
*Note-All Of Our Coils Come With Sleeves
(Where Applicable)

Coil Usage

Flipper

GTB-A5141

$15.00ea

Coil Usage

Chime

GTB-A5195

$10.00ea

Coil Usage

Scoring Unit

GTB-A15259

$10.00ea

Coil Usage

Relays

GTB-A9740

$10.00ea


Coil Usage

Relays

GTB-A9733

$10.00ea

Coil Usage

Relays

GTB-A9735
(Replaces A489)

$10.00ea



Coil Usage

Relays

GTB-A9736

$10.00ea

Coil Usage

Relays

GTB-A9738

$10.00ea

Coil Usage

Relays

GTB-A9742

$10.00ea

Coil Usage

Sequence Bank Relay

GTB-A1118

$10.00ea

Coil Usage

Sequence Bank Relay

GTB-A1119

$10.00ea

Coil Usage

Add Bonus Unit
Add Replay Unit
Subtract Replay Unit
Add Player Unit
Add Coin Unit
Ball Return
Drop Target Reset

GTB-A1496

$10.00ea

Coil Usage

Sequence Bank Relay

GTB-A15359

$10.00ea

Coil Usage


Pop Bumper

GTB-A4893

$10.00ea

Coil Usage

Subtract Bonus Unit
Knocker
Reset Coin Unit
Hole Kicker

GTB-A5194

$10.00ea

Coil Usage

Relays

GTB-A5662

$10.00ea

Coil Usage

Coin Lockout

GTB-A7677

$10.00ea

Coil Usage

Target Bank Reset

GTB-A15555

(Substitute for A5196)

$15.00ea

Coil Usage

Sequence Bank Reset

GTB-A9479

$15.00ea

Top

Home Page

EMAIL PBR

How To Order

FAQ

Privacy Policy

©2004-2023 The Pinball Resource
