SPECIAL WHEN LIT

Welcome to The Pinball Resource Special When Lit page. This page is intended to move Special merchandise. Whether it's a one of a kind items (we need the shelf space), last of inventory, or simply a scratched item. Please read the items description carefully. These items will move fast! Please be sure to check back often for these Specials! Shipping/Handling is not included in below prices.

Double click on thumbnails for larger pictures!

We are treating these Specials differently that a normal order from The Pinball Resource. Please Click Here to read the terms.

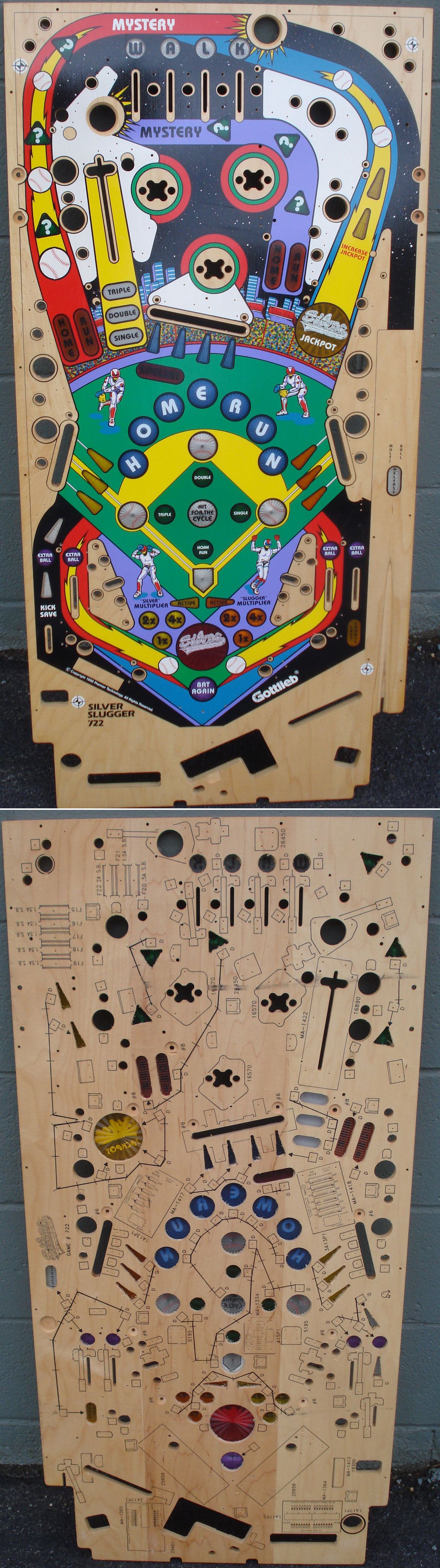

NOS Gottlieb® Playfields


We have purchased the Gottlieb® Archive playfields. We thought these playfields belong in a game instead of an archive. The archive contained 1 of each title. These are all NOS playfields, but may Not be Mint, they will have some surface scratches, dings, cupped inserts, planking, etc... from storage and age.

A lot of these playfield titles have not been available for many years(if ever), if you are interested in one, suggest purchasing now, before someone else buys it.

Price Reduced by $100.00 on below playfields.


Game # Game Name Price
684 D- Amazon Hunt III.........Was $600.00 - Now $500.00
706 Spring Break...............     Was $600.00 - Now $500.00
708 Monte Carlo................     Was $600.00 - Now $500.00
Thunder..........   Was $600.00 - Now $500.00

*Note: These will be Expensive to ship due to box size, weight, and insurance!

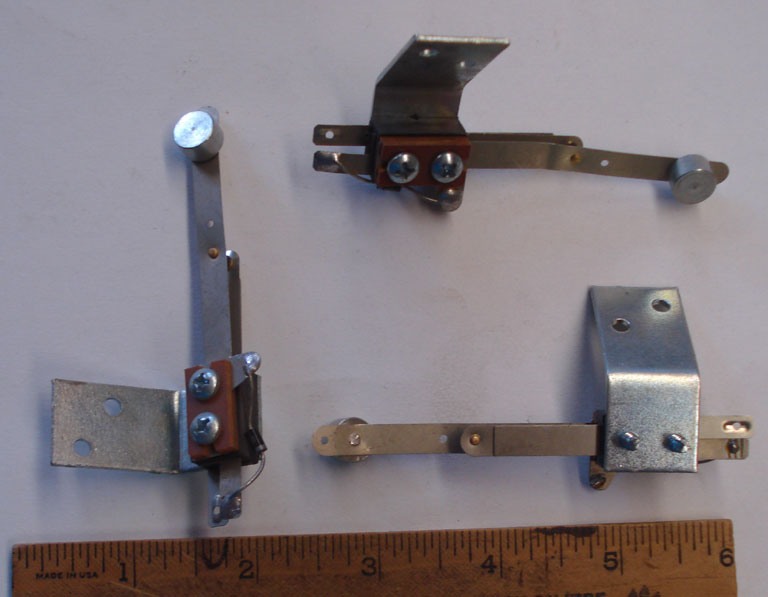

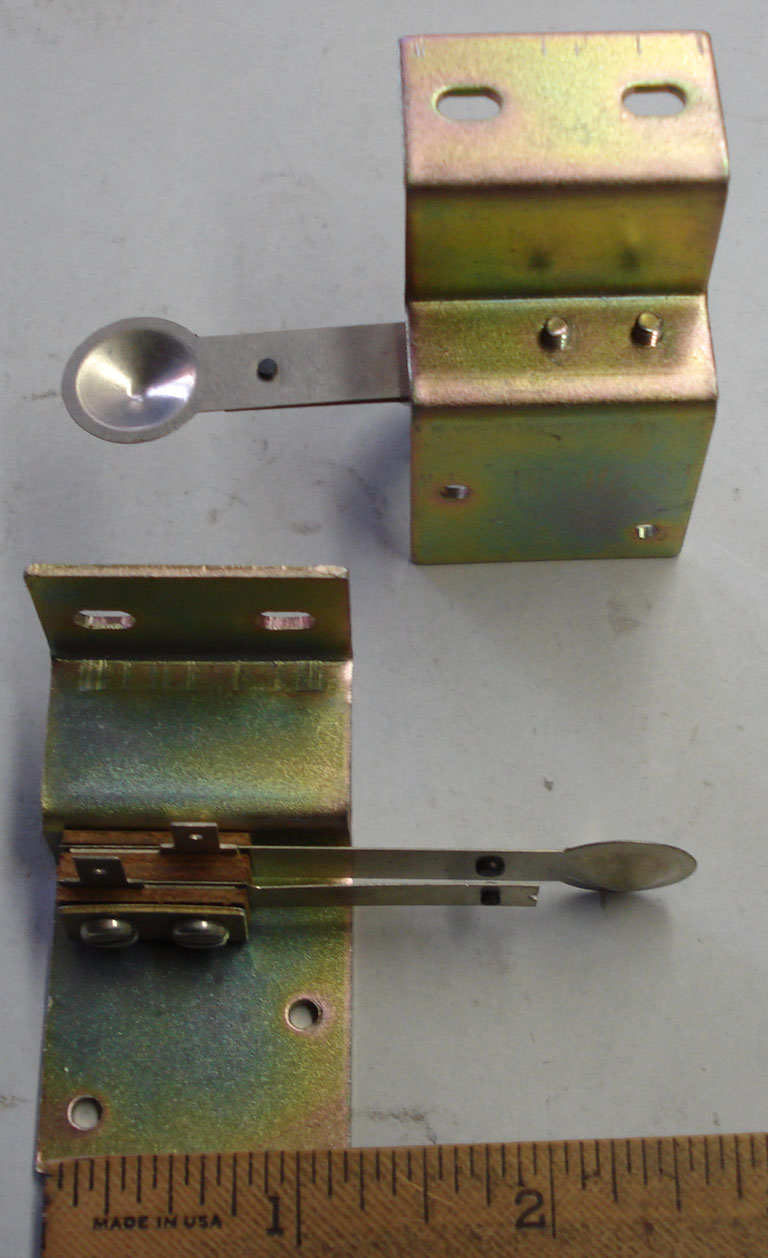

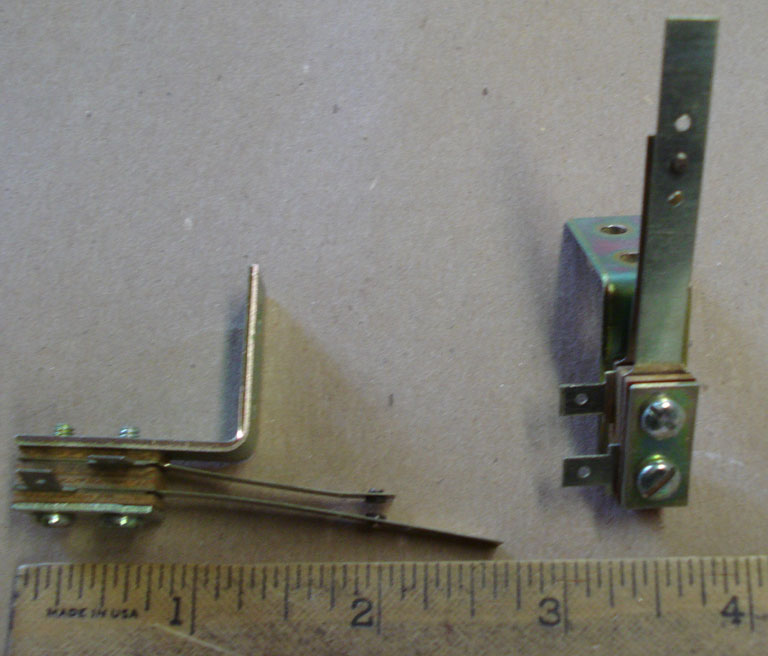

NOS Trough Microswitch and Bracket Assembly
This is a NOS Mulon Microswitch M8LPA-5006 mounted on a bracket.. This switch is 5Amp, 250Volts. This was originally used on Brunswick games but we believe it can be used in other E/M games and for other applications.

Click on the thumbnail picture for larger view!

Price for 1 Trough Microswitch K-55101492000 $0.75ea

Buy This Item!


NOS Mulon Microswitch
This is a NOS Mulon Microswitch M8LPB-5004. This switch is 5Amp, 250Volts. This was originally used on Brunswick games but we believe it can be used in other E/M games and for other applications.

Click on the thumbnail picture for larger view!

Price for 1 Mulon Microswitch K-MISC-MULON-M8LPB-5004 $0.50ea

Buy This Item!


NOS Cherry Microswitch
These are NOS Cherry E22 Microswitches. These are labeled E22-85HX but they have a bent blade instead of a straight blade. These are 3Amp. 125Volts. This was originally used on Brunswick games but we believe it can be used in other applications.

Click on the thumbnail picture for larger view!

Price for 1 Cherry Microswitch K-MISC-Cherry-E22 $0.50ea

Buy This Item!

NOS Microsoft Pinball Arcade PC game featuring Gottlieb® Pinball Machines
This is a NOS/NIB Microsoft Pinball Arcade software for the PC. The PC Pinball Simulation game includes the 7 Gottlieb® tables CueBall Wizard, Haunted House, Spirit of 76, Slick Chick, Knock Out, Humpty Dumpty, and Baffle Ball. Also included is an online history of pinball gaming.
The software was meant to run on Windows 95/Windows 98/Windows NT, not sure if it will run on the newer windows operating systems.
*NOTE: Multiple customers have told us that this software works fine under Windows 10*
Gottlieb® Development got these as part of a licensing deal with Microsoft when they created the software. We got the lot of them from the Gottlieb® Development Archieve.
This would look great sitting next to any pc!
Click on the thumbnail picture for larger view!

Price for 1 MS Pinball Arcade PC Games
MISCGA-MSPINARCADE $5.00
Buy This Item!


PS: We have a few cases of these, if you are interested in a case(10 games to a case), contact us for pricing . The original labels from Microsoft to Gottlieb
® Development are still on the sealed cases.

Think you really know Pinball?

BOGO FREE!


Not likely -- unless you own the comprehensive two volume history of pinball’s earliest days – Dick Bueschel’s The Encyclopedia of Pinball Volumes 1 & 2!

Don't know who Dick Bueschel is or what is a Pinball Historian? Check out the 1985 Pinball Expo Seminar on Youtube given by Dick.

Everybody knows the names Harry Williams, David Gottlieb and Roy Moloney. But what about Dave, Lou and Meyer Gensburg? Jimmy Johnson? Lyn Durant? Fred McClellan? Or Bill Gersh?

Do you know who they were? Or the pivotal roles they played in pinball’s early history?

Humpty Dumpty was the first game with flippers.

But who was the last manufacturer to add flippers to their games. And what was the name of that company’s last pre-flipper game?

Do you know who put the first bell on a pin game?

Where the playfield graphics for the pioneering pin game Ballyhoo came from?

Or what the original name of the company was that became Bally?

Can you name the man who invented the first mechanism that allowed replays?

Or the first electro-mechanical pinball machine? And when it was introduced?

Which game had the first lighted backglass?

The first bumpers?

If you owned The Encyclopedia of Pinball Volumes I & II you’d know the answers.

You’d even discover the names of a dozen long gone slot machine makers who also built pinball machines in the early days.

And learn which French parlor game evolved into pinball. And how it was introduced to America.

You probably know that Gottlieb became known as “The King of Card Games”. But do you know the surprising name of their first card game. And when it was made?

Or what 3 Rockola games represented the apex of the purely mechanical era?

You’ll find all this and so much more in the definitive history of early pinball contained in The Encyclopedia of Pinball Volumes I & II.

Each hardbound volume contains more than 250 pages, nearly 400 photos and illustrations and comprehensive lists of games and manufacturers from pinball’s pioneering days.

These exceptional books were written by “The Dean” of coin machine historians the late Dick Bueschel. They are, unquestionably, the most thorough and complete histories of pinball that will ever be written and, once the existing stock of them is gone, due to the expense involved, they will never be re-printed.

Don’t miss your opportunity to further your enjoyment of pinball by learning everything there is to know about its origins, early years and the larger-than-life characters that made it happen.

The entrepreneurial spirit of these pinball pioneers and the penny and nickel pin games they invented literally helped pull a beleaguered America out of The Great Depression!

If you’re a pinball collector, player, enthusiast, or know someone who is, this two volume set is guaranteed to provide hour after hour of pinball and historical reading pleasure.

Click on either volume to see additional pictures contained in that volume.

Looking for the perfect gift for the pinball lover or history buff in your life? Original price on each volume of the Encyclopedia was $49.95, Set was $99.90, during our Special on these Encyclopedia, BOGO FREE you pay $49.96 + Shipping for both volumes(2 volume set).



Williams NOS Poster Congo
You loved the movie and pinball game and this would be a perfect gift for that movie poster collector or just to hang in your game room. It's NOS from 1996. This poster measures 28'' X 22''.
Click on the thumbnail picture for larger view!

Price for 1 WMS Congo Poster $7.50
Buy This Item!

Williams NOS Poster JackBot
A unique poster that will not clash with beige walls!
It's NOS from 1995, Williams. This poster measures 36'' X 24''.


Click on the thumbnail picture for larger view!

Price for 1 WMS Jackbot Poster $7.50
Buy This Item!

Williams NOS Poster Johnny Mnemonic
If you loved the movie and/or the game, here's a poster that will look great on your gameroom wall.
It's NOS from 1995, Williams. This poster measures 36'' X 24''.


Click on the thumbnail picture for larger view!

Price for 1 WMS Johnny Mnemonic Poster $7.50
Buy This Item!

Gottlieb® Bowling Pin


This is a NOS Bowling Pin. This would make a great keychain Fob or as an ornament to hang on your bowling ball bag or from your car's rear view mirror. This part is from Premier's Strikes 'N Spares. Thought owners of bowling theme pins like 300, Top Score, King Pin, Pin-Up, etc... would appreciate this and would want it as a key chain Fob.

Click on the thumbnail to see a larger picture!


Price for 1 Bowling Pin GTB-31369 $0.50ea
Buy This Item!

NOS Large 6” Gottlieb® “G” Starburst Decal


This is a NOS 6” Circular “G” Starburst Decal. This was originally used on the cabinet of Premier's Strikes 'N Spares. Thought you could find a different use for it.

Click on the thumbnail to see a larger picture!


Price for 1 Gottlieb® G Starburst Decal GTB-31926 $2.00ea
Buy This Item!



Gottlieb® Reproduction Backglass


We were recently contacted by Gottlieb® Development to help them sell the Gottlieb® backglass reproductions that they have been archiving as part of the reproduction approval process.

We have taken these glasses into our inventory and are happy to offer them to the pinball community. These are all reproduction glasses..generally 1 glass per title was all we started with. Some of the titles we have are out of stock with the folks who originally produced the glass. We have tried to set the selling price at the price the glass was originally or is currently offered at. Prices are net, no discount offered.

The list of glasses are as follows (there are a few cases where we have more than one copy of the glass):

Title         Producer   Price
Arabian Knights Shay Assad $195.00 Basketball Shay Assad $195.00 Deluxe Sluggin' Champ Shay Assad $195.00 Derby Day Shay Assad $295.00 Lightning Ball Shay Assad $295.00 Sittin Pretty Shay Assad $295.00 Black Hole Shay Assad $295.00 Time Line Berk GL659 $350.00
The following backglasses are on Acrylic, not Glass
Title Producer Price Flipper Cowboy Pinball Art Gl196 $300.00 Ice-Revue Pinball Art GL221 $300.00 Toreador Pinball Art GL117 $300.00

Brunswick Power Supply Unit -Untested


This is an untested Power Supply Unit with Transformer K-55-101943-000. This has some connection that need to be redone. This is being sold "AS-IS". We have bought the supply of Brunswick parts from another vendor!

Click on the thumbnail for a larger picture!


Price for one Untested Brunswick Power Supply K55-860222-002 $40.00

Buy This Item!

Alive Plastic Set


Elvis was ALIVE when Brunswick created their home version of pinball games in the late 70's. We have bought the supply of Brunswick parts from another vendor!

This is a NOS 12 piece plastic set for Alive Pinball machine. This is a great part to have if you have the game or plan on getting the game in the future.
Keep Elvis Alive!
Click on the thumbnail for a larger picture!


Price for one ELVIS Alive Plastic Set
K-55-101912SET $15.00

Buy This Item!

Partial Aspen Plastic Set


This is a NOS 11 piece incomplete plastic set for Brunswick Aspen Pinball machine. This set is missing 1 piece. This is a great part to have if you have the game or plan on getting the game in the future.
Click on the thumbnail for a larger picture and to see what piece is missing!


Price for one Partial Aspen Plastic Set
K-55-101975SET $15.00

Buy This Item!

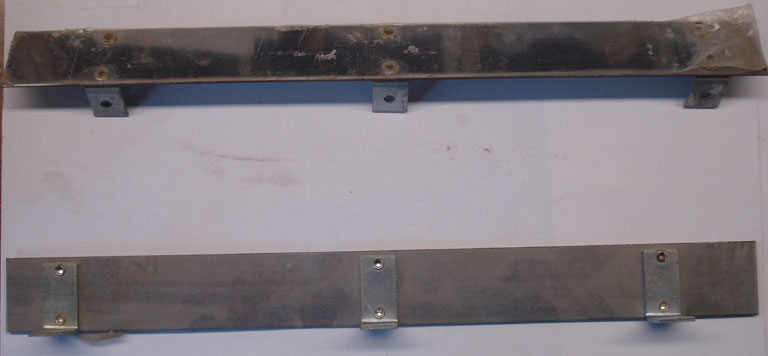

Brunswick Siderail


Brunswick produced a line of home version pinball games in the late 70's. We have bought the supply of Brunswick parts from another vendor!

This Special is for a pair(2) of NOS Brunswick Siderails.
These are great if you have a Brunswick game and these need to be replaced. They can also be used if you are building your own game and looking for a cheaper alternative for siderails. A great part for people making their own Pinball Coffee tables or end tables or accent the box hanging on your wall that holds your favorite backglass!

These do have a little rust on them, but should clean up nicely! These rails are:

41” Long by 1-1/16” Tall by 1-5/8” Wide.


Price for one pair(2) NOS Brunswick Siderails K-55-101505-00 $14.00

Buy This Item!

Brunswick Bridge Rectifiers


Brunswick produced a line of home version pinball games in the late 70's. We have bought the supply of Brunswick parts from another vendor!

This Special is for the 2 6A Bridge Rectifiers we received with the Brunswick parts.|

Click on the thumbnail to see the specs on the 2 bridge rectifiers! You may have another use for these besides a Brunswick Pinball Game!

Bridge Rectifier #1:
BR-64 (400 PIV) 6A -
Price for one NOS Brunswick BR-64 (400 PIV) 6A Bridge Rectifier K-55101201000 $0.50ea
Buy This Item!

Bridge Rectifier #2:
KBPC602A (200 PIV) 7628 6A -

Price for one NOS Brunswick KBPC602A
(200 PIV) 7628 6A Bridge Rectifier K-55101201000 $0.50ea
Buy This Item!


Black Tee-Rubber -
Post Cap for
reference only
-NOT included with the metal Minipost!

Brunswick Metal Tee-Rubber Minipost


Brunswick produced a line of home version pinball games in the late 70's. We have bought the supply of Brunswick parts from another vendor!

This Special is for the Tee-Rubber Metal Minipost used on Brunswick games. This Minipost has a #6 Machine thread on the bottom!

The minipost will ship without the Tee-Rubber. We offer the Tee-Rubber in white and black here.

This can be uses as a substitute for the Bally Minipost S2122 or assembly used on AS-2836. If used as a substitue, please check the size of your current post since this is a #6 and you may need a #6 tee-nut/nut. The screw part of this post may be longer than your original!

Click on the thumbnail to see a larger picture!


Price for one NOS Brunswick
K-55-101888-02 Metal Tee-Rubber Minipost $2.00ea

Buy This Item!


Brunswick Left Oneway Ball Gate


Brunswick produced a line of home version pinball games in the late 70's. We have bought the supply of Brunswick parts from another vendor!

This Special is for the Left Side Oneway Ball Gate.

Event though this is a Brunswick part it can be used in other games or for anyone building their own game.

Click on the thumbnail to see a larger picture!

Price for 1 NOS Brunswick Left Oneway Ball Gate K-55-101460-001 $2.00ea
Buy This Item!


Brunswick Right Oneway Ball Gate


Brunswick produced a line of home version pinball games in the late 70's. We have bought the supply of Brunswick parts from another vendor!

This Special is for the Right Side Oneway Ball Gate.

Event though this is a Brunswick part it can be used in other games or for anyone building their own game.

Click on the thumbnail to see a larger picture!

Price for 1 NOS Brunswick Right Oneway Ball Gate K-55-101460-002 $2.00ea
Buy This Item!


NOS Brunswick CDE Power Supply Relay

Brunswick produced a line of home version pinball games in the late 70's. We have bought the supply of Brunswick parts from another vendor!

This Special is for the CDE Relay:
611-931R
70-609018
CDE 1077
10Amp 240Volts


Click on the thumbnail to see a larger picture!

Price for 1 NOS CDE Relay K-70609018-00 $1.00ea
Buy This Item!

Opaque White Tent Stype Rollover / Lane Guides


Got these in from another vendor. They don't match our current stock and Gottlieb® never used an opaque white Tent Style Rollover Guide.

These would be great for someone designing their own game and who is looking for a reasonable priced Tent Style White Rollover/Lane Guide.

These are 1-1/2” Center Of Hole to Center of Hole and 2” total length.

We are selling these in bags of 50.
Click on the thumbnail to see a larger picture!


Price for 1 Bag of 50 Opaque White Tent Rollover Guides
MISC-DK-TENT $50.00pb
Buy This Item!


Left Side K-55101412-001


Right Side K-55101412-002


Ivory Opaque Hot Stamped "BONUS" Single Sided  Rollover / Lane Guides


These are Single Sided Left and Right hand side Ivory Rollover guides. These are Hot Stamped with the word "BONUS". The Center of Hole to Center of Hole measurements is 2-1/8", the overall length is 2-3/4".  These are the same size as A9395 and a9396.

Please be sure you know if you are ordering the Left or Right side

Click on the thumbnails to see a larger picture!

Price for 1 Left Side Bonus Rollover Guide K-55101412-001 $1.50ea
Buy This Item!


Price for 1 Right Bonus Rollover Guide
K-55101412-002 $1.50ea
Buy This Item!






KK-6959-2


KK-6965


KK-7043


KK-7079


KK-7079A


KK-7120


KK-7586


KK-7808-1


KK-7908


KK-7909


KK-7910


KK-8766


KK-8768


KK-8771


KK-12183


Bally Used KK Relays

These are Used Bally KK Relays. They do Not include the coil, but will have all of the other parts. Any rubber grommets are old and will need to be replaced.

Click on any of the thumbnails to see a larger picture!

Some of these we have multiples as indicated. We have no plans on adjusting the quantities on this webpage when they are sold, when sold out we will remove. If you have a Bally E/M game, these are a great spare assembly with many hard to find parts. Part numbers listed are the number printed on assembly.

KK-6959-2 2 Available
Price for 1 Bally Used KK Relay KK-6959-2 $10.00ea
Buy This Item!


KK-6965 1 Available
Price for 1 Bally Used KK Relay KK-6965 $10.00ea
Buy This Item!


KK-7043 1 Available
Price for 1 Bally Used KK Relay KK-7043 $10.00ea
Buy This Item!


KK-7079 3 Available
Price for 1 Bally Used KK Relay KK-7079 $10.00ea
Buy This Item!


KK-7079A 16 Available
Price for 1 Bally Used KK Relay KK-7079A $10.00ea
Buy This Item!


KK-7120 15 Available
Price for 1 Bally Used KK Relay KK-7120 $10.00ea
Buy This Item!


KK-7586 1 Available
Price for 1 Bally Used KK Relay KK-7586 $10.00ea
Buy This Item!


KK-7808-1 5 Available
Price for 1 Bally Used KK Relay KK-7808-1 $10.00ea
Buy This Item!


KK-7908 2 Available
Price for 1 Bally Used KK Relay KK-7908 $10.00ea
Buy This Item!


KK-7909 5 Available
Price for 1 Bally Used KK Relay KK-7909 $10.00ea
Buy This Item!


KK-7910 3 Available
Price for 1 Bally Used KK Relay KK-7910 $10.00ea
Buy This Item!


KK-8766 1 Available
Price for 1 Bally Used KK Relay KK-8766 $10.00ea
Buy This Item!


KK-8768 1 Available
Price for 1 Bally Used KK Relay KK-8768 $10.00ea
Buy This Item!



KK-8771 1 Available
Price for 1 Bally Used KK Relay KK-8771 $10.00ea
Buy This Item!


KK-12183 1 Available
Price for 1 Bally Used KK Relay KK-12183 $10.00ea
Buy This Item!





Replacement Williams Trunk Latch


Replacement Williams/Bally Trunk Latch for locking the Backbox in the upright position for 90's games.

Click on the thumbnail to see a larger picture!

Price for 1 Replacement Williams Trunk Latch
20-9347 WLL-20-9347E $7.00ea
Buy This Item!

Replacement Williams Crank Assembly


Replacement Williams/Bally Sling Shot Crank Assembly used in most 90's games.

Click on the thumbnail to see a larger picture!

Price for 1 Replacement Williams Crank Assembly
A-12664 WLL-A12664+ $5.00ea
Buy This Item!

Bally/Williams Kickback Plunger


Replacement Kickback Plunger used in the following games:
Attach From Mars, Bugs Bunny, Cactus Canyon, The Champion Pub, Cirqus Voltaire, Congo, Demolition Man
Dirty Harry, Doctor Who, Fishtales, The Flintstones
Gilligan's Island, Indiana Jones, Indy 500, Jackbot,
Johnny Mnemonic, Judge Dredd, Junyyard, Medieval Madness,
NBA Fastbreak, No Fear, No Good Gofers, Popeye,
Radical, Revenge From Mars, Road Show, SafeCracker,
Scared Stiff, STTNG, Star Wars Episode 1, Slugfest,
Terminator 2, The Getway, High Speed 2, The Shadow,
Theatre of Magic, Who Dunnit, World Cup Soccer

Click on the thumbnail to see a larger picture!


Price for 1 Bally/Williams Kickback Plunger
A-6306-2 #WLL-A6306-2 $7.00
Buy This Item!

Bally/Williams Bell Armature


Replacement Bell Armature used in the kicker assembly used in the following games:
Tales of the Arabian Knights, Attach From Mars, Bram Strokers Dracula, The Champion Pub, Cirqus Voltaire, Congo, Corvette. Demolition Man
Dirty Harry, Doctor Who, Fun House, Gilligan's Island, Indiana Jones, Indy 500, Jackbot,
Johnny Mnemonic, Medieval Madness,
Monster Bash, NBA Fastbreak, No Fear, No Good Gofers, Popeye, Riverboat Gambler, Road Show, SafeCracker,
Scared Stiff, STTNG, Star Wars Episode 1, The Addams Family, The Machine, The Shadow,
Twilight Zone, WhiteWater, Who Dunnit, World Cup Soccer

Click on the thumbnail to see a larger picture!


Price for 1 Bally/Williams Bell Armature
A-17767 #WLL-A17767 $6.00
Buy This Item!

Bally/Williams Ball Popper
Armature and Extension


Replacement Armature and Extension for the Ball Popper Assembly used in the following games:
Creature from the Black Lagoon, Congo, The Flintstones
Judge Dredd, Theatre of Magic, Twilight Zone, WhiteWater

Click on the thumbnail to see a larger picture!


Price for 1 Bally/Williams Ball Popper Armature and Extension
02-4668 #WLL-02-4668 $9.00
Buy This Item!


Bally/Williams Diverter Gate Spring

Replacement Gate Spring for the Divertor used in the following games:
Attach From Mars, Tales of the Arabian Nights, Cirqus Voltaire, Corvette, Fun House, Demolition Man, Indiana Jones, Indy 500, Johnny Mnemonic, Radical, Revenge From Mars, Riverboat Gambler, Road Show, SafeCracker, Scared Stiff, The Addams Family, Twilight Zone, World Cup Soccer

Click on the thumbnail to see a larger picture!


Price for 1 Bally/Williams Diverter Gate Spring
10-389 #WLL-10-389+ $1.00
Buy This Item!

Bally/Williams Ball Trough GateWire


This is a replacement Gate Runway Wire. This replacement wire will fit the following games:
Black Rose
Bram Stroker's Dracula
Bugs Bunny
Creature From The Black Lagoon
Doctor Who
Dr Dude
Fish Tales
Fun House
Gilligan's Island
Harley Davidson
Hurricane
Party Zone
Riverboat Gambler
Terminator 2
The Addams Family
The Getaway, High Speed II
The Machine, Bride of Pinbot
Twilight Zone
White Water

Click on the thumbnail to see a larger picture!

Price for 1 Replacement WMS/BLY Gate Runway Wire
12-6542 #WLL-12-6542+ $2.00
Buy This Item!


NOS Bally Cactus Canyon Partial – 13 Piece Plastic Set

NOS 13 Piece Incomplete Bally Cactus Canyon Plastic Set.
*Note:Pictures taken with protective covering still on!

Price for: 1 Partial Set of 13 NOS Plastic Bally Cactus Canyon #WLL-31-3224P $17.50
Buy This Item!


NOS Bally The Champion Pub Partial - 3 Piece Plastic Set

NOS 3 Piece Incomplete Bally Champion Pub Plastic Set.
*Note:Pictures taken with protective covering still on!
Click on the thumbnail to see a larger picture!

Price for: 1 Partial Set of 3 NOS Pieces for Bally The Champion Pub #WLL-313099P
$5.00
Buy This Item!


NOS Williams Congo 4 Piece Partial Plastics


NOS 4 Piece Williams Incomplete Congo Plastics. The Sling Shot plastics are included.
*Note:Pictures taken with protective covering still on!
1 Pack of 4 NOS Congo Plastics
#WLL-31-2532P $5.00

NOS Williams Monster Bash Partial - 17 Piece Plastic Set

NOS 17 Piece Incomplete Williams Monster Bash Plastic Set.
*Note:Pictures taken with protective covering still on!

Price for: 1 Partial Set of 17 NOS Pieces for WMS Monster Bash #WLL-31-3219P $25.00
Buy This Item!


NOS Williams No Good Gofers Partial - 8 Piece Plastic Set


NOS 8 Piece Incomplete Williams NGG Plastic Set.
*Note:Pictures taken with protective covering still on!
Click on the thumbnail to see a larger picture!
Price for: 1 Partial Set of 8 NOS Pieces for WMS NGG #WLL-31-3059P
$12.50
Buy This Item!

NOS Bally Revenge From Mars Partial - 5 Piece Plastic Set

NOS 5 Piece Incomplete Bally Revenge From Mars Plastic Set.
*Note:Pictures taken with protective covering still on!
Click on the thumbnail to see a larger picture!

Price for: 1 Partial Set of 5 NOS Pieces for Bally Revenge From Mars #WLL-31-3437P
$7.50
Buy This Item!

Bally Scared Stiff -Gate Wire

This is a Gate Wire for the assembly A12120 used on a Scared Stiff. This wire is also found on:
Bugs Bunny
Demolition Man
Jackbot
Popeye
Click on the thumbnail to see a larger picture!

Price for 1 Bally Scared Stiff Gate Wire
12-6565 #WLL-12-6565+ $1.25
Buy This Item!


NOS Bally Scared Stiff Partial -
6 Piece Plastic Set

NOS 6 Piece Incomplete Bally Scared Stiff Plastic Set.
*Note:Pictures taken with protective covering still on!

Price for: 1 Partial Set of 6 NOS Pieces for Bally Scared Stiff
31-2579 #W-31-2579P $7.50
Buy This Item!


NOS Williams
Star Wars Episode I
Partial - 22 Piece Plastic Set

NOS 22 Piece Incomplete Williams Star Wars Episode I Plastic Set.
*Note:Pictures taken with protective covering still on!

Click on the thumbnail to see a larger picture!
Notice the Promo/Prototype plastic included with this partial set.

Price for: 1 Partial Set of 22 NOS Pieces for Williams Star Wars Episode I #WLL-31-3541P
$25.00
Buy This Item!

NOS Bally World Cup Soccer
Promo Plastic

NOS Promo Plastic for World Cup Soccer 31-1925-G1-SP. We have multiple  of this part.

Click on the thumbnail to see a larger picture!

Price for: NOS World Cup Soccer Promo Plasic 31-1925-G1-SP
MISC-31-1925-G1-SP $00.50ea
Buy This Item!


Video/Arcade Original Used Manuals/Schematics

We got these Manuals/Schematics in from multiple sources over the years. Most of these are used, some are new, some have writing/notes inside, some may have torn covers/pages, Some have dirty covers, but thought some customers would like an original Manual/Schematic for their game even if it's used. We are selling these “AS-IS”. We have duplicated of some of these!

Each Manual/Schematic is $5.00ea

Allied Leisure Manual/Schematics
Astro Laser
Moon Lander

Ameri Manual/Schematics
Ameri Darts Conversion Kit

Atari Manual/Schematics
Breakout
Crash 'N Score
Crystal Castles
Football
Millipede


Bally/Midway Manuals/Schematics
NBA Jam Kit
Space Encounter

Capcom Manual/Schematics
Alien vs. Predators
Bowling
Dark Stalkers
Final Fight
Street Fighter Alpha
Street Fighter Alpha 2
X-MEN vs. Street Fighter

Centuri Manual/Schematics
Time Pilot

Cinematronics Manual/Schematics
TimePilot
Vanguard
World Series

Computran Manual
Super Tank (Manual Only)

Data East Manual/Schematics
Karate Champ
Kung-Fu Master
RoboCop
Vigilante

Exidy Manual/Schematics
Bandido
Spectar
TARG

GDI Manual/Schematics
Red Alert

Intermark Manual/Schematics
Competition Basketball
Count Down Basketball

Kee Games Manual/Schematics
DragRace
Sprint 2

Konami Manual/Schematics
Road Fighters Conversion Kit
The Simpsons

Leeland Manual/Schematics
ATAXX (Manual Only)

Midway Manual/Schematics
280 ZZZAP(Schematic Only)
Arch Rivals(additions & corrections to ops Manual)

Nintendo Manual/Schematics
Popeye Operations Manual -
Models (TPP2-UP / TPP2-UP-US)

Romstar Manual/Schematics
Time Soldiers

Sega Manuals/Schematics
Astro Blaster
Astro Fighter
Carnival
Baseball Champion
Congo Bongo(Preliminary)
Frogger
Head-On
Monaco
Moon Cresta
Shinobi
Turbo

SNK Manuals/Schematics
P.O.W (Manual Only)
Guerrilla (Manual Only)

Stern Manual/Schematics
Berzerk

Strata Manual/Schematics
Rim Rockin' Basketball
Time Killers

Sunbird Manuals/Schematics
Fowl Play
Super Bowler


Taito Manual/Schematics
Jungle Hunt
Jungle King
Operation Wolf

Universal Manual/Schematics
Magical Spots



STN-5A184 Shown


STN-1A911 Shown


STN-5A182 Shown


STN-2A328 Shown

Stern Berzerk Joystick Parts

We got these Stern Arcade part in from another vendor many years ago. They have been sitting on our shelves for a long, long time collecting dust. We are selling these “AS-IS”.

Click on the thumbnail for a larger picture of any of the parts.


Price for 1 Stern Berzerk Joystick Spring
5A-184 #STN-5A184 $1.00ea
Buy This Item!

Price for 1 Stern Berzerk Joystick Spring Holder
1A-911 #STN-1A911 $1.00ea
Buy This Item!

Price for 1 Stern Berzerk Joystick Extension Spring
5A-182 #STN-5A-182 $1.00ea
Buy This Item!

Price for 1 Stern Berzerk Joystick Conical Washer
2A-328 #STN-2A-328 $1.00ea
Buy This Item!





NOS Gottlieb® 4" X 6" Speaker 8 OHM

Spring Cleaning has uncovered parts you didn't know we had. This a a NOS 28926 Speaker. It's 4" X 6", 8 OHM. It was used in some System 3 games..
Click on of the thumbnails for a larger picture.


Price for 1 NOS Gottlieb® 28926 Speaker $5.00
Buy This Item!






















NOS Gottlieb® System 3 International Manuals!

These NOS manuals were made by Gottlieb® for different countries! We have split these into sections by country/language!

French: Abbreviated –
No Schematics

GTB-GM748F Barbwire
GTB-GM747F Mario Andretti
GTB-GM746F Water World
GTB-GM745F Big Hurt
GTB-GM744F Fredddy
GTB-GM743F Shaq Attaq
GTB-GM742F Stargate
GTB-GM740F Rescue 911
GTB-GM738F Wipe Out!
GTB-GM737F Gladiators
GTB-GM736F Tee'd Off
GTB-GM735F Street Fighter II
GTB-GM734F Cue Ball Wizard
GTB-GM733F Super Mario Bros
GTB-GM732F Operation Thunder
GTB-GM731F Surf 'N Safari
GTB-GM730F Class Of 1812
GTB-GM727F Hoops
GTB-GM725F Car Hop
GTB-GM724FDeadly Weapon

The above manuals are $5.00ea, or complete your collection and order all of them for $45.00

German:
Schematics are in English

GTB-GM748G Barb Wire
GTB-GM746G Water World
GTB-GM745G Big Hurt
GTB-GM741G World Challenge Soccer
GTB-GM740G Rescue 911
GTB-GM738G Wipe Out!
GTB-GM737G Gladiators
The above manuals are $8.00ea, or complete your collection and order all of them for $30.00

Canadian: Abbreviated –
No Schematics

GTB-GM748C BarbWire
GTB-GM747C Mario Andretti
GTB-GM746C Water World
GTB-GM745C Big Hurt
GTB-GM744C Fredddy
GTB-GM743C Shaq Attaq
GTB-GM742C Stargate
GTB-GM738C Wipe Out!

The above manuals are $5.00ea, or complete your collection and order all of them for $20.00

Want
ALL of the manuals listed above to add to your Gottlieb® collection, $75.00 for the entire International Collection!


Just let us know which Manual/Collection you want!


NOS Gottlieb® Street Fighter II
Mini Playfield Assembly with Issues

Spring time cleaning continues. These are NOS Gottlieb Street Fighter II Mini Playfield assemblies with issues. The issue is the playfields are scartched/dented from improper storage. Some paint may be missing.
We have a couple of these available.

Each Mini Playfield GTB-MA1903 is $30.00

GTB-MA1903-2
GTB-MA1903-5

Gottlieb® World Challenge Soccer
Top Sample Playfield

We got this in when Gottlieb® closed there doors. This is a Top Sample Playfield, #35 for World Challenge Soccer. This playfield has different colors than the production game. We are not sure if there are any other differences/changes.

Price for 1 PB#35 World Challenge Soccer Top Sample Gottlieb® Playfield PB-35 $400.00
Buy This Item!

Fluorescent Starters


These were bought from another vendor. They don't match our current product line. These are being sold by the box, 25 to a box!

Sorry, these are sold out.


NOS Stern Elvis Plastic Set


Got in a lot of NOS parts from a collector who is thinning out their stash, this is one of those parts
*Click on the thumbnail to see a larger picture!


This is an NOS Elvis Plastic Set. We have 2 of these!


Price for 1 NOS Stern Elvis Plastic Set
803-5000-84 DE-803-500084 $255.00
Buy This Item!



22-0600-O Shown



22-0600-Y Shown


22-0600-G Shown

Illuminated Square Pushbuttons


These were bought from another vendor. They don't match our current product line.

These are 1-1/4”(35mm) square. They fit holes 1”. They come with the washer and locking nut. They are all $0.70ea. These don't include the microswitch or lamp.




Side of Button Shown


#22-0600-O Orange Square Pushbutton $0.70ea

#22-0600-Y Yellow Square Pushbutton $0.70ea

#22-0600-G Green Square Pushbutton $0.70ea





22-0610-R Shown


22-0610-O Shown


22-0610-Y Shown
(Note Large Bezel/Cover)

Illuminated Square Large Pushbuttons


These were bought from another vendor. They don't match our current product line.

These are 1-15/16”(50.5mm) square. They fit holes 1”. They come with the washer and locking nut. They are all $0.70ea. These don't include the microswitch or lamp.


Side of Button Shown


#22-0610-R Red Square Large Pushbutton $0.70ea

#22-0610-O Orange Square Large Pushbutton $0.70ea

#22-0610-Y Yellow Square Large Pushbutton $0.70ea

Terms: These special items are on closeout/clearance/getthemoutofhere sale. Thus we are handling selling them different from normal processing.

These items are not returnable!

After an item has been sold, it's picture will be removed.

Sale of these items do not qualify for any type of discount.

The will be a special email id just for this page, so you don't get lost in the normal PBR traffic. The email is special@pbresource.com.


Top

Home Page

EMAIL PBR

How To Order

FAQ

Privacy Policy

©2004-2023 The Pinball Resource
