The Pinball Resource
Target Alpha/Solar City/Canada Dry
Webpage



The Pinball Resource has recently reproduced the Target Alpha plastic set. Since most customers ask when ordering plastics sets what other parts do you have for this game, we have put up a webpage to answer that question. Listed below are some of the common parts people request that we currently have in stock for Target Alpha / Solar City / Canada Dry! A more complete list of parts can be found in the documentation listed below! All three games have the same playfield, but do have Different artwork and plastics! Three other games have a similar playfields to the above games, El Dorado, Gold Strike, and El Dorado City Of Gold but with differences!

Playfield Parts

Documentation

Cabinet Parts

Lamps

Coils






Playfield Parts

Part

Description

Part Number

Price


Target Alpha Plastic Set



Target Alpha Repro Playfield Plastic Set

Complete set of playfield plastics for Target Alpha


Click on thumbnail picture for plastic set pictures. Plastic set will be shipped with protective covering on both sides that needs to be removed prior to installing!

NOTES:

-Target Alpha Set comes with 2 extra clear plastics. These are not original to the game. One can be used to replace the original metal Top Arch Track which is No Longer Available, keep the other as a spare.

– Plastics set for Solar City is the same, artwork is the same, but the colors are different. We don't currently offer this set!

GTB-C15565B




































$74.98








































Rubber Ring Kit

Our Rubber Ring Kits replaces all of the rubber on all of the playfield that the ball comes into contact with. This includes Flipper Rubbers and Shooter Rod Plunger Tip.

Rubber Ring Kit Target Alpha / Solar City / and Canada Dry

$22.54ea

White Playfield Posts 1”

There are 34 of these faceted posts used in the game!

GTB-C11561W

$0.50ea

White Split Playfield Posts

Post Cap #A-14488
Post Base #A14487
There is 1 #14488 Cap used and 1 #14487 Base used on this game!


GTB-A14488
GTB-A14487

$0.53ea
$0.53ea






Target Alpha /
Solar City







Canada Dry

Drop Targets
There are 15 used on this game.

Target Alpha / Solar City
15 White Drop Targets with Red Bullseyes




Canada Dry
Available as a complete set only!







Target Alpha / Solar City Drop Target Set






Canada Dry Set









Set for $60.00







$60.00




Pop Bumper Caps
There are 2 used on these games.

GTB-A13859Red

$6.00ea






Pop Bumper Bodies

There are 2 Red Pop Bumper Bodies used on these game.

GTB-A13905R

$6.00ea

Pop Bumper Skirts


There are 2 Red Pop Bumper Skirt A1218 used on this game.


Listed in manual as C-10433

GTB-A1218R

$1.25ea


Pop Bumper Mylar Platter
There are 2 used on this game(Non-Adhesive)

GTB-B8246

$0.92ea

Pop Bumper Switch Assembly
There are 2 used on this game

GTB-B17109

$7.68ea


Arch Stick Protector
There is 1 used on this game

PBR Signature Reproduction Part!

GTB-A9933A

$7.65ea.


Metal Runway Shield
There is 1 used on this game

PBR Signature Reproduction Part!

GTB-A8215A

$6.60


3” Jumbo Flipper Plastic
There are 2 used on this game

GTB-A13150
Same as Part
C13150

$2.25ea



2” Flat Top White Flipper Plastics with Screw Hole

There are 2 used on this game

Uses Screw #HDW-632-1-1/4

GTB-C11241





HDW-632-1-1/4

$1.95ea





$0.27ea












KT-GFLIP03AM
Shown






KT-GFLIP02M Shown

Flipper Rebuild Kits

This game take 2 different rebuid kits. Each mini kit rebuilds 2 flippers of the same size.

Lower Flipper Rebuild Kit
KT-GFLIP03AM
2 Plungers & Tips
2 Flipper Springs
2 Spring Washer
2 Coil Stops
2 Flipper Bearing -T
2 Flipper Bearing -B
2 Sleeves
2 EOS Switches
4 Screws

Upper Flipper Rebuild Kit
KT-GFLIP02M

Each mini kit includes:
2 Flipper Plungers
2 Flipper Link/Studs
2 Roll Pins
2 Coil Stops
2 Flipper Bushings
2 Sleeves
2 EOS Switches
4 Screws
2 Retaining Rings

Game requires
1 of each of the 2 Kits to rebuild all 4 Flippers!

*Note -Please ensure your Flipper Links look like the ones in the Picture!*

KT-GFLIP03AM
KT-GFLIP02M

$44.70ea
$37.68ea

High-Current Slingshot Switch Kit

We offer a high current stand-up switch for the slingshots that offers a reversible bracket. This replaces 22224 & 22225. Click on the thumbnail for how to assemble!

GTB-22224+

$8.11ea

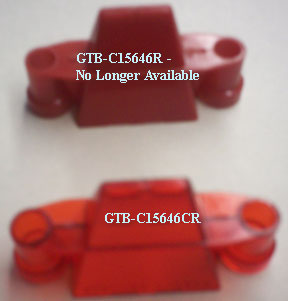

Rollover Guides
There are 5 rollover guides on this game


1 Red C15646R
(Not Shown)
2 Red #C15648R
1 Red #A9396R
1 Red #A9393R

GTB-C15646R
GTB-C15648R
GTB-A9396R
GTB-A9393R

$2.50ea
$2.50ea
$1.39ea
$1.39ea


Bulleye Shown

1” Rivet Round Target Faces
There are 2 used on this game!

2 X GTB-A9383B 1” Rivet “Bulleyes” Round Target Faces

GTB-A9383B
1” Rivet “Bulleyes” Round Target Faces




$4.00ea






Mini Post Screw


There are 9 used on the game!.

GTB-A14792

$1.75ea



Post Fastening Screw/Hex


Not sure how many are used on this game, maybe you of you can tell us!

There is No Tread on the top of this post screw. The GTB-SC125 Acorn Post Speed Nut creates its own thread when installed.

GTB-A8857

$1.40ea


Acorn Post Speed Nut

Game takes 23 Acorn speed nuts

*Note: Original Nickel Plated Acorn Post Speed Nuts are No Longer Available

This is a substitute Stainless Acorn Post Speed Nut(Not as shinny)


Our Palnut Tool makes replacing these a lot easier!

GTB-SC125X

$.0.48ea

Pinballs
1 used on this game.

BALL116

$1.60ea

Pin

5 Used on this game.

GTB-A10542+

$0.25ea


Ball Guide Rail

1 Used on this game

GTB-A14571

Out of Stock

A15836 Shown

Contact (Slingshot) Kicker

1 Left Contact Kicker A15838 used on this game

1 Right Contact Kick A15836 used on this game


GTB-A15838
GTB-A15836

$8.80ea
$8.80ea

Rollover Switch

Unsure how many are used on this game, maybe you can tell us!

GTB-B8535

$6.10ea

Hole Base Plate and Hole Switch Arm

1 White Hole Base GTB-C15707W



1 White Hole Switch Arm
GTB-C15708

GTB-C15707

GTB-C15708


$1.35ea

$1.35ea

Metal Hole Liner

GTB-A11151

$4.96ea

Hole Kicker/Ball Return Switch


1 used on this game

GTB-B16182

$3.60ea

Front Rest Hook / Support Bracket

2 used on this game

GTB-A11346

$1.60ea

Playboard Tilt Switch Assembly

1 used on this game

GTB-B9141

Out of Stock

Ball Gate

1 used on this game

GTB-A15550

Out of Stock

Documentation!

Part

Description

Part Number

Price


Target Alpha


Solar City


Canada Dry

Owners Manual
Target Alpha
Would be a copy!

Owners Manual
Solar City
Would be a copy!

Owners Manual
Canada Dry

NOS/Original

Manual
Target Alpha (Copy)


Manual
Solar City (Copy)


Manual
Canada Dry (NOS)

$4.40ea

Owners Schematic

Would be a copy!

Schematic
(Specify Game)
Target Alpha
or
Solar City
or
Canada Dry

$18.00ea



1978 Gottlieb® Parts Catalog

Spiral Bound Copy.
Covers games from Jungle Life/1973 Through Super Spin /1977

GTB-CAT-1978

$22.00ea

Pinball Machine Maintenance
By Henk De Jager

The best book in our opinion for fixing Multi-Player E/M games! This spiral bound book covers the repair and maintenance of Electro-Mechanical Pinball Machines from 1960-1977. It contains many tips and hints for the amateur. It has clear explanations with many schedules and illustrations. It provides step by step repair and replacement of components, with little knowledge of electronics required. It contains repairs for Gottlieb® along with Bally and Williams machines. This book contains 195 pages.

BK-PMM+


$37.95

Cabinet Parts



Lockdown Bar

Tabbed Lockdown bar!
Click On Thumbnail for actual Picture! Please ensure your lockdown bar has the 2 Tabs like in the picture and Not screws!

Lockdown Bar takes 2 feet of #BeerSeal $1.18 Per Foot
(Not Included)!

GTB-D16951

Out Of Stock



Flipper Buttons and Clear Straps



Metal Strap

Flipper Button
2 Flipper Buttons used
Red #B16680
2 White Start Bushing
#C13900

2 Clear Plastic Straps A13898+(Clear allows you to light the flipper buttons from inside the cabinet) These have protective covering on them that you need to peel off before installing.
or
2 Metal Straps A13898

GTB-B16680
GTB-C13900
GTB-A13898+
GTB-A13898

$1.81ea
$1.45ea
$0.98ea
$1.68ea

Flipper Button Cabinet Switches

There are 2 used on this game!

GTB-B17838+

$8.92ea





Ball Shooter Parts
(#B-8835)

Ball Shooter (Knob & Shaft) #A8833+
Barrel Spring #A347
Shooter Spring #A348
Trimplate #A8831+
Eyelet #A17596
Plate #A8829
Housing(Sleeve) #B8834
Retaining Ring #5133-37
Plunger Tip #RIN-PT
(Also included in Rubber Ring Kit)

Complete Assembly #B8835+

GTB-A8833+
GTB-A347
GTB-A348
GTB-A8831+
GTB-A17596
GTB-A8829
GTB-B8834
HWD-CRING38
RIN-PTW


GTB-B8835+

$12.17ea
$0.72ea
$0.52ea
$14.88ea
$0.25ea
$2.08ea
$2.10ea
$0.14ea
$0.30ea


$40.06ea







Legs
All 4 are 27”

LEG-27CA

$19.02per leg

Leg Levelers
4 2” used on game

LEG2

$1.00ea

Leg Bolts
8 Leg bolts used on game

LEGBOLT

$0.80ea

Head Bolts
4 Head Bolts and 4 Washers to attach backbox.

Bolt HDW-3/8X3-3/4

Washer HDW-3/8FEN-WA

HDW-3/8X3-3/4

HDW-3/8FEN-WA

$1.20ea

$0.24ea


Legs Tee
4 Used on this game

LEG-TEE

$1.29ea

Coin Door Lock 7/8"

LOCK

$6.93ea

Backbox Lock 7/8"

LOCK

$6.93ea

Red Coin Entrance Plate & Insert


Red Insert
#C16561 -Dummy
#C16562 - $0.10
#C16564 $0.05
#C16566+ -$0.25
#C16568 SBA
#C16563 – 5 Cents Australia


Labels

#A17657 2X$0.25 3 Plays
#A18320-1 1 Quarter 1 Play-2 Quarters 3 Plays


GTB-C16561
GTB-C16562
GTB-C16563
GTB-C16564
GTB-C16566+
GTB-C16568





GTB-A17657(Out Of Stock)
GTB-A18320-1(Out Of Stock)


Out Of Stock
Out of Stock
Out of Stock
$2.50ea
Out of Stock
Out of Stock





Out Of Stock
Out Of Stock


Chime Rubber Grommets
6 Used on this game!

GTB-2752

$0.47ea


Chime Nylon Washer
12 Used on this game!

GTB-104316E

$0.25ea


Chime Plunger
3 Used on this game!

GTB-A1487+

$3.40ea

Chime Bar
1 Used on this game! This is the shortest chime bar, 5 3/4”.

GTB-A12018

Out of Stock

Chime Rebuild Kit

For Solid State and E/M Games
Kit Includes:
6 X 2752 Chime Grommets
12 X Nylon Washer 104316E
3 X Long Bell Sleeve A5142
1 X Piece Beer Seal
4-3/4"Long(Cut to correct length -Different than original individual pieces)

KT-GCHIME-01

$7.50ea

Knocker Parts
1 Used on this game!


Assembly is B15463 -Commonly requested parts:
B15462 Bracket
A1487 Plunger
A15409 Bracket

If you need the complete assembly, we can build one for you,
$21.72ea

GTB-B15462
GTB-A1487+
GTB-A15409

$5.44ea
$3.40ea
$1.35ea

Replacement Power Cord
14' Foot

CORDSET-14

$10.70ea

Fuse Holder

FUS-HLDR

$3.00ea

Tilt Parts

Click on the Thumbnail for a larger picture!

Housing C10336
Switch B17543
Wire A15164
Push Nut PS-0904032
Strike Plate A358
Tilt Bob A356
Clip A14653


Tilt Ball is the same size as the one used in the game 1-1/16”

GTB-C10336
GTB-B17543
GTB-A15164
GTB-PS0904032
GTB-A358
GTB-A356
GTB-A14653

Out Of Stock
$3.75ea
$2.70ea
$0.25ea
$1.50ea
$2.60ea
$1.20ea

Instruction / Score Card Covers

#A16143 -Instruction Card
(*Note – Instruction covers are Gottlieb® NOS, but do have a Yellow tint to them!)

#A16142- Score Card

GTB-A16143
GTB-A16142

$0.85ea
Out of Stock

Lamps


#47 Lamps

Sold by the box, 10 to a box. Used on playfield and in backbox
(A better solution than #44 Lamps)

*Due to Covid-19 / Supply Chain Issues, brand of lamps may not be Eiko.

LAM0047A

$2.50PB

#455 Blinking Lamps

Sold by the box, 10 to a box.

LAM0455A

$10.00PB

Coils used on Tartget Alpha
*Note-All Of Our Coils Come With Sleeves
(Where Applicable)

Coil Usage

Flipper Coil

GTB-A5141

$15.00ea

Coil Usage

Chime

GTB-A5195

$10.00ea

Coil Usage

Scoring Unit

GTB-A15259

$10.00ea

Coil Usage

Relay's

GTB-A9740

$10.00ea

Coil Usage

Relay's

GTB-A9735
(Replaces A489)

$10.00ea

Coil Usage

Tilt Hold Relay
Hold Relay

GTB-A9738

$10.00ea

Coil Usage

Tilt Relay

GTB-A9742

$10.00ea

Coil Usage

Ball Return

GTB-A1496

$10.00ea

Coil Usage

Pop Bumpers

GTB-A4893

$10.00ea

Coil Usage

Kicking Rubbers
Knocker
Hole Kicker

GTB-A5194

$10.00ea

Coil Usage

Relay's

GTB-A5662

$10.00ea

Coil Usage

Drop Target Bank Reset
Substitute for A-5196

GTB-A15555

$15.00ea

Coil Usage

2nd Coins 3 Play
(Canada Dry Only)

GTB-C6698

$10.00ea

Coil Usage

Target Bank Reset
(50HZ)

GTB-A9479

$15.00ea

Coil Usage

Relay's

GTB-A9736

$10.00ea

Coil Usage

Relay's

GTB-A9746

$10.00ea

Top

Home Page

EMAIL PBR

How To Order

FAQ

Privacy Policy

©2004-2023 The Pinball Resource
